Front passenger seat occupied recognition, component description - GF91.60-P-4112CW
MODEL 204.0 /2 except CODE (U18) Automatic child seat recognition (ACSR) except CODE (494) USA version up to Model Year 8

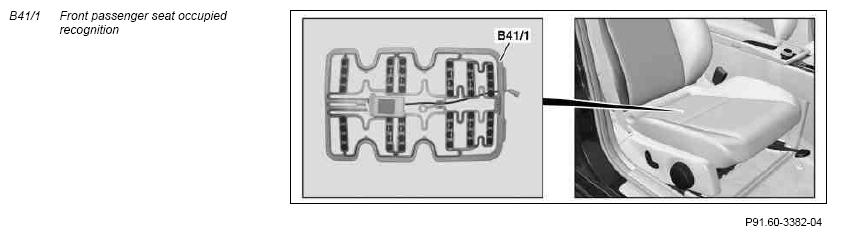

Location
The front passenger seat occupied recognition is located in the seat cushion of the front passenger seat.
Task
The front passenger seat occupied recognition detects the current occupation status of the front passenger seat.
The front passenger seat occupied recognition is read in by the supplemental restraint system control unit (N2/10).
