Front passenger airbag component description - GF91.60-P-4038CW
MODEL 204.0 /2 up to Model Year 8
Illustrated on model 204.0

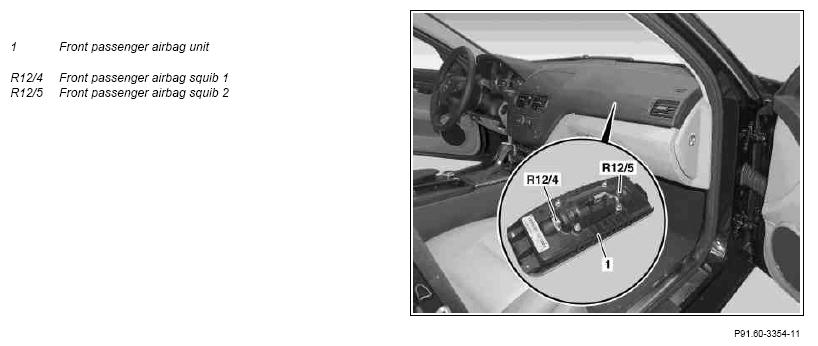

Location
The airbag unit is located underneath the dashboard above the glove compartment.
Task
The front passenger is protected from injury in the event of a frontal impact by the airbag unit.
The airbag unit is activated in two stages, which permits a controllable deployment. Triggering is conducted by the supplemental restraint system control unit (N2/10) igniting the squibs.
