Driver/passenger sidebag, component description - GF91.60-P-4039CW

MODEL 204.0 /2 up to Model Year 8

Illustrated on model 204.0

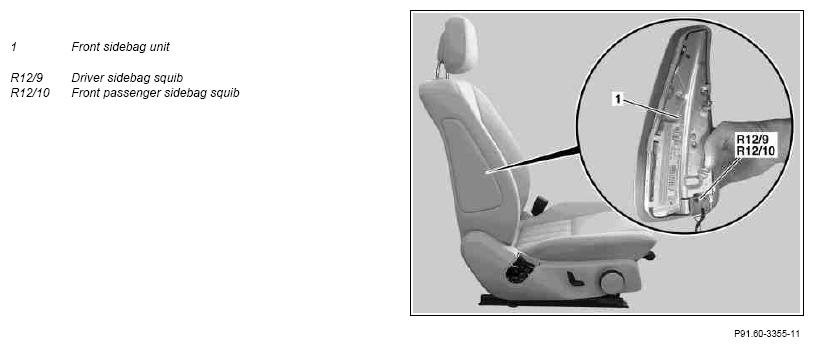

Fig 1: Identifying Driver/Passenger Sidebag Components

Courtesy of MERCEDES-BENZ USA

Location

The sidebag units are located in the outboard side of the driver and front passenger seat backrests.

Task

If a side impact occurs in the door and B-pillar area, the sidebag units protect the driver or the front passenger from injury.

Triggering is conducted by the supplemental restraint system control unit (N2/10) igniting the particular squib.
