Driver airbag component description - GF91.60-P-4037CW
MODEL 204.0 /2 up to Model Year 8

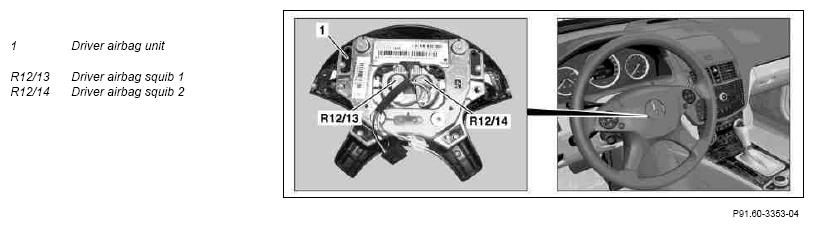

Illustrated on model 204.0
Location
The airbag unit is installed in the steering wheel.
Task
The driver is protected from injury in the event of a frontal impact by the airbag unit.
The airbag unit is activated in two stages, which permits a controllable deployment. Triggering is conducted by the supplemental restraint system control unit (N2/10) igniting the squibs.
