Belt tension sensor, component description - GF91.60-P-4108CWU
MODEL 204.0 with CODE (494) USA version up to Model Year 8

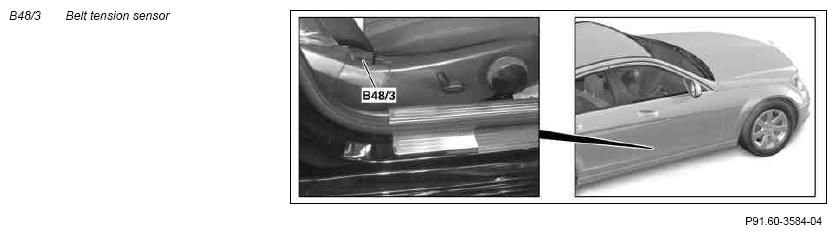

Location
The belt tension sensor is located on the front passenger seat belt end fitting.
Task
The belt tension sensor measures the tension of the belt.
The belt tension is used by the Weight Sensing System (WSS) control unit (N110) as a correction factor for weight classification.
