Seat adjustment switch group component description - GF91.29-P-5206CWA
MODEL 204.0 except CODE (275) Memory package (driver seat, steering column, mirrors) with CODE (494) USA version with CODE (460) Canada version up to Model Year 8

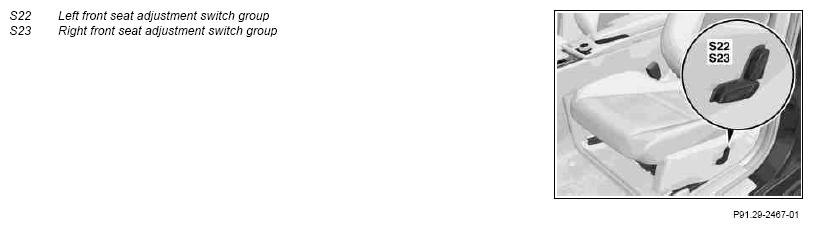

Location
The seat adjustment switch group is located on the outside of the relevant front seat.
Task
The seat adjustment switch groups are used to set the longitudinal seat position, the seat height, the seat inclination and the backrest inclination.
Function
The seat adjustment switch groups are supplied with power by the rear SAM control unit with fuse and relay module (N10/2). If the seat adjustment switch group is operated, the voltage is directly switched through.
