Partially electric seat adjustment switch component description - GF91.29-P-5207CW
MODEL 204.0 /2 except CODE (275) Memory package (driver seat, steering column, mirrors) except CODE (494) USA version except CODE (460) Canada version up to Model Year 8

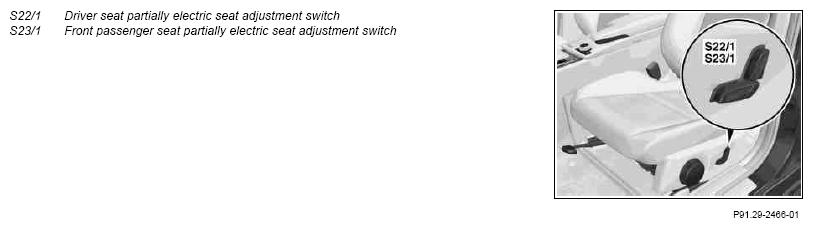

Location
The partially electric seat adjustment switches are located on the outside of the relevant front seat.
Task
The partially electric seat adjustment switches are used to adjust the seat height and the backrest inclination.
Function
The partially electric seat adjustment switches are supplied with power by the rear SAM control unit with fuse and relay module (N10/2). If the relevant partially electric seat adjustment switch is operated, the voltage is directly switched through.
