PRE-SAFE, location of components - GF91.40-P-0001-01CW

MODEL 204.0 /2 with CODE (299) PRE-SAFE up to Model Year 8

Illustrated on model 204.0

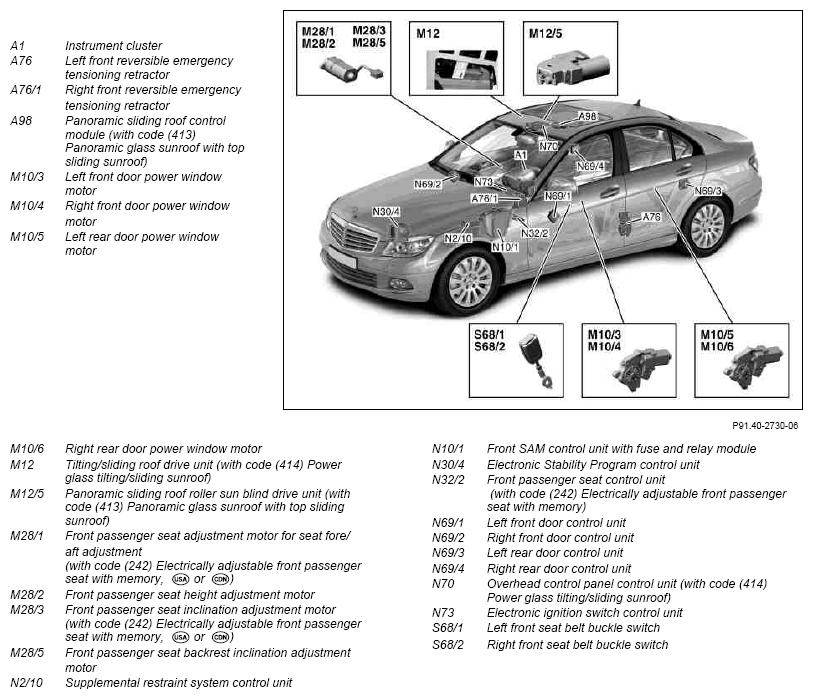

Fig 1: Locating Pre-Safe Components

Courtesy of MERCEDES-BENZ USA
