PRE-SAFE, block diagram - GF91.40-P-0001-03CW

MODEL 204.0 /2 with CODE (299) PRE-SAFE up to Model Year 8

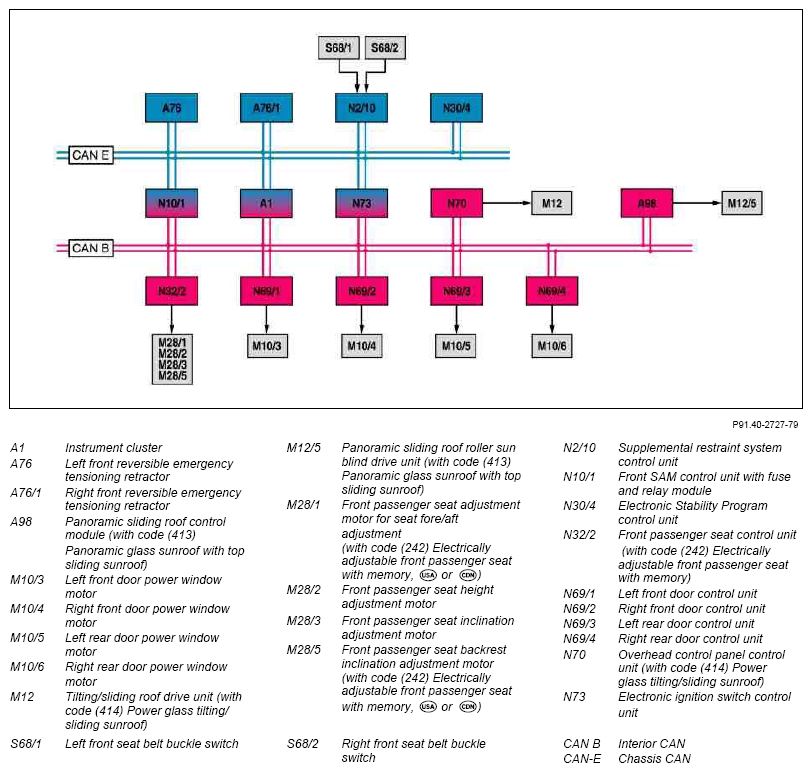

Fig 1: PRE-SAFE Block Diagram
G07532406Courtesy of MERCEDES-BENZ USA
