Overview of system components, electric seats - GF91.29-P-9992CE
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3 /9

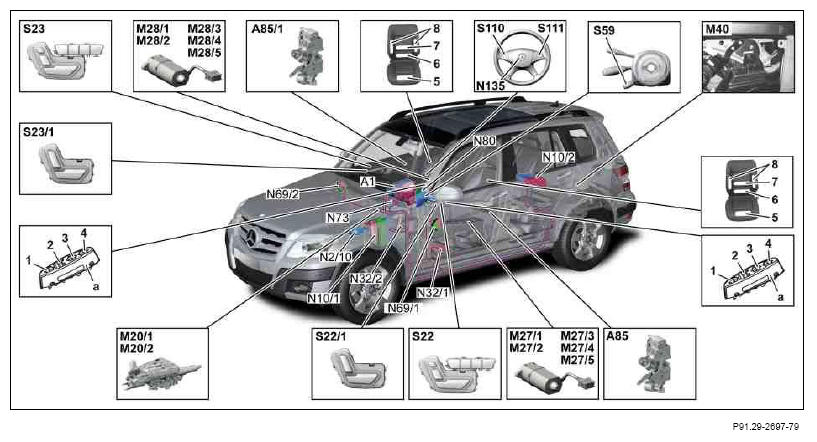

Electrical seat adjustment (ESA [ESE]) (without code (275) Memory package (driver seat, steering column, mirror)
Illustrated on model 204.9
Electrical seat adjustment (ESE) (with code (275) Memory package (driver seat, steering column, mirror) and code (242) Electrically adjustable front passenger seat with memory), shown on model 204.9
Multicontour seat (MKS) (with code (409) Left/right multicontour seats), shown on model 204.9

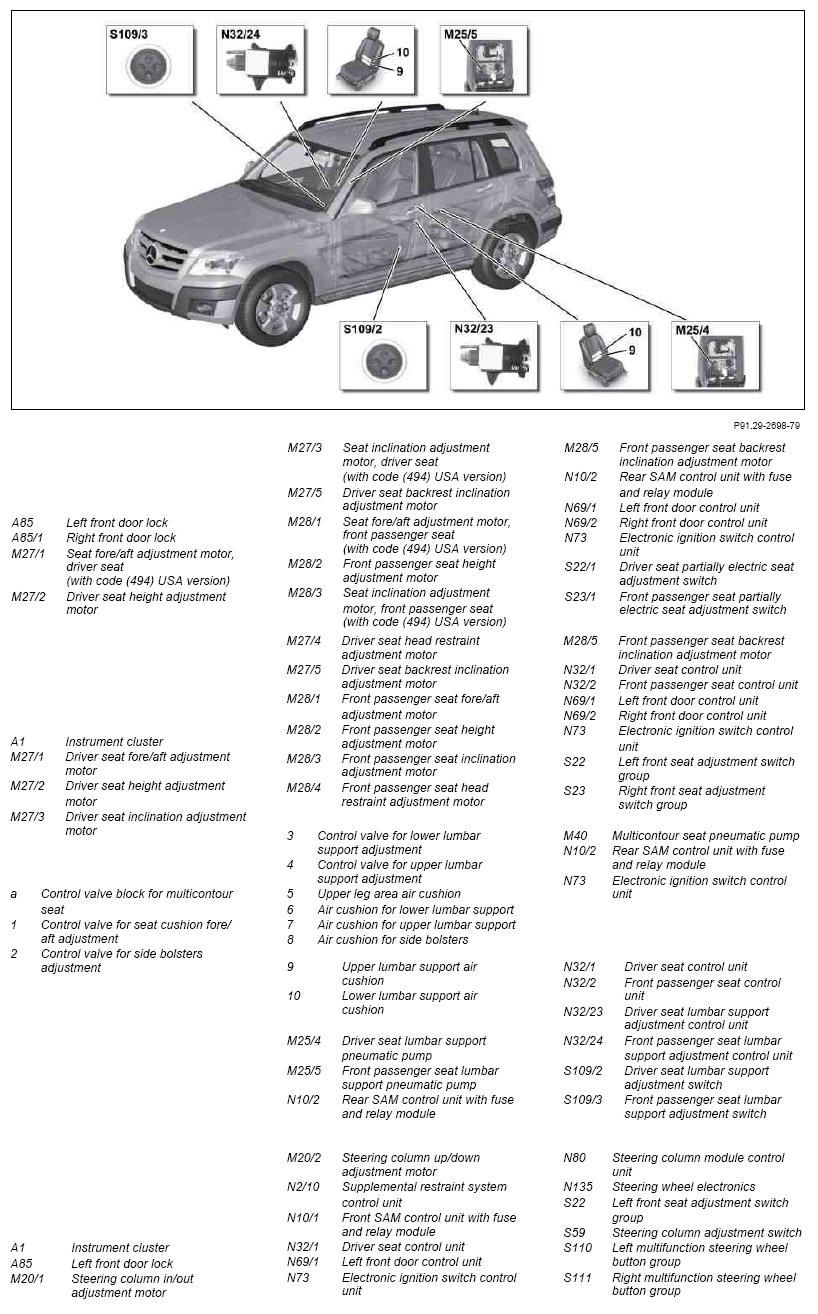

Lumbar support adjustment function (model 204.0/2 as of 1.6.09 with code (275) Memory package (driver seat, steering column, mirror) and code (242) Electrically adjustable front passenger seat with memory, model 204.3/9 with code (275) Memory package (driver seat, steering column, mirror) and code (242) Electrically adjustable front passenger seat with memory), shown on model 204.9
Electrically adjustable steering column (ESC [EVL]) (with code (275) Memory package (driver seat, steering column, mirrors)), Illustrated on model 204.9
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for supplemental restraint system control unit | N2/10 | GF91.60-P-4068CE | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for driver seat control unit | N32/1 With code (275) Memory package (driver seat, steering column, mirrors) |
GF91.29-P-5231CE | |
| Component description for front passenger seat control unit | N32/2 With code (242) Electrically adjustable front passenger seat with memory |
GF91.29-P-5241CE | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CE | |
| Lumbar support adjusting facility control unit, component description | N32/23, N32/24 Model 204.0/2 as of 1.6.09 with code (275) Memory package (driver seat, steering column, mirror) or code (242) Electrically adjustable front passenger seat with memory, Model 204.3/9 with code (275) Memory package (driver seat, steering column, mirror) or code (242) Electrically adjustable front passenger seat with memory |
GF91.29-P-5273GD | |
| Table of contents for function description of electric seats | GF91.29-P-0992CE |
