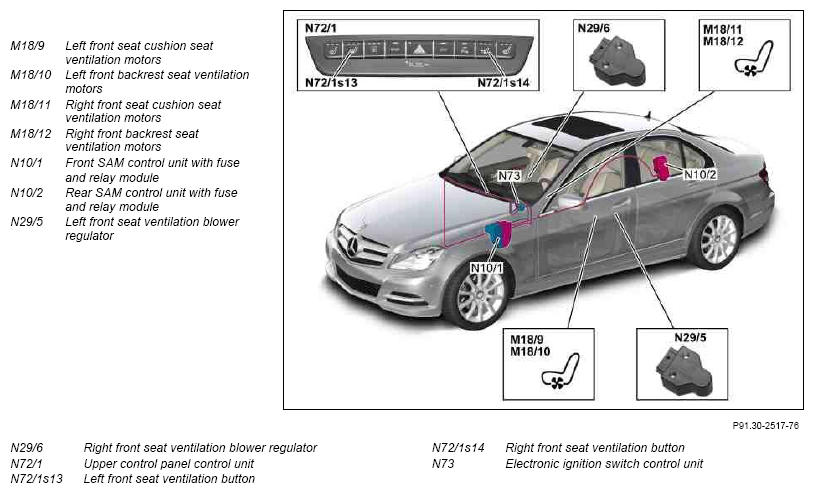

Overview of seat ventilation system components - GF91.30-P-9993CE
MODEL 204 with CODE (401) Front comfort seats, incl. seat heating and seat ventilation
Shown on model 204.0
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Electronic seat ventilation function description, table of contents | GF91.30-P-0997CE |
