Overview of comfort heater system components - GF91.30-P-9990CE
MODEL 204.0 /2 with CODE (873) Heated left and right front seats as of model year 2009 /YoM 08
MODEL 204.3 with CODE (873) Left and right front seat heaters
MODEL 204.9 with CODE (873) Left and right front seat heaters

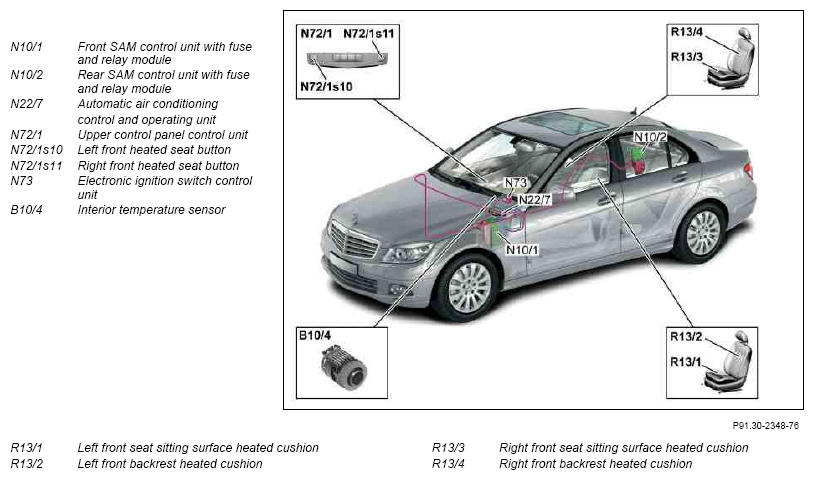

Shown on model 204.0
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for automatic air conditioning control and operating unit | N22/7 Without code (581) Comfort automatic air conditioning |
GF83.40-P-3000CEA | |
| With code (581) Comfort automatic air conditioning | GF83.40-P-3000CEB | ||
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Table of contents for comfort heater function description | GF91.30-P-0999CE |
