Heated seats (SIH) location of components - GF91.30-P-0003-02CW

MODEL 204.0 /2 with CODE (873) Heated left and right front seats up to Model Year 8

Illustrated on model 204.0

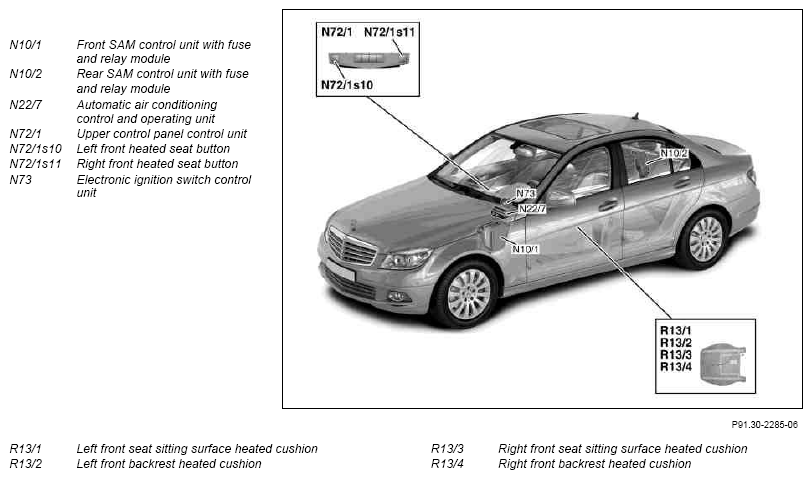

Fig 1: Locating Heated Seats Components

Courtesy of MERCEDES-BENZ USA
