Heated seats (HS) block diagram - GF91.30-P-0003-03CW

MODEL 204.0 /2 with CODE (873) Heated left and right front seats up to Model Year 8

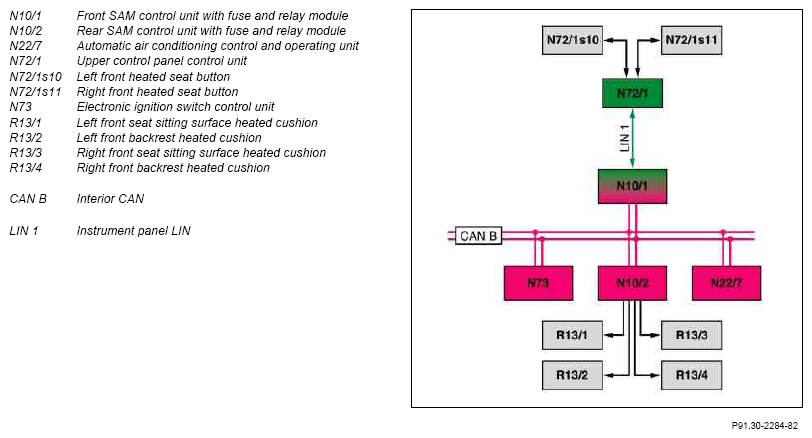

Fig 1: Heated Seats Block Diagram
G07532399Courtesy of MERCEDES-BENZ USA
