Electric seat adjustment (ESA [ESV]), location of components (except CODE 275) - GF91.29-P-0004-01CW

MODEL 204.0 /2 except CODE (275) Memory package (driver seat, steering column, mirrors) up to Model Year 8

Illustrated on model 204.0

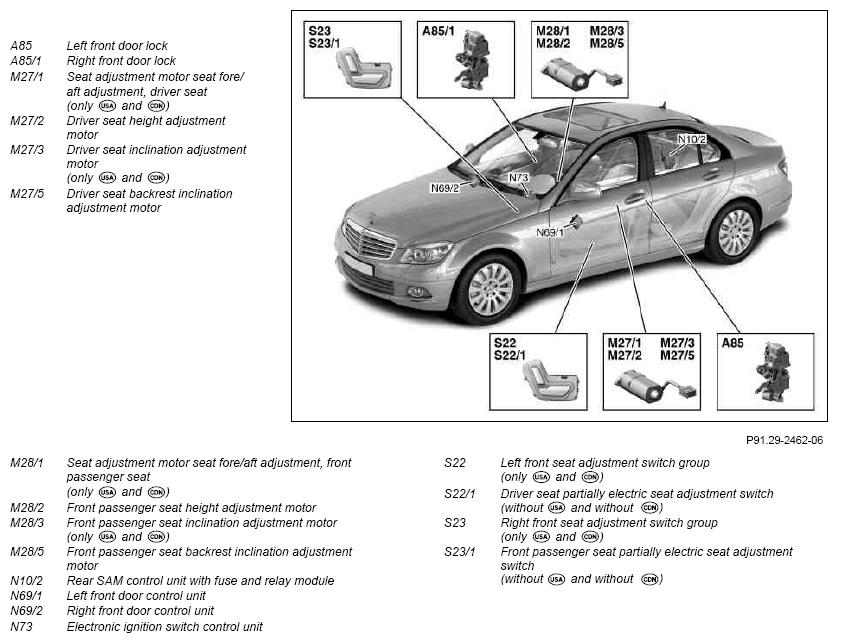

Fig 1: Locating Electric Seat Adjustment Components

Courtesy of MERCEDES-BENZ USA
