Block diagram of electric seat adjustment (except CODE 275) - GF91.29-P-0004-03CW

MODEL 204.0 /2 except CODE (275) Memory package (driver seat, steering column, mirrors) up to Model Year 8

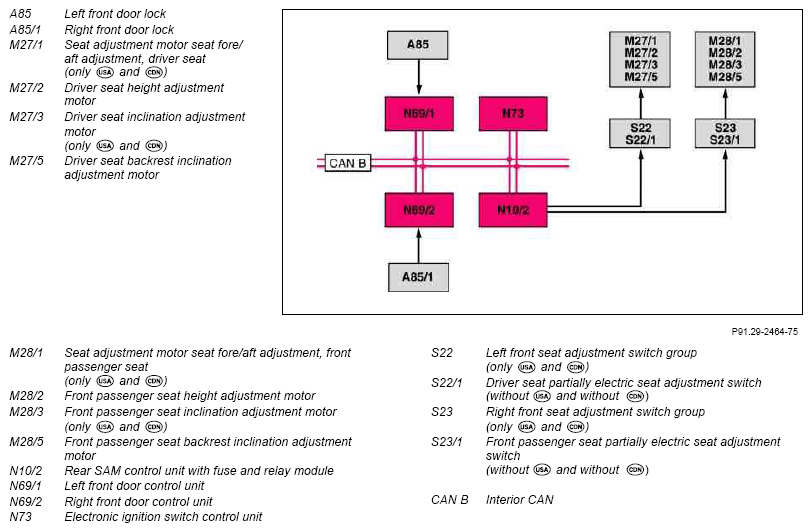

Fig 1: Electric Seat Adjustment Block Diagram
G07532377Courtesy of MERCEDES-BENZ USA
