Electrical function schematic, trigger immediate mode - PE83.70-P-2059-97FAA

Code: Designation: Position:
1 Circuit 15, status 8E
2 Stationary heater button, status 9E
2 Stationary heater button, status 14H
2 Stationary heater button, status 14D
3 Heating/ventilation, status 13D
3 Heating/ventilation, status 9E
4 Stationary heater radio remote control transmitter, status 3K
4 Stationary heater radio remote control transmitter, status 2H
4 Stationary heater radio remote control transmitter, status 4F
4 Stationary heater radio remote control transmitter, status 7F
5 Stationary heater status indication, request 12F
5 Stationary heater status indication, request 14K
6 Stationary heater control unit, message 2J
6 Stationary heater control unit, message 5K
6 Stationary heater control unit, message 3F
6 Stationary heater control unit, message 6F
7 Interior temperature sensor, signal 15D
7 Interior temperature sensor, signal 15B
7 Interior temperature sensor, signal 15A
8 Outside temperature sensor, signal 12G
8 Outside temperature sensor, signal 14D
9 Start heating/ventilation, signal 9E
10 Fuel pump, actuation 9H
11 Stationary heater switchover valve, actuation 7H
12 Coolant circulation pump, request 14E
13 Coolant circulation pump, actuation 15H
14 Blower motor, request 16C
15 Blower motor, actuation 18C
16 Fuel level, signal 14F
16 Fuel level, signal 9F
A1 Instrument cluster 17F
A2/53 Mobile phone and stationary heater radio remote control antenna splitter 2G
A28/11 Multifunction antenna 2L
A32m1 Blower motor 18C
A32n1 Blower regulator 16C
A6/1 Stationary heater radio remote control receiver 5F
A6n1 Stationary heater control unit 8E
A8/3 Stationary heater radio remote control transmitter 6K
B10/4 Interior temperature sensor 22C
B14 Outside temperature sensor 11J
CAN B Interior CAN 10F
CAN B Interior CAN 10D
CAN B Interior CAN 17D
CAN B Interior CAN 13D
CAN B Interior CAN 8D
CAN E Chassis CAN 15F
Code 580 Automatic air conditioning 12A
Code 581 Comfort automatic air conditioning 12A
LIN 1 Instrument panel LIN 13J
M13/5 Coolant circulation pump 15J
N10/1 Front SAM control unit with fuse and relay module 13E
N22/7 Automatic air conditioning control and operating unit 13B
N70 Overhead control panel control unit 20D
N70/3 Overhead control panel electronics 20H
N70/3b1 Interior temperature sensor with integrated fan 21H
N70b1 Interior temperature sensor with integrated fan 21D
N72/1 Upper control panel control unit 13K
N72/1s30 Stationary heater button 12K
N73 Electronic ignition switch control unit 8B
U110 Valid for overhead control panel with CAN 19D
U111 Valid for overhead control panel without CAN 19H
U260 Valid for comfort telephony 1E
Y16 Stationary heater switchover valve 7J
Y23 Stationary heater fuel pump 9J

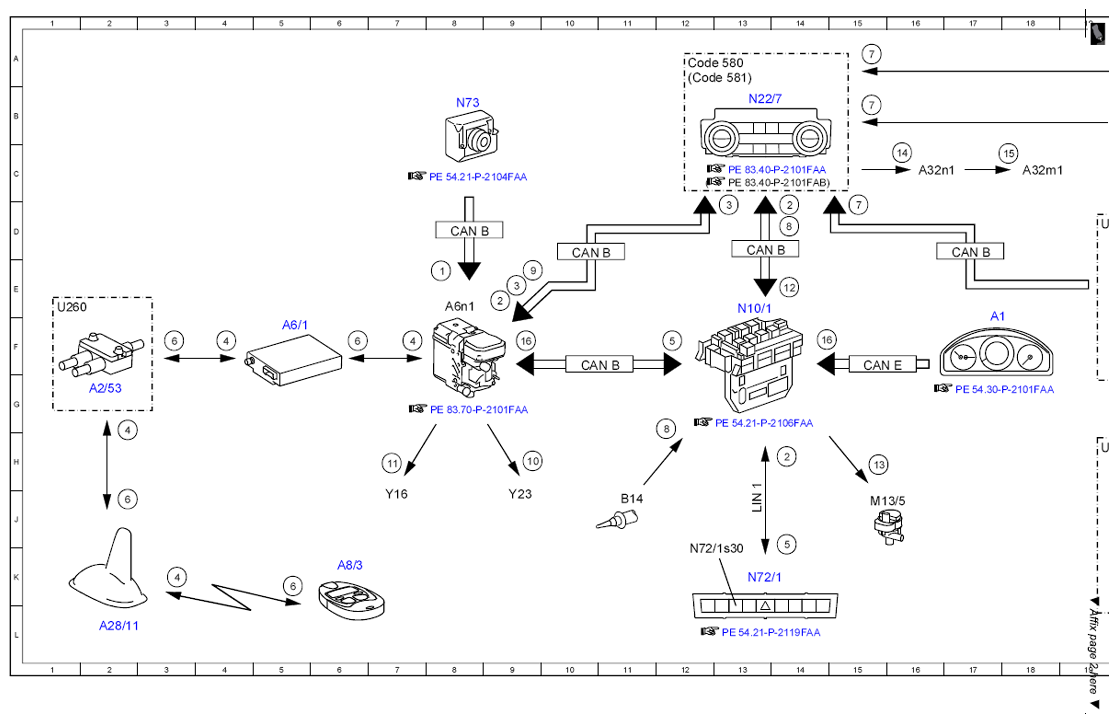

Fig 1: Trigger Immediate Mode - Electrical Function Schematic (1 Of 2)
G07532237Courtesy of MERCEDES-BENZ USA

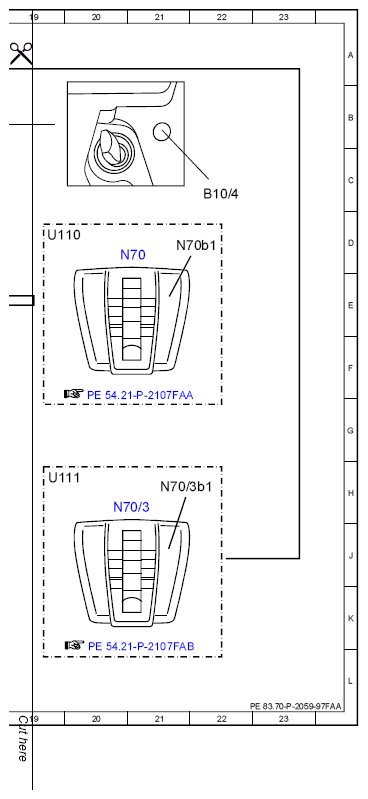

Fig 2: Trigger Immediate Mode - Electrical Function Schematic (2 Of 2)
G07532238Courtesy of MERCEDES-BENZ USA
