| 1 |
Circuit 15, status |
5F |
| 2 |
Heating duration, request |
10B |
| 3 |
Interior temperature sensor, signal |
14D |
| 3 |
Interior temperature sensor, signal |
14B |
| 3 |
Interior temperature sensor, signal |
14A |
| 4 |
Outside temperature sensor, signal |
13F |
| 4 |
Outside temperature sensor, signal |
12D |
| 5 |
Heating duration, signal |
7B |
| 6 |
Start heating/ventilation, signal |
6E |
| 7 |
Heating/ventilation, status |
7E |
| 7 |
Heating/ventilation, status |
11D |
| 8 |
Departure time menu, message |
6C |
| 9 |
Stationary heater status indication, request |
12K |
| 9 |
Stationary heater status indication, request |
11F |
| 10 |
Heat, request |
7E |
| 11 |
Fuel pump, actuation |
7H |
| 12 |
Stationary heater switchover valve, actuation |
5H |
| 13 |
Coolant circulation pump, request |
12E |
| 14 |
Coolant circulation pump, actuation |
15G |
| 15 |
Blower motor, request |
15C |
| 16 |
Blower motor, actuation |
17C |
| 17 |
Fuel level, signal |
7F |
| 17 |
Fuel level, signal |
11G |

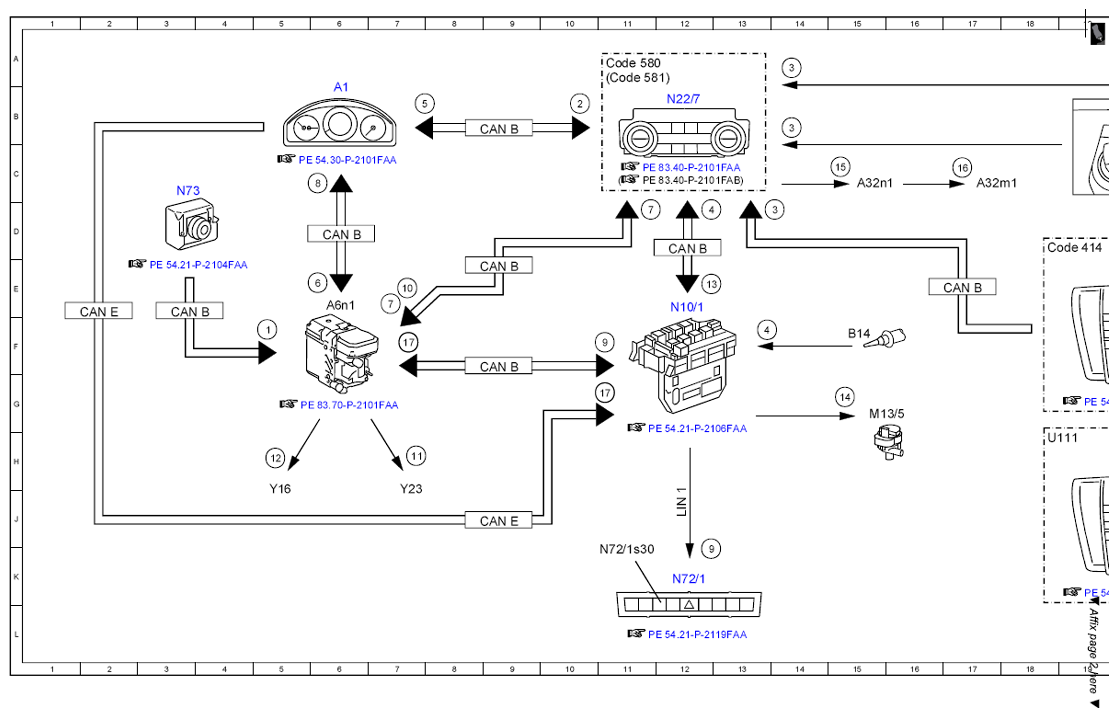

| A1 |
Instrument cluster |
6B |
| A32m1 |
Blower motor |
17C |
| A32n1 |
Blower regulator |
15C |
| A6n1 |
Stationary heater control unit |
6E |
| B10/4 |
Interior temperature sensor |
21C |
| B14 |
Outside temperature sensor |
15F |
| CAN B |
Interior CAN |
17E |
| CAN B |
Interior CAN |
9F |
| CAN B |
Interior CAN |
9B |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
6D |
| CAN B |
Interior CAN |
12D |
| CAN B |
Interior CAN |
3E |
| CAN E |
Chassis CAN |
2E |
| CAN E |
Chassis CAN |
9J |
| Code 414 |
Electric glass tilting/sliding roof |
18D |
| Code 580 |
Automatic air conditioning |
11A |
| Code 581 |
Comfort automatic air conditioning |
11A |
| LIN 1 |
Instrument panel LIN |
12J |
| M13/5 |
Coolant circulation pump |
15G |
| N10/1 |
Front SAM control unit with fuse and relay module |
12E |
| N22/7 |
Automatic air conditioning control and operating unit |
12B |
| N70 |
Overhead control panel control unit |
19E |
| N70/3 |
Overhead control panel electronics |
19H |

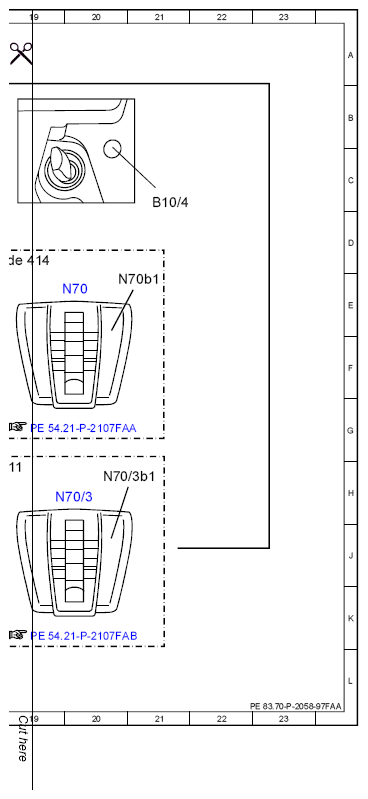

| N70/3b1 |
Interior temperature sensor with integrated fan |
20H |
| N70b1 |
Interior temperature sensor with integrated fan |
20E |
| N72/1 |
Upper control panel control unit |
12K |
| N72/1s30 |
Stationary heater button |
11K |
| N73 |
Electronic ignition switch control unit |
3C |
| U111 |
Valid for overhead control panel without CAN |
18H |
| Y16 |
Stationary heater switchover valve |
5J |
| Y23 |
Stationary heater fuel pump |
7J |
