Electrical function schematic, programming departure time - PE83.70-P-2057-97FAA

Code:	Designation:	Position:
1	Terminal 15R, Status	9E
2	Display menu departure time, request	17F
2	Display menu departure time, request	21G
2	Display menu departure time, request	13F
2	Display menu departure time, request	20J
3	Recruitment / activation time of departure time, signal	3G
3	Recruitment / activation time of departure time, signal	5F
3	Recruitment / activation time of departure time, signal	8F
3	Recruitment / activation time of departure time, signal	10F
3	Recruitment / activation time of departure time, signal	17F
3	Recruitment / activation time of departure time, signal	21H
3	Recruitment / activation time of departure time, signal	20J
3	Recruitment / activation time of departure time, signal	4J
4	Receiver remote control heater, message	3H
4	Receiver remote control heater, message	6K
4	Receiver remote control heater, message	4F
5	Capitalized departure time, message	13F
A1	instrument cluster	15E
A2/53	Combiner mobile phone and wireless remote control heater	2F
A28/11	Combined antenna	2K
A6/1	Receiver remote control heater	6E
A6n1	Control unit heater	9E
A8/3	Auxiliary heating remote control transmitter	7J
CAN B	Interior CAN	12F
CAN B	Interior CAN	9D
CAN E	LG CAN	18F
LIN E1	Steering LIN	21H
N135	Steering Wheel	21J
N73	Electronic ignition switch control unit	9B
N80	Control unit casing module	21E
S110	Key group multifunction steering wheel left	17H
U260	Valid for convenience telephone	2E

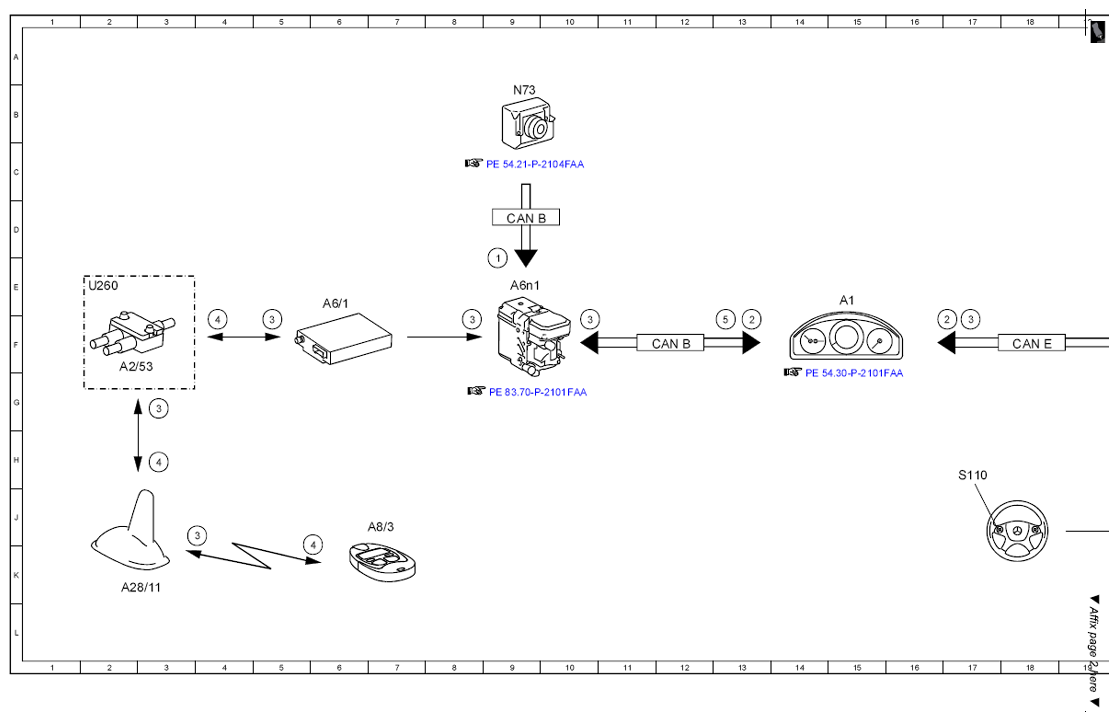

Fig 1: Programming Departure Time - Electrical Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

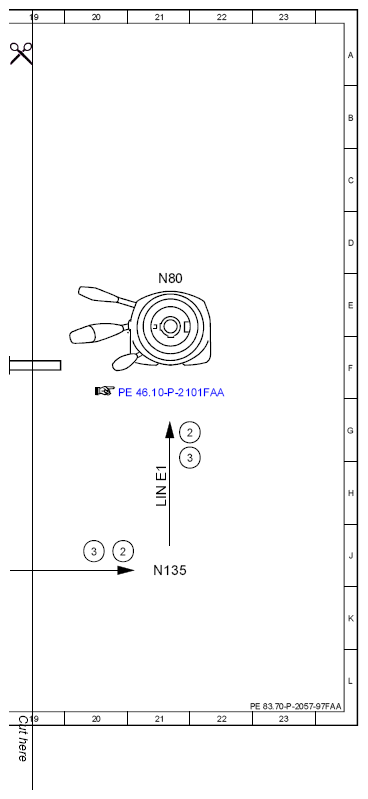

Fig 2: Programming Departure Time - Electrical Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
