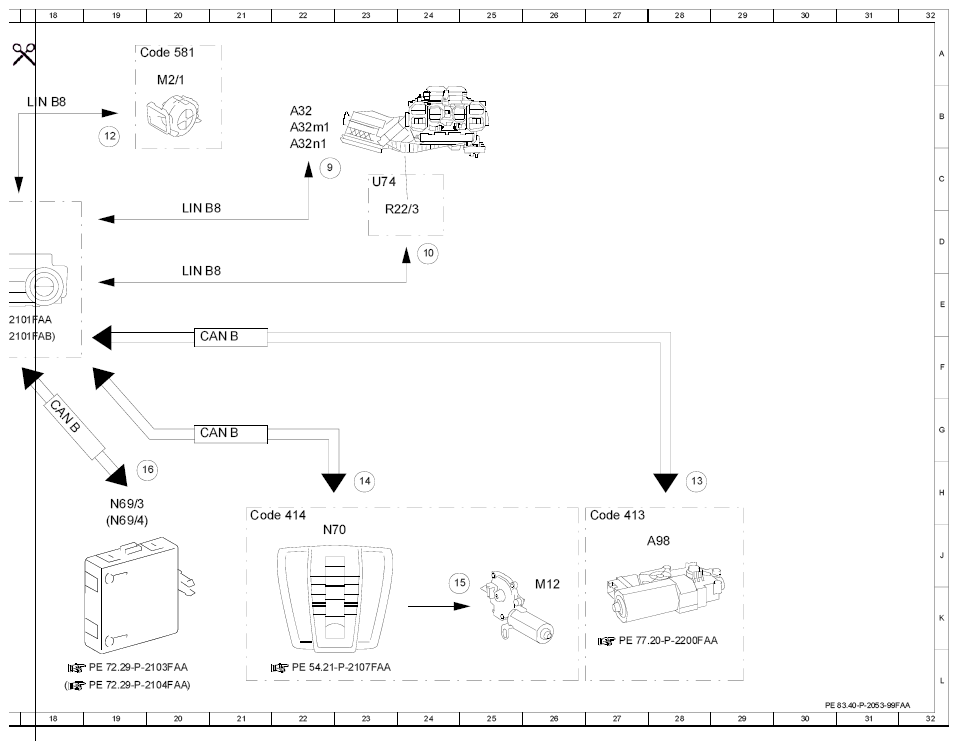

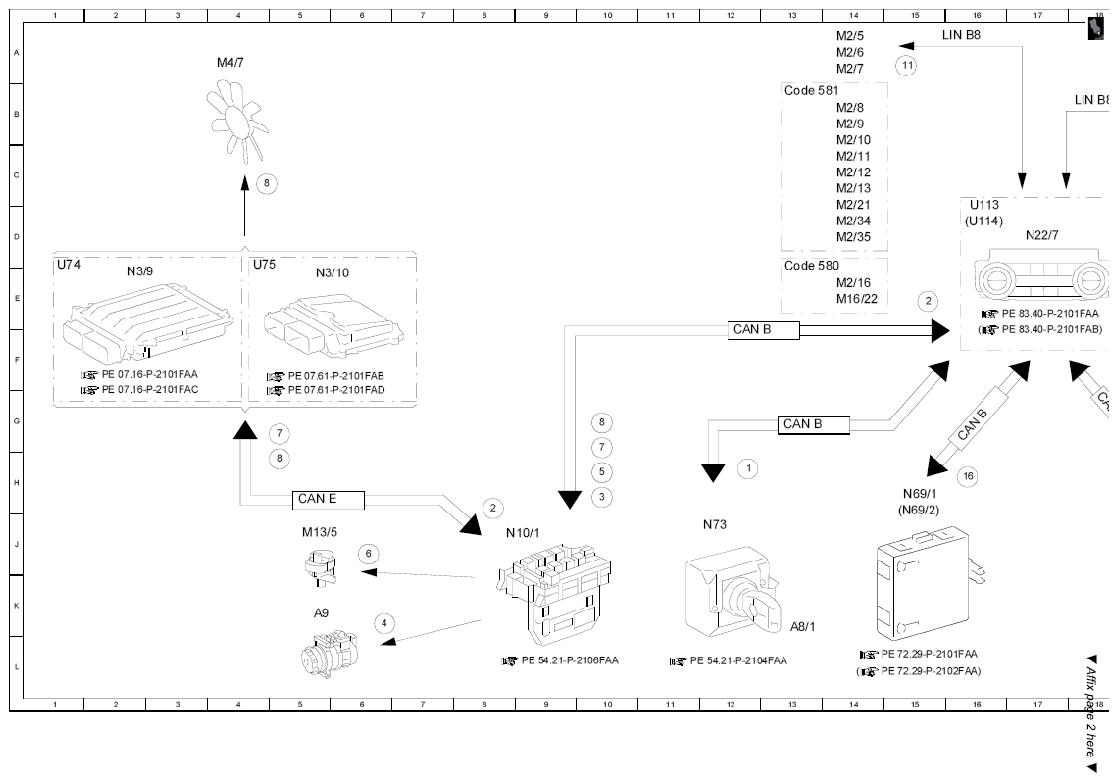

| 1 |
Circuit 15, status |
12H |
| 2 |
Circuit 61, status |
8J |
| 2 |
Circuit 61, status |
15E |
| 3 |
Refrigerant compressor, request |
10H |
| 4 |
Refrigerant compressor, actuation |
6K |
| 5 |
Coolant circulation pump, request |
10H |
| 6 |
Coolant circulation pump, actuation |
6J |
| 7 |
Idle speed increase, request |
5G |
| 7 |
Idle speed increase, request |
10H |
| 8 |
Fan motor, request |
4C |
| 8 |
Fan motor, request |
5H |
| 8 |
Fan motor, request |
10G |
| 9 |
Blower motor, actuation |
22C |
| 10 |
PTC heater booster, actuation |
24D |
| 11 |
Actuator motors, actuation |
15A |
| 12 |
Rear blower motor, actuation |
19B |
| 13 |
Panoramic sliding sunroof motor, request |
28H |
| 14 |
Tilting/sliding roof motor, request |
23H |
| 15 |
Tilting/sliding roof motor, actuation |
24K |
| 16 |
Power window motor, request |
16H |
| 16 |
Power window motor, request |
19H |
| A32 |
AC housing |
22B |
| A32m1 |
Blower motor |
22B |
| A32n1 |
Blower regulator |
22C |
| A8/1 |
Transmitter key |
13L |
| A9 |
Refrigerant compressor |
5K |
| A98 |
Panoramic sliding roof control module |
27J |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
13G |
| CAN B |
Interior CAN |
16G |
| CAN B |
Interior CAN |
18G |
| CAN B |
Interior CAN |
20G |
| CAN B |
Interior CAN |
20F |
| CAN E |
Chassis CAN |
5H |
| Code 413 |
Panoramic sliding sunroof |
27J |
| Code 414 |
Electric glass tilting/sliding roof |
21J |
| Code 580 |
Automatic air conditioning |
13E |
| Code 581 |
Comfort automatic air conditioning |
13B |
| Code 581 |
Comfort automatic air conditioning |
19A |
| LIN B8 |
Climate control LIN |
15A |
| LIN B8 |
Climate control LIN |
18B |
| LIN B8 |
Climate control LIN |
20E |
| LIN B8 |
Climate control LIN |
20D |
| M12 |
Tilting/sliding roof drive unit |
26K |
| M13/5 |
Coolant circulation pump |
5J |
| M16/22 |
Air distribution flap actuator motor |
14E |
| M2/1 |
Rear blower motor |
20B |
| M2/10 |
Left footwell flap actuator motor |
14C |
| M2/11 |
Right footwell flap actuator motor |
14C |
| M2/12 |
Left center air outlet flap actuator motor |
14C |
| M2/13 |
Right center air outlet flap actuator motor |
14C |
| M2/16 |
Defroster vent flap actuator motor |
14E |
| M2/21 |
Diffuse flap actuator motor |
14D |
| M2/34 |
Ram air flap actuator motor |
14D |
| M2/35 |
Rear blend air flap actuator motor |
14D |
| M2/5 |
Fresh air/air recirculation flap actuator motor |
14A |
| M2/6 |
Left blending air flap actuator |
14A |
| M2/7 |
Right blending air flap actuator |
14A |
| M2/8 |
Left defroster vent flap actuator motor |
14B |
| M2/9 |
Right defroster vent flap actuator motor |
14B |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
8J |
| N22/7 |
Automatic air conditioning control and operating unit |
17D |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| N3/9 |
CDI control unit |
2E |
| N69/1 |
Left front door control unit |
15H |
| N69/2 |
Right front door control unit |
15J |
| N69/3 |
Left rear door control unit |
19H |
| N69/4 |
Right rear door control unit |
19J |
| N70 |
Overhead control panel control unit |
22J |
| N73 |
Electronic ignition switch control unit |
12J |
| R22/3 |
PTC heater booster |
23D |
| U113 |
Valid for 2-zone THERMATIC |
16D |
| U114 |
Valid for 3-zone THERMOTRONIC |
16D |
| U74 |
Valid for diesel engines |
1E |
| U74 |
Valid for diesel engines |
23C |
| U75 |
Valid for gasoline engines |
4E |
