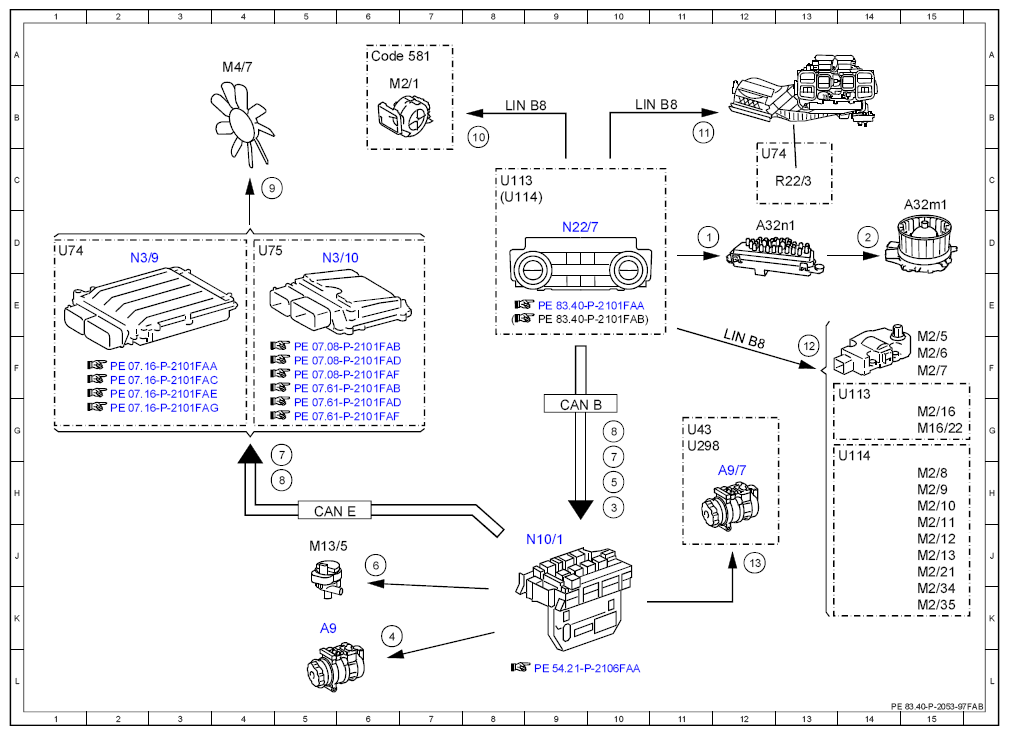

| 1 |
Blower motor, request |
11D |
| 2 |
Blower motor, actuation |
14D |
| 3 |
Refrigerant compressor, request |
10H |
| 4 |
Refrigerant compressor, actuation |
6K |
| 5 |
Coolant circulation pump, request |
10H |
| 6 |
Coolant circulation pump, actuation |
6J |
| 7 |
Idle speed increase, request |
5G |
| 7 |
Idle speed increase, request |
10G |
| 8 |
Fan motor, request |
5H |
| 8 |
Fan motor, request |
10G |
| 9 |
Fan motor, actuation |
4C |
| 10 |
Rear blower motor, actuation |
8B |
| 11 |
PTC heater booster, actuation |
11B |
| 12 |
Actuator motors, actuation |
13F |
| 13 |
Solenoid valve, actuation |
12J |
| A32m1 |
Blower motor |
15C |
| A32n1 |
Blower regulator |
12D |
| A9 |
Refrigerant compressor |
5K |
| A9/7 |
Refrigerant compressor with magnetic clutch |
12H |
| CAN B |
Interior CAN |
9G |
| CAN E |
Chassis CAN |
5H |
| Code 581 |
Comfort automatic air conditioning |
6A |
| LIN B8 |
Climate control LIN |
8B |
| LIN B8 |
Climate control LIN |
10B |
| LIN B8 |
Climate control LIN |
12F |
| M13/5 |
Coolant circulation pump |
5J |
| M16/22 |
Air distribution flap actuator motor |
15G |
| M2/1 |
Rear blower motor |
6B |
| M2/10 |
Left footwell flap actuator motor |
15H |
| M2/11 |
Right footwell flap actuator motor |
15J |
| M2/12 |
Left center air outlet flap actuator motor |
15J |
| M2/13 |
Right center air outlet flap actuator motor |
15J |
| M2/16 |
Defroster vent flap actuator motor |
15G |
| M2/21 |
Diffuse flap actuator motor |
15J |
| M2/34 |
Ram air flap actuator motor |
15K |
| M2/35 |
Rear blend air flap actuator motor |
15K |
| M2/5 |
Fresh air/air recirculation flap actuator motor |
15F |
| M2/6 |
Left blending air flap actuator |
15F |
| M2/7 |
Right blending air flap actuator |
15F |
| M2/8 |
Left defroster vent flap actuator motor |
15H |
| M2/9 |
Right defroster vent flap actuator motor |
15H |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
9J |
| N22/7 |
Automatic air conditioning control and operating unit |
9D |
| N3/10 |
ME-SFI [ME] control unit |
5D |
| N3/9 |
CDI control unit |
2D |
| R22/3 |
PTC heater booster |
13C |
| U113 |
Valid for 2-zone THERMATIC |
13F |
| U113 |
Valid for 2-zone THERMATIC |
8C |
| U114 |
Valid for 3-zone THERMOTRONIC |
8C |
| U114 |
Valid for 3-zone THERMOTRONIC |
13G |
| U298 |
Valid for model designation 204.002/202 |
11G |
| U43 |
Valid for ECE |
11G |
| U74 |
Valid for diesel engines |
1D |
| U74 |
Valid for diesel engines |
12C |
| U75 |
Valid for gasoline engines |
4D |
