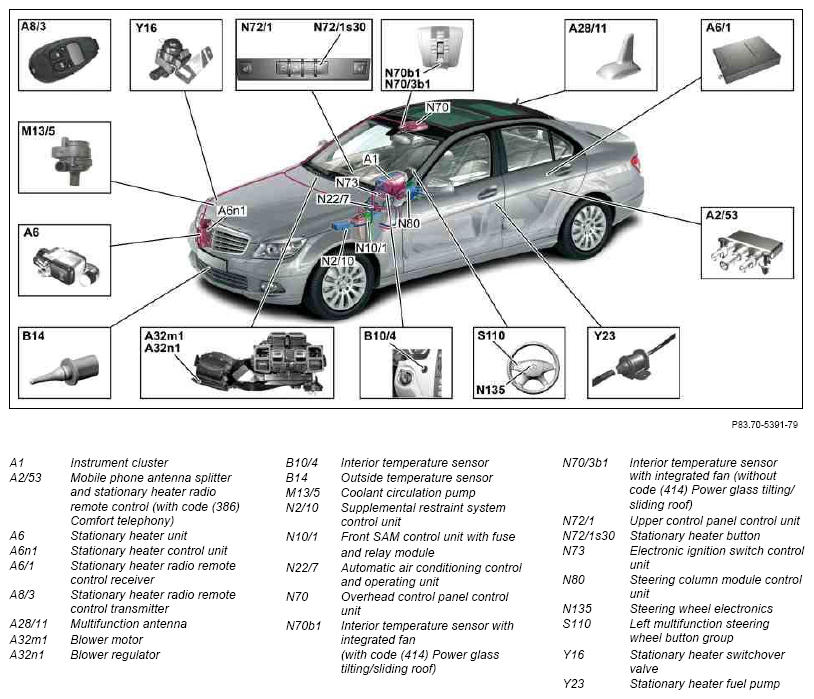

Overview of system components for stationary heater (STH) - GF83.70-P-9996CE
MODEL 204 with CODE (228) Stationary heater
Shown on model 204.0
| Component description for instrument cluster | A1 | GF54.30-P-6000CE |
| Stationary heater control unit, component description | A6n1 | GF83.70-P-4066CE |
| Component description for supplemental restraint system control unit | N2/10 | GF91.60-P-4068CE |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE |
| Component description for automatic air conditioning control and operating unit | N22/7 Without code (581) Comfort automatic air conditioning |
GF83.40-P-3000CEA |
| With code (581) Comfort automatic air conditioning | GF83.40-P-3000CEB | |
| Component description for overhead control panel control unit | N70 With code (414) Electric glass tilting/sliding sunroof |
GF82.20-P-5216CE |
| Component description for electronic overhead control panel | N70/3 Without code (414) Power glass tilting/sliding roof |
GF82.20-P-5217CE |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CE |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CE |
| Table of contents: Function description of stationary heater (STH) | GF83.70-P-0996CE |
