Overview of automatic climate control system components - GF83.40-P-9995CE
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3
MODEL 204.9

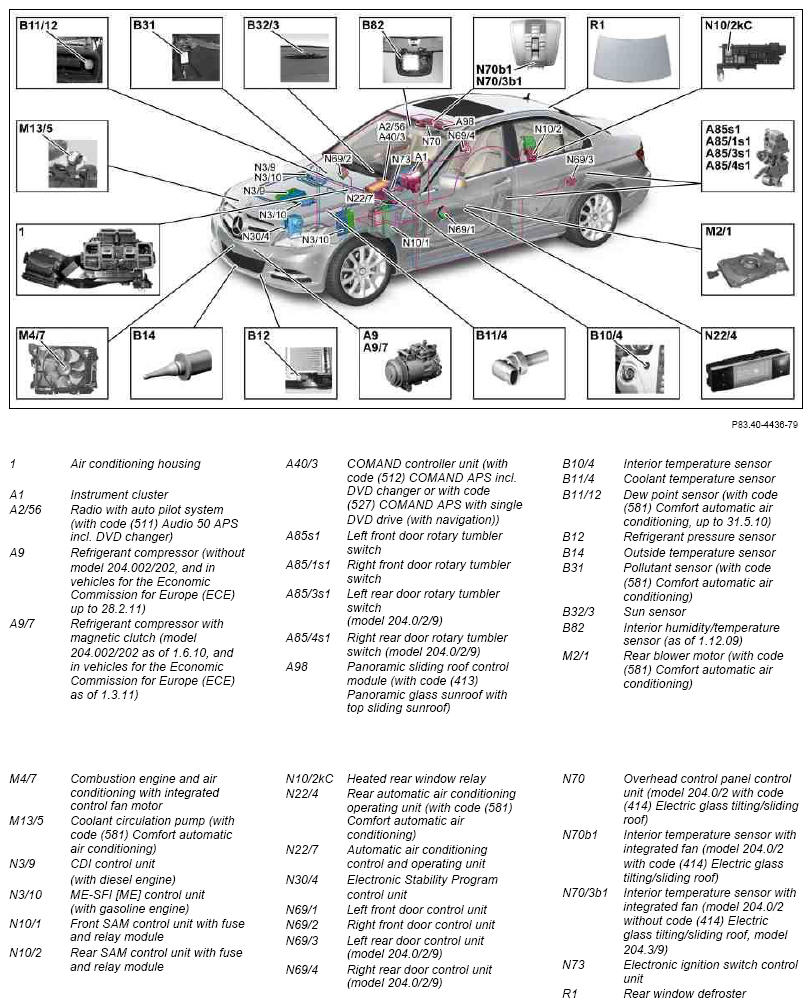

Shown on model 204.0

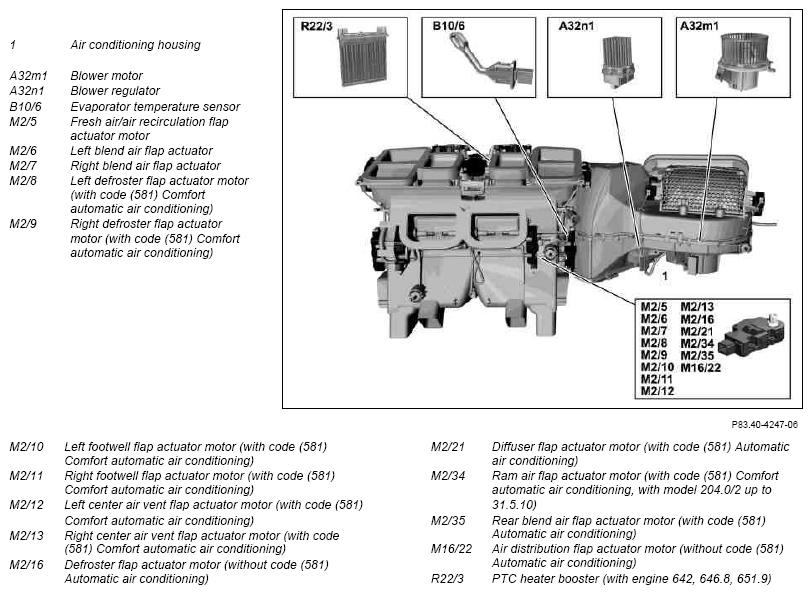

Shown up to 31.5.10
Shown as of 1.6.10
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for radio with auto pilot system | A2/56 Model 204.0/2/9 with code (511) Audio 50 APS incl. DVD changer |
GF82.61-P-4112CE | |
| Component description for COMAND controller unit | A40/3 Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and without code (498) Japan version or with code (512) COMAND APS incl. DVD changer, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) without code (498) Japan version or with code (512) COMAND APS incl. DVD changer |
GF82.85-P-3136CE | |
| Model 204.0/2 as of 1.3.11 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer, Model 204.3 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer |
GF82.85-P-3136CEA | ||
| Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version |
GF82.85-P-3136CEJ | ||
| Component description for panoramic sliding roof control module | A98 With code (413) Panoramic glass sunroof with top sliding sunroof |
GF77.20-P-4106CE | |
| Component description for CDI control unit | N3/9 With engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| With engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| On engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI [ME] control unit | N3/10 With engine 156 in model 204.0/2 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MI | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | ||
| With engine 276.9 | GF07.61-P-6000MM | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for automatic air conditioning control and operating unit | N22/7 Except code (581) Comfort automatic air conditioning |
GF83.40-P-3000CEA | |
| With code (581) Comfort automatic air conditioning | GF83.40-P-3000CEB | ||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CE | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021CE | |
| Component description for overhead control panel control unit | N70 With code (414) Electric glass tilting/sliding sunroof |
GF82.20-P-5216CE | |
| Component description for electronic overhead control panel | N70/3 Without code (414) Power glass tilting/sliding roof |
GF82.20-P-5217CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Table of contents for automatic climate control function description | GF83.40-P-0995CE |
