Interior temperature sensor, component description - GF83.57-P-2131CW
MODEL 204.0 /2 up to Model Year 8
Location

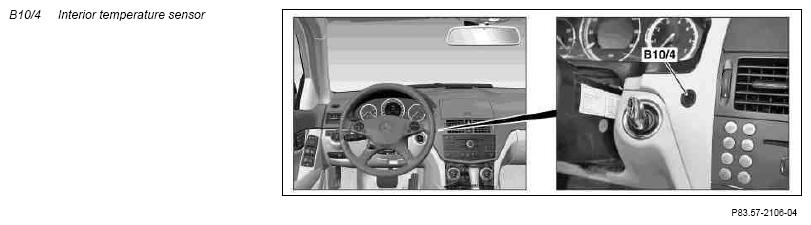

The interior temperature sensor is located on the right side of the instrument panel, next to the electronic ignition lock control unit (N73).
Task
The interior temperature sensor records the temperature in the vicinity of the instrument panel, on the driver-side. The interior temperature sensor is read in discretely by the automatic air conditioning control and operating unit (N22/7).
