Air outlet temperature sensor, component description - GF83.57-P-2130CW

MODEL 204.0 /2 up to Model Year 8

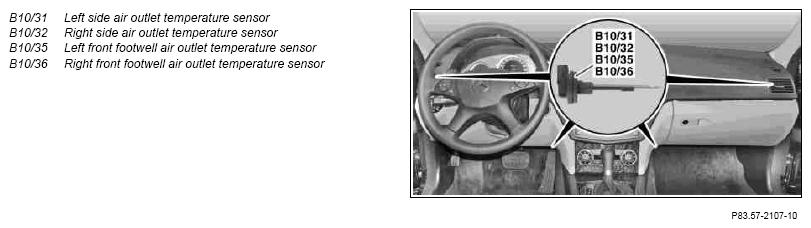

Fig 1: Identifying Left/Right Front Footwell Air Outlet Temperature Sensors

Courtesy of MERCEDES-BENZ USA

Location

The side air vent air outlet temperature sensors are located in the relevant side air vent outlet openings. The footwell vent air outlet temperature sensors are located in the relevant footwell vent outlet openings.

Task

The air outlet temperature sensors record the temperature of the air flowing out of the relevant air vent. The air outlet temperature sensors are discretely read in by the automatic air conditioning control and operating unit (N22/7) and evaluated for controlling the interior climate.

With code (581) Comfort automatic air conditioning

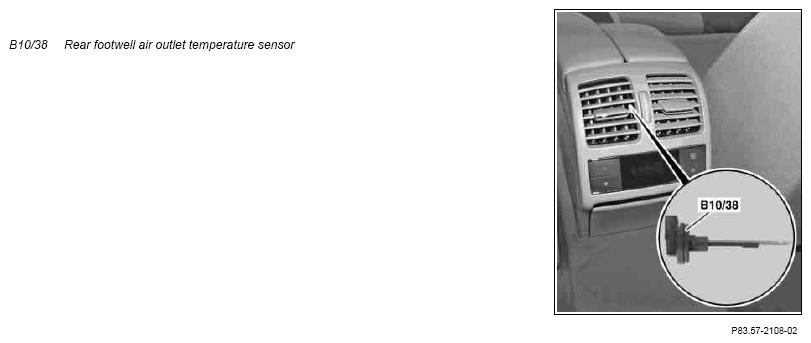

Fig 2: Identifying Rear Footwell Air Outlet Temperature Sensor

Courtesy of MERCEDES-BENZ USA

Location

The rear footwell vent temperature sensor is located in the rear air vent outlet opening.

Task

The rear footwell vent temperature sensor records the temperature of the air flowing out of the rear air vent. The rear footwell vent temperature sensor is discretely read in by the control and operating unit and evaluated for controlling the interior climate.
