Refrigerant pressure sensor, component description - GF83.40-P-2202CW
MODEL 204.0 /2 up to Model Year 8
Illustrated on model 204.0

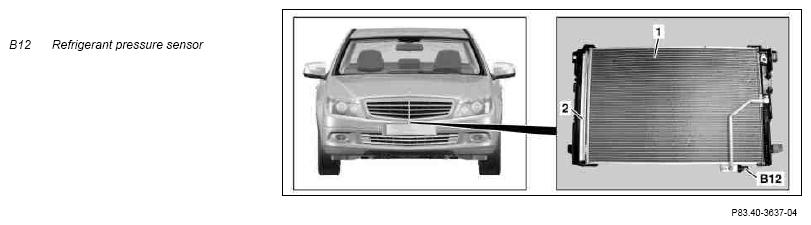

Location
The refrigerant pressure sensor is located at the bottom, next to the condenser (1).
Task
The refrigerant pressure sensor records the refrigerant pressure. The refrigerant pressure sensor value is read in by the front SAM control unit with fuse and relay module (N10/1) and transmitted to the automatic air conditioning control and operating unit (N22/7) via the interior CAN.
