Rear blower motor, component description - GF83.10-P-4160CW
MODEL 204.0 /2 with CODE (581) Comfort automatic air conditioning up to Model Year 8

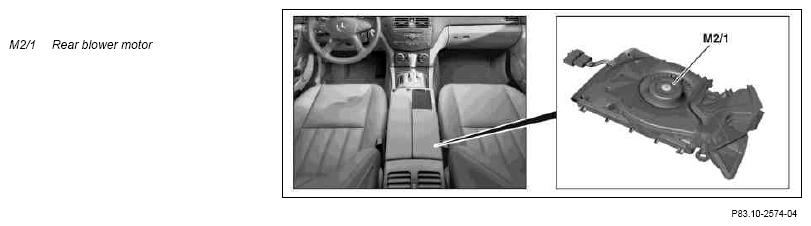

Illustrated on model 204.0
Location
The rear blower motor is located at the rear in the center console.
Task
The rear blower motor ventilates the rear compartment.
The rear blower motor is actuated by the automatic air conditioning control and operating unit (N22/7) via the climate control LIN.
