Blower regulator, component description - GF83.10-P-2051CW
MODEL 204.0 /2 up to Model Year 8
Shown on model 204.0

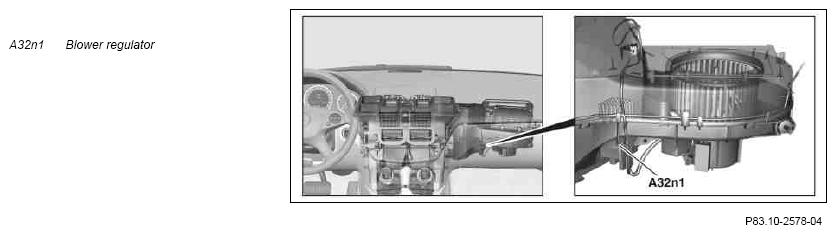

Location
The blower regulator is located in the air conditioner housing next to the blower motor (A32m1).
Task
The blower regulator regulates the blower motor power supply depending on the automatic air conditioning control and operating unit settings (N22/7).
The blower regulator is directly connected to the control and operating unit.
