Automatic air conditioning, location of components - GF83.40-P-0005-01CW

Shown on model 204.0

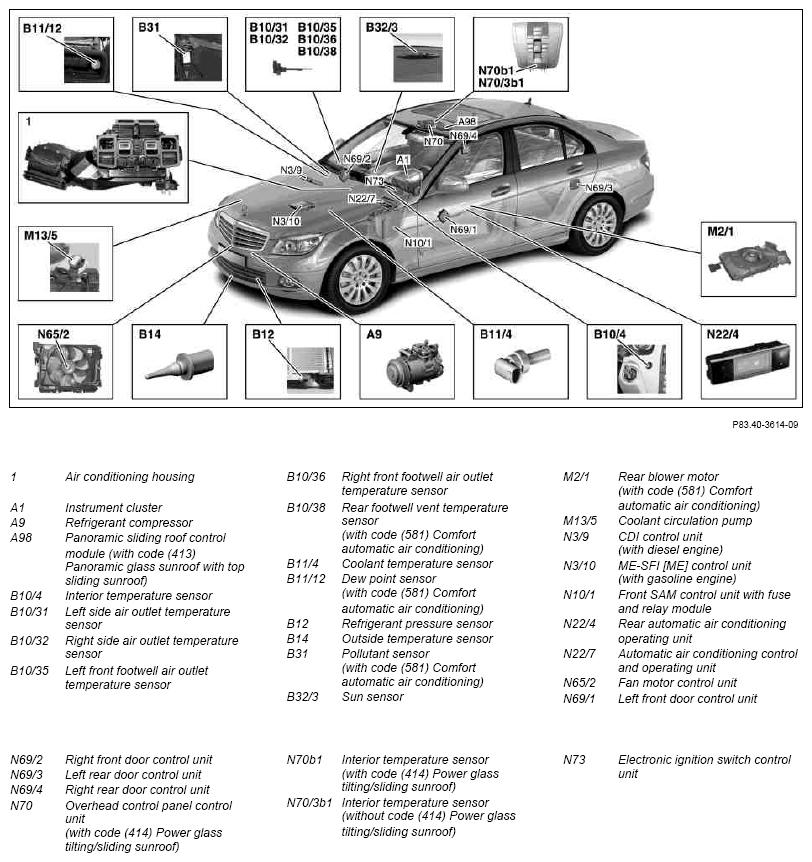

Fig 1: Identifying Automatic Air Conditioning Components Location

Courtesy of MERCEDES-BENZ USA

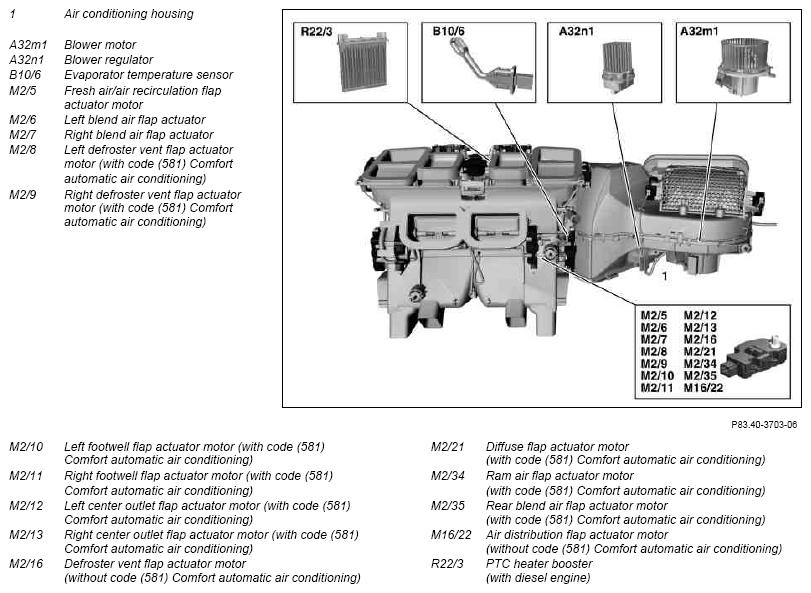

Fig 2: Identifying Air Automatic Housing Components

Courtesy of MERCEDES-BENZ USA
