Automatic air conditioning block diagram - GF83.40-P-0005-02CW

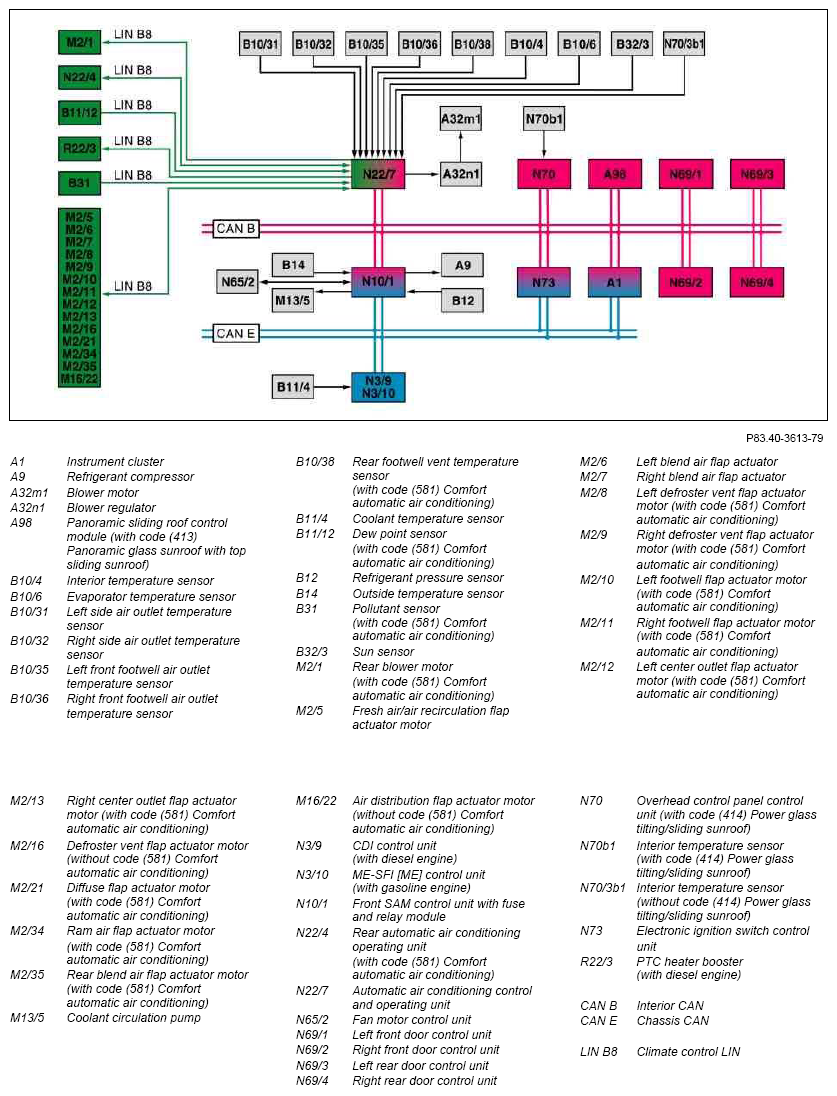

Fig 1: Identifying Automatic Air Conditioning Block Diagram

G07532076

Courtesy of MERCEDES-BENZ USA
