Automatic air conditioning actuator motors, component description - GF83.40-P-2197CWB
MODEL 204.0 /2 with CODE (581) Comfort automatic air conditioning up to Model Year 8

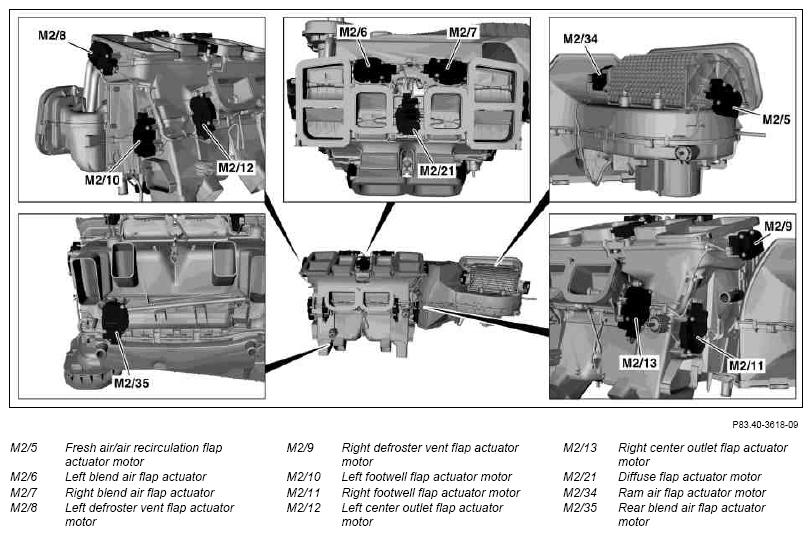

Location
The actuator motors are located at the air conditioner housing.
Task
The actuator motors are actuated by the automatic air conditioning control and operating unit (N22/7) via the climate control LIN. By means of appropriate air duct flap adjustment, the actuator motors regulate the air distribution and the temperature in the vehicle interior.
