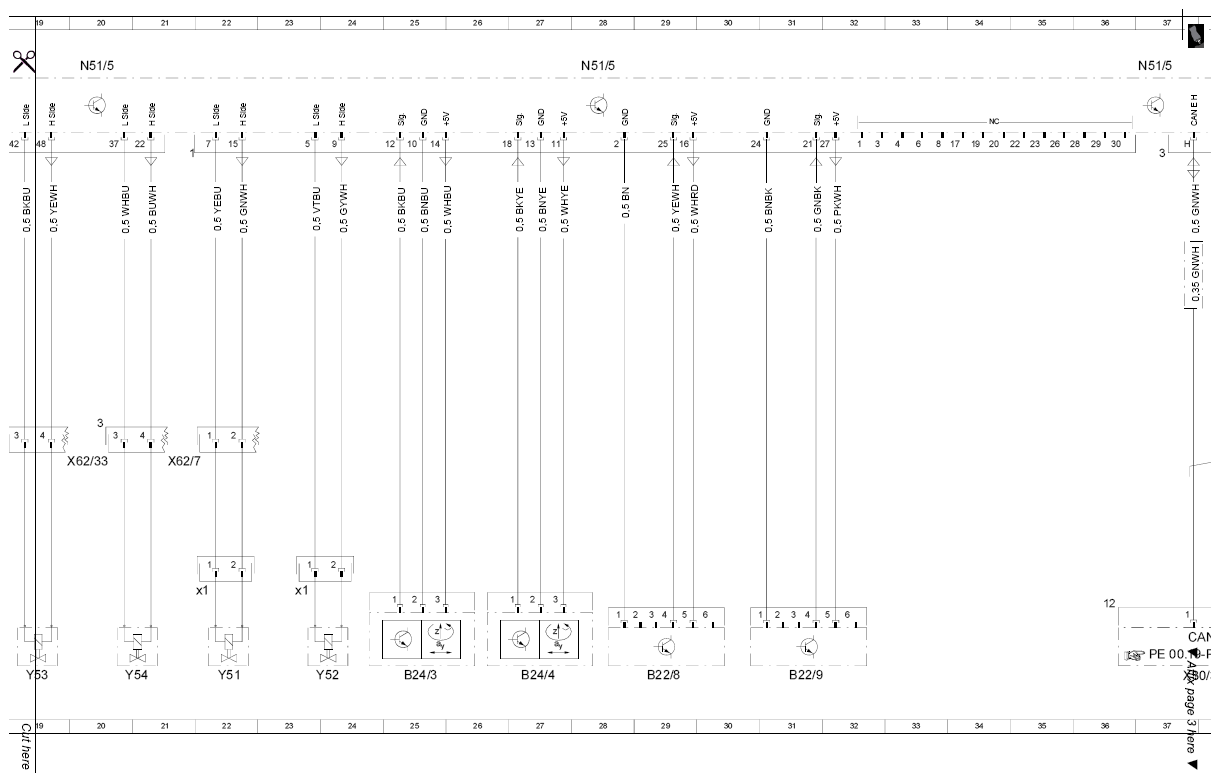

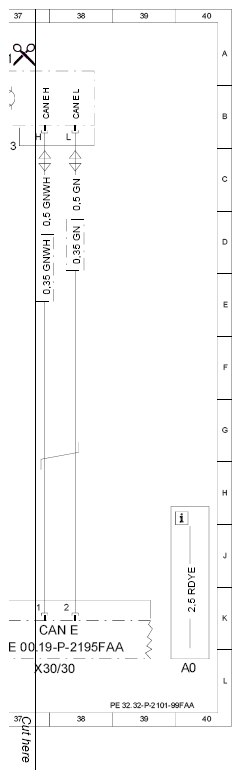

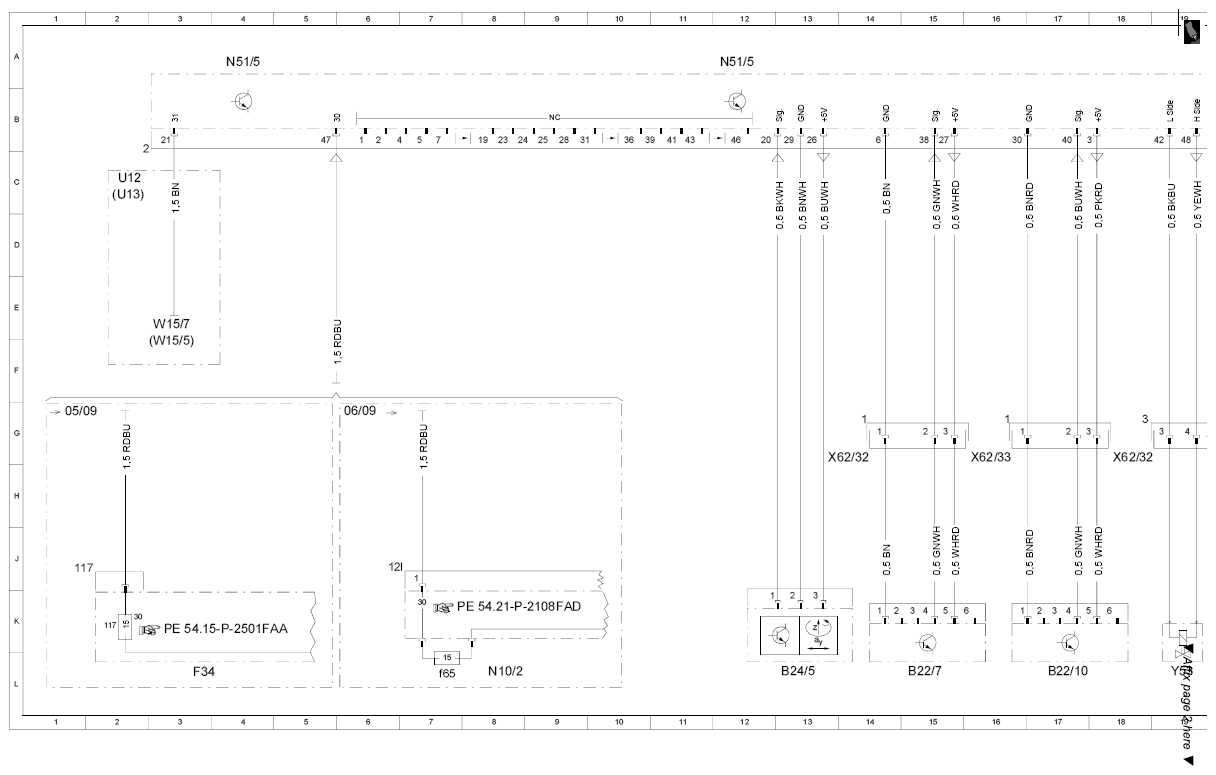

Wiring diagram for adaptive damping system (ADS) control unit - PE32.32-P-2101-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| AO | Explanation of color codes | 40 L |
| B22/10 | Right rear level sensor | 10L |
| B22/7 | Left rear level sensor | 7L |
| B22/8 | Left front level sensor | 27 L |
| B22/9 | Right front level sensor | 30 L |
| B24/3 | Left front body lateral acceleration sensor | 23 L |
| B24/4 | Right front body lateral acceleration sensor | 25 L |
| B24/5 | Left rear body lateral acceleration sensor | 5L |
| CANE | Chassis CAN | 36 K |
| F34 | Interior fuse box | 3L |
| F34f117 | Fuse 117 | 1 K |
| N51/5 | Adaptive damping system control unit | 4A |
| N51/5 | Adaptive damping system control unit | 12A |
| N51/5 | Adaptive damping system control unit | 20 A |
| N51/5 | Adaptive damping system control unit | 27 A |
| N51/5 | Adaptive damping system control unit | 36 A |
| U12 | Valid for left-hand steering | 2C |
| U13 | Valid for right-hand steering | 2C |
| W15/5 | Left front footwell ground point | 3F |
| W15/7 | Right front footwell ground point | 3E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 36 L |
| X62/32 | Rear axle electrical connector, left distributor | 6H |
| X62/32 | Rear axle electrical connector, left distributor | 17H |
| X62/33 | Rear axle electrical connector, right distributor | 8H |
| X62/33 | Rear axle electrical connector, right distributor | 18H |
| X62/7 | Front axle electrical connector, left distributor | 20 H |
| Y51 | Left front axle damping valve unit | 21 L |
| Y51x1 | Left front axle damping valve unit electrical connector | 20 K |
| Y52 | Right front axle damping valve unit | 22 L |
| Y52x1 | Right front axle damping valve unit electrical connector | 22 K |
| Y53 | Left rear axle damping valve unit | 17L |
| Y54 | Right rear axle damping valve unit | 19L |
