Replacing retaining clip - AR32.22-P-1500-02T
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Always replace retaining clips in pairs.

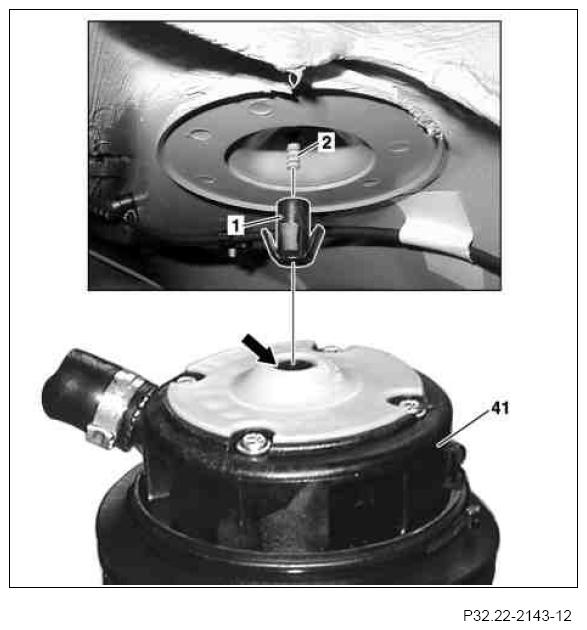

- Remove fragments of the retaining clip (1) from the centering hole (arrow) in the air spring (41)
- Remove fragments of the retaining clip (1) from the pin (2).
- Tap a new retaining clip (1) onto the pin(2) using a plastic mallet until the retaining clip (1) lies flat on the frame floor.
