Emptying the air spring completely - AR32.22-P-1500-04T
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
- Relieve the pressure in the air spring using STAR DIAGNOSIS until a residual pressure is reached

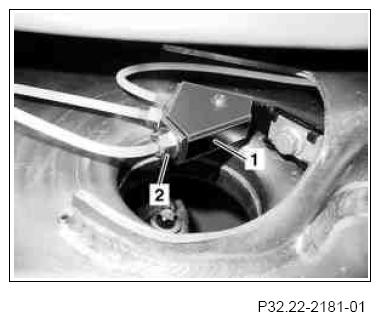

- Unscrew the compressed-air connection (2) on the compressed-air distributor of the rear axle (1).
- Using STAR DIAGNOSIS relieve the pressure in the air spring until the air spring is emptied completely.
Only the rear axle air springs may be emptied completely and not the front axle air suspension struts at the same time otherwise the front axle air suspension struts will be destroyed.
