AR32.20-P-0200-06T	Clamping rear spring
	Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A

Fig 1: Identifying Puller (123 589 05 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Tensioning Device (202 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Tensioning Plates (211 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Remove plastic cone in the upper rubber mount of the rear spring using puller.
The plastic only serves as an initial assembly aid and is not installed again.
Insert top clamping plate (01 ) and bottom clamping plate (02) on the rear spring (6i).
Clamp as many coils of the spring as possible.
Turn the notches (arrow) of the clamping plates (01, 02) towards the inside of the vehicle.
Insert tensioning device (03) in clamping plates (01, 02) and engage in the recesses (4) of the upper clamping plate (01).
Clamp rear spring (6). In the process secure rear spring (6i) to prevent it from twisting.
Do not use any impact wrench/driver, otherwise the tensioning device (03) will be damaged.
Mark position of clamping plates (01, 02) relative to the rear spring (6i) with oil-based chalk.
Relieve the load on rear spring (6i).
Transfer markings to the new rear spring (6i).
When installing a new rear spring (6i).

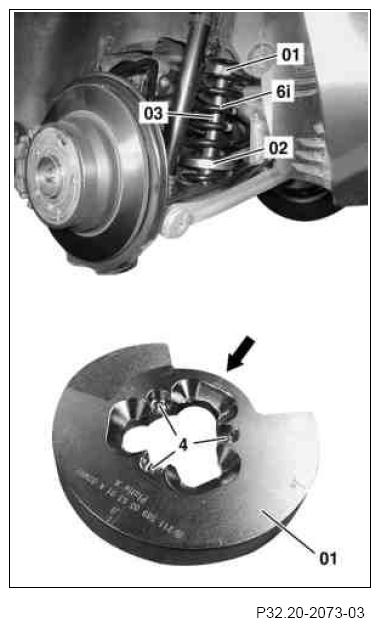

Fig 4: Identifying Recesses Of Upper Clamping Plate And Clamping Plate
Courtesy of MERCEDES-BENZ USA
