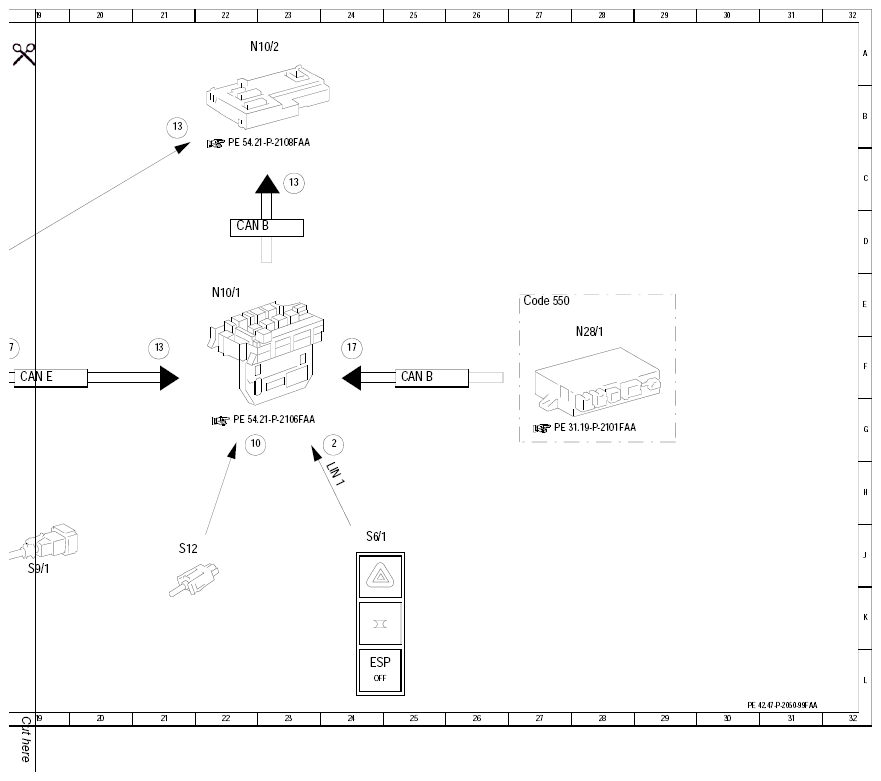

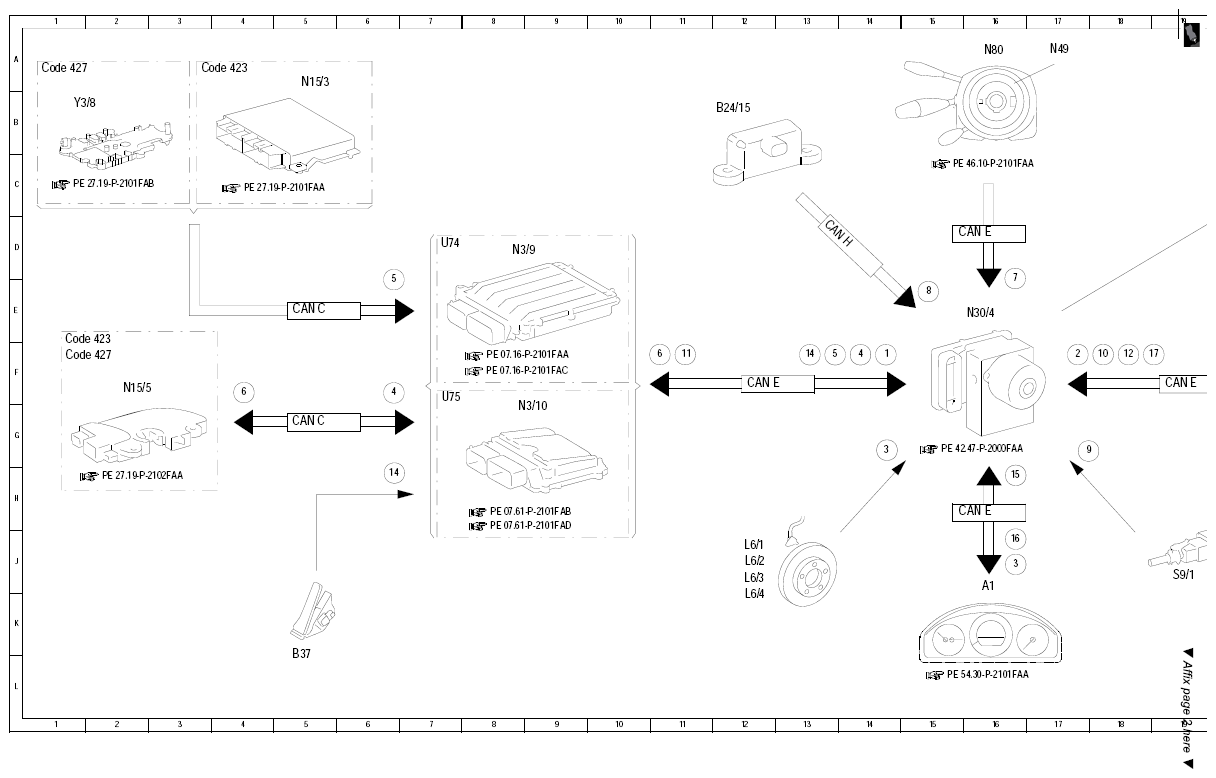

Electrical function schematic for Adaptive Brake (ABR) - PE42.47-P-2050-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 61, status | 14 F |
| 10 | Parking brake indicator switch, status | 18 F |
| 10 | Parking brake indicator switch, status | 22 G |
| 11 | Engine torque, reduce request | 11 F |
| 12 | Variant coding, signal | 18 F |
| 13 | Brake lights, request | 21 F |
| 13 | Brake lights, request | 21 B |
| 13 | Brake lights, request | 23 C |
| 14 | Accelerator pedal sensor, signal | 6 H |
| 14 | Accelerator pedal sensor, signal | 13 F |
| 15 | Dynamometer mode, status | 16 H |
| 16 | Instrument cluster, message | 16 J |
| 17 | Trailer, status | 18 F |
| 17 | Trailer, status | 24 F |
| 2 | ESP button, status | 17 F |
| 2 | ESP button, status | 24 G |
| 3 | Wheel speed, signal | 14 G |
| 3 | Wheel speed, signal | 16 J |
| 4 | Electronic selector lever module control unit, status | 6 F |
| 4 | Electronic selector lever module control unit, status | 14 F |
| 5 | Shift stage, status | 6 E |
| 5 | Shift stage, status | 13 F |
| 6 | Service brake, status | 4 F |
| 6 | Service brake, status | 11 F |
| 7 | Steering angle, signal | 16 E |
| 8 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 15 E |
| 9 | Brake light switch, status | 17 G |
| A1 | Instrument cluster | 16 K |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 12 B |
| B37 | Accelerator pedal sensor | 5 L |
| CAN B | Interior CAN | 22 D |
| CAN B | Interior CAN | 25 F |
| CAN C | Drive train CAN | 5 G |
| CAN C | Drive train CAN | 5 E |
| CAN E | Chassis CAN | 12 F |
| CAN E | Chassis CAN | 15 H |
| CAN E | Chassis CAN | 15 D |
| CAN E | Chassis CAN | 19 F |
| CAN H | Vehicle dynamics CAN | 13 D |
| Code 423 | 5-speed automatic transmission | 1 F |
| Code 423 | 5-speed automatic transmission | 3 A |
| Code 427 | 7-speed automatic transmission | 1 A |
| Code 427 | 7-speed automatic transmission | 1 F |
| Code 550 | Trailer hitch | 27 E |
| L6/1 | Left front axle RPM sensor | 12 J |
| L6/2 | Right front axle RPM sensor | 12 J |
| L6/3 | Left rear axle RPM sensor | 12 J |
| L6/4 | Right rear axle RPM sensor | 12 K |
| LIN 1 | Instrument panel LIN | 24 H |
| N10/1 | Front SAM control unit with fuse and relay module | 22 E |
| N10/2 | Rear SAM control unit with fuse and relay module | 22 A |
| N15/3 | Electronic transmission control unit | 5 B |
| N15/5 | Electronic selector lever module control unit | 2 F |
| N28/1 | Trailer recognition control unit | 28 F |
| N3/10 | ME-SFI [ME] control unit | 8 G |
| N3/9 | CDI control unit | 8 D |
| N30/4 | Electronic Stability Program control unit | 15 E |
| N49 | Steering angle sensor | 17 A |
| N80 | Steering column module control unit | 16 A |
| S12 | Parking brake indicator switch | 21 J |
| S6/1 | Instrument panel switch group | 24 J |
| S9/1 | Stop lamp switch | 19 J |
| U74 | Valid for diesel engines | 7 D |
| U75 | Valid for gasoline engines | 7 G |
| Y3/8 | Fully integrated transmission control unit | 1 B |
