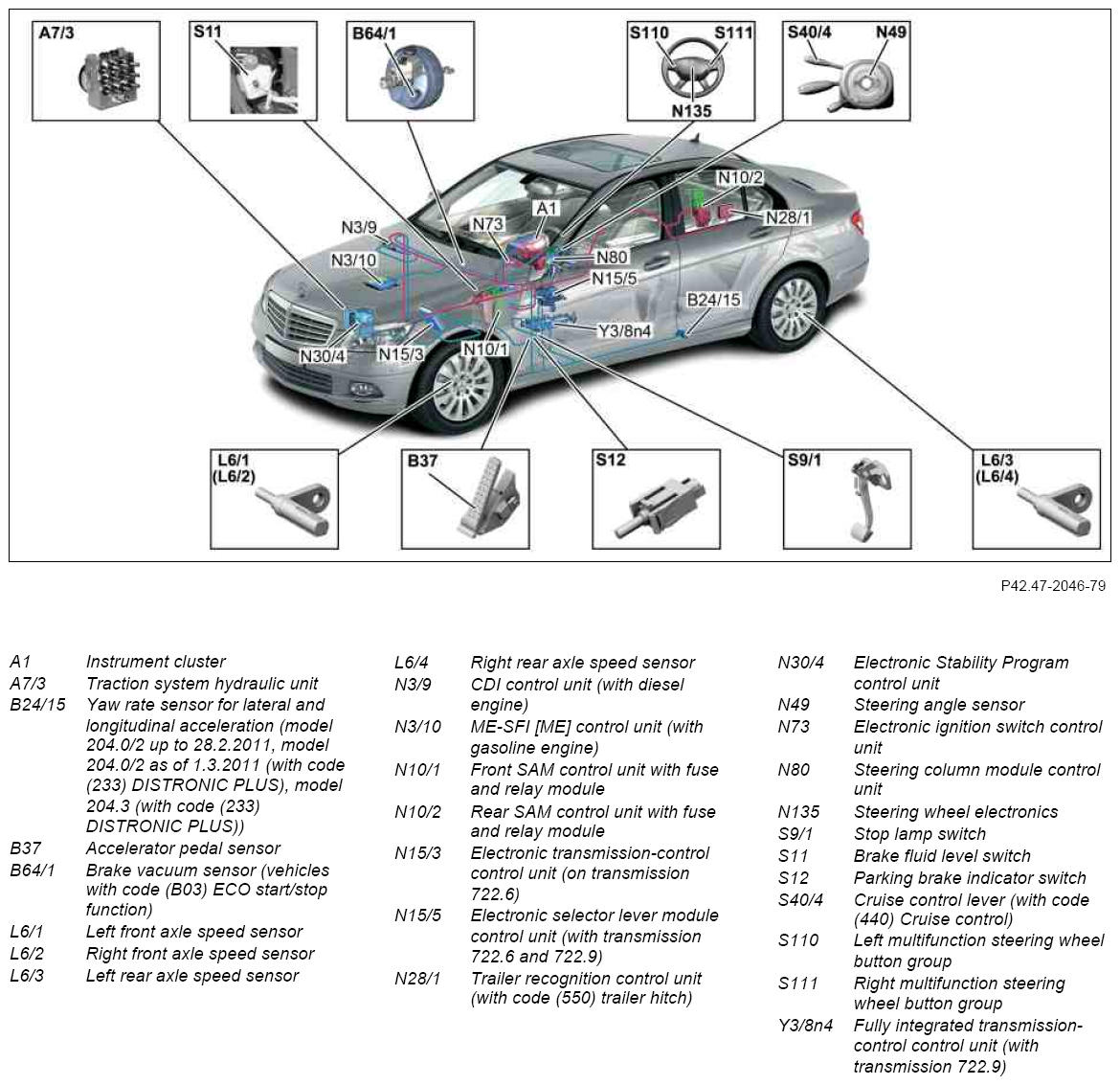

Adaptive Brake (ABR) location of components - GF42.47-P-0001-02CE
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Implementation dates and validities for Electronic Stability Program control unit (N30/4) (ESP) (Basis variant, with code (233) DISTRONIC PLUS) or Electronic Stability Program control unit (Premium variant, with code (233) DISTRONIC PLUS)
Model 204.0/2 as of 1.3.2011
Model 204.3 as of 1.6.2011
Up to 28.2.2011 only the Basis variant of the Electronic Stability Program control unit will be used in service.
Shown on model 204.0 as of 1.6.10 up to 28.2.2011
