Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03CE

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Implementation dates and validities for Electronic Stability Program control unit (N30/4) (ESP) (Basis variant, with code (233) DISTRONIC PLUS) or Electronic Stability Program control unit (Premium variant, with code (233) DISTRONIC PLUS)

Model 204.0/2 as of 1.3.2011

Up to 28.2.2011 only the Basis variant of the Electronic Stability Program control unit will be used in service.

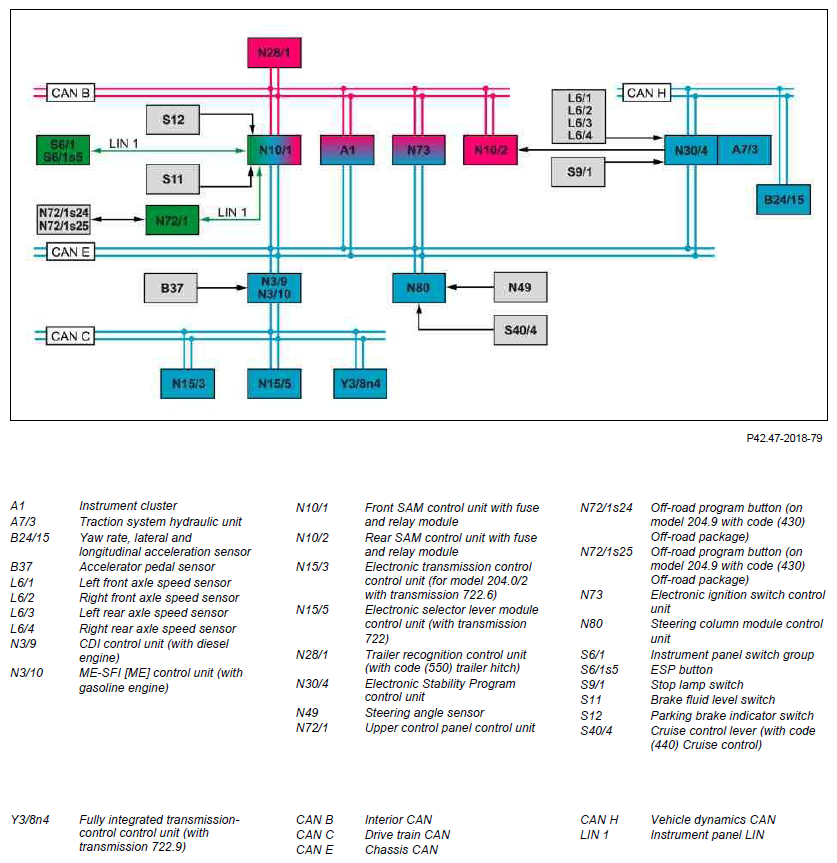

Fig 1: Adaptive Brake Block Diagram - Model 204.0/2 Up To 31.5.10

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0/2 up to 31.5.10, model 204.9

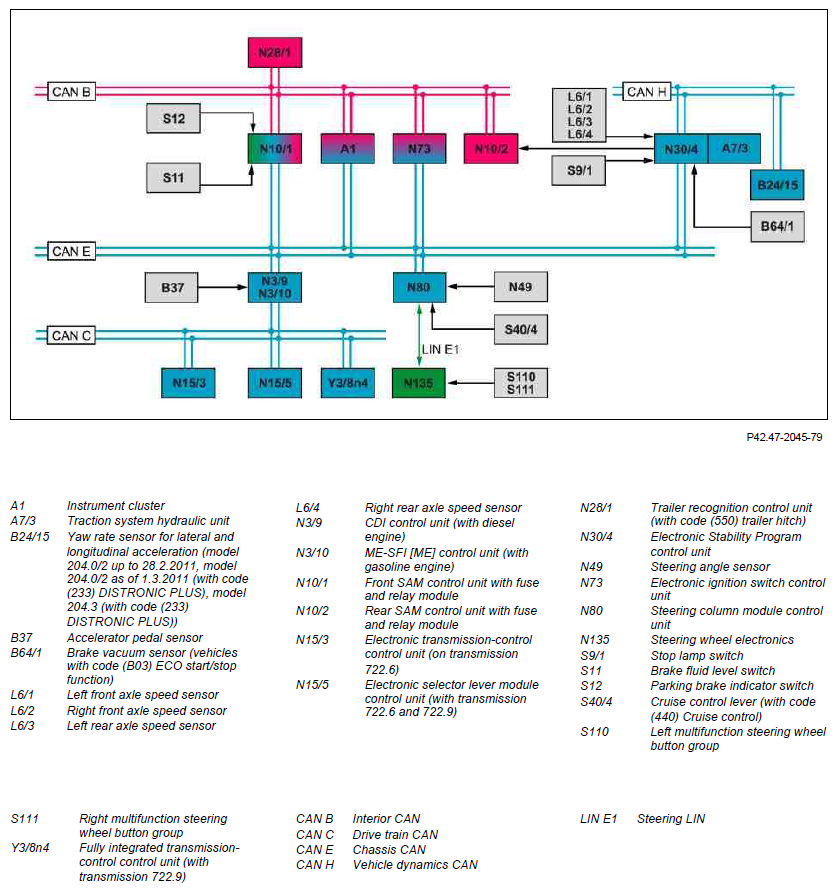

Fig 2: Adaptive Brake Block Diagram - Model 204.0/2 As Of 1.6.10

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0/2 as of 1.6.10, model 204.3
