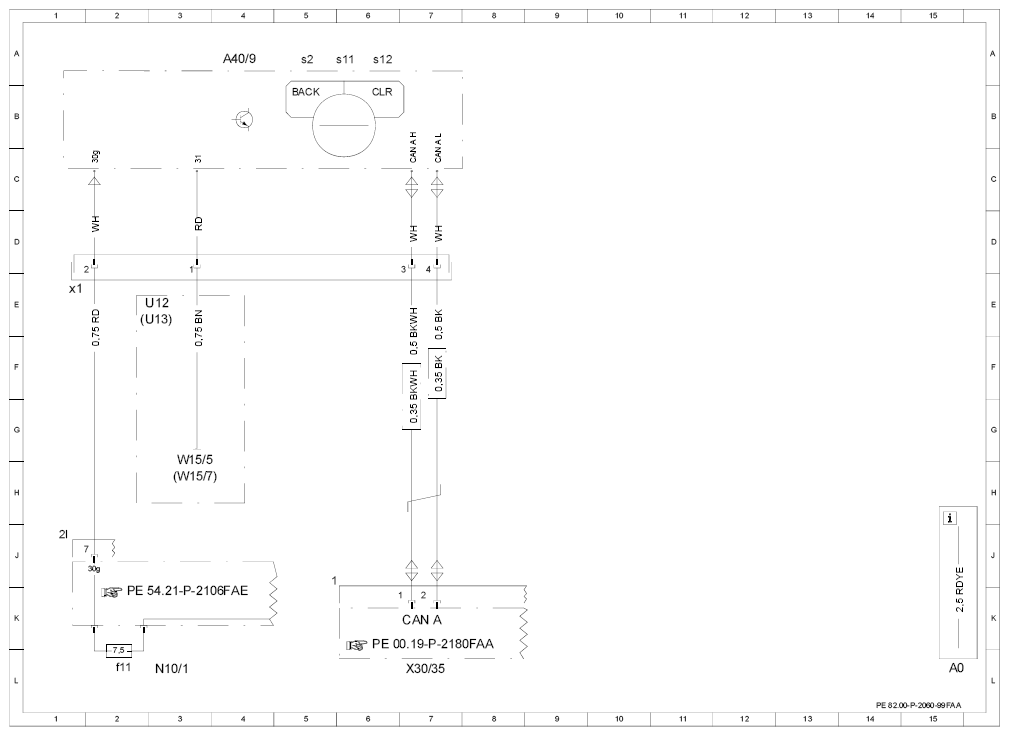

Wiring diagram, front central operating unit - PE82.00-P-2060-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15 L |
| A40/9 | Audio/COMAND control panel | 4 A |
| A40/9s11 | Audio/COMAND controller | 5 A |
| A40/9s12 | "Delete" button | 6 A |
| A40/9s2 | "Back" button | 5 A |
| A40/9x1 | Audio/COMAND control panel electrical connector | 1 D |
| CAN A | Telematics CAN | 7 K |
| N10/1 | Front SAM control module with fuse and relay module | 3 L |
| N10/1f11 | Fuse 11 | 2 L |
| U12 | Valid for left-hand steering | 2 E |
| U13 | Valid for right-hand steering | 2 E |
| W15/5 | Left front footwell ground point | 3 G |
| W15/7 | Right front footwell ground point | 3 G |
| X30/35 | Telematics CAN voltage distributor electrical connector | 7 L |
