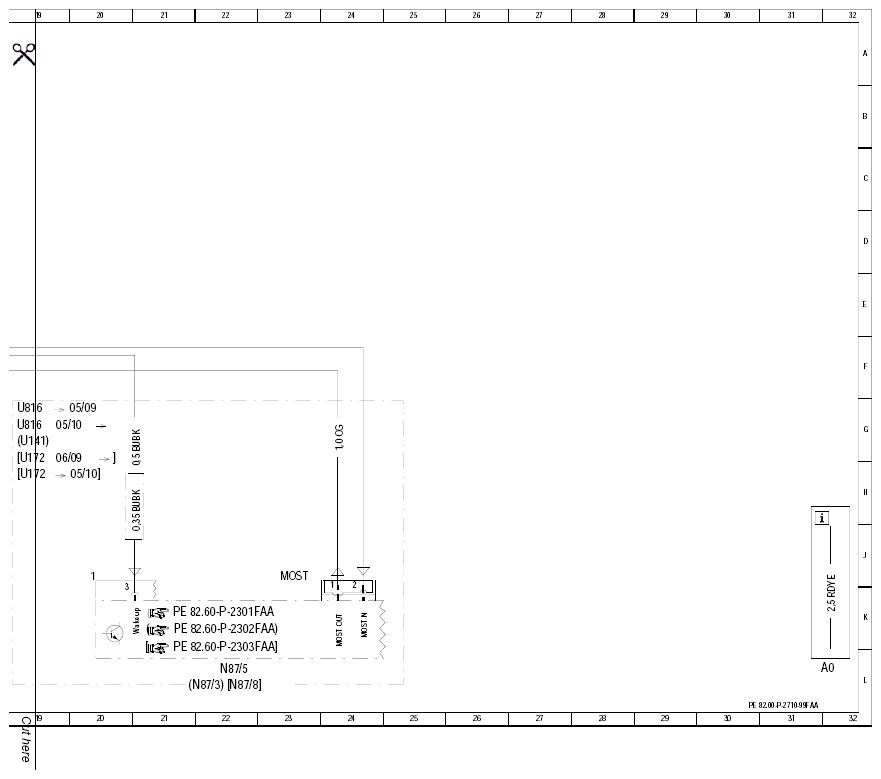

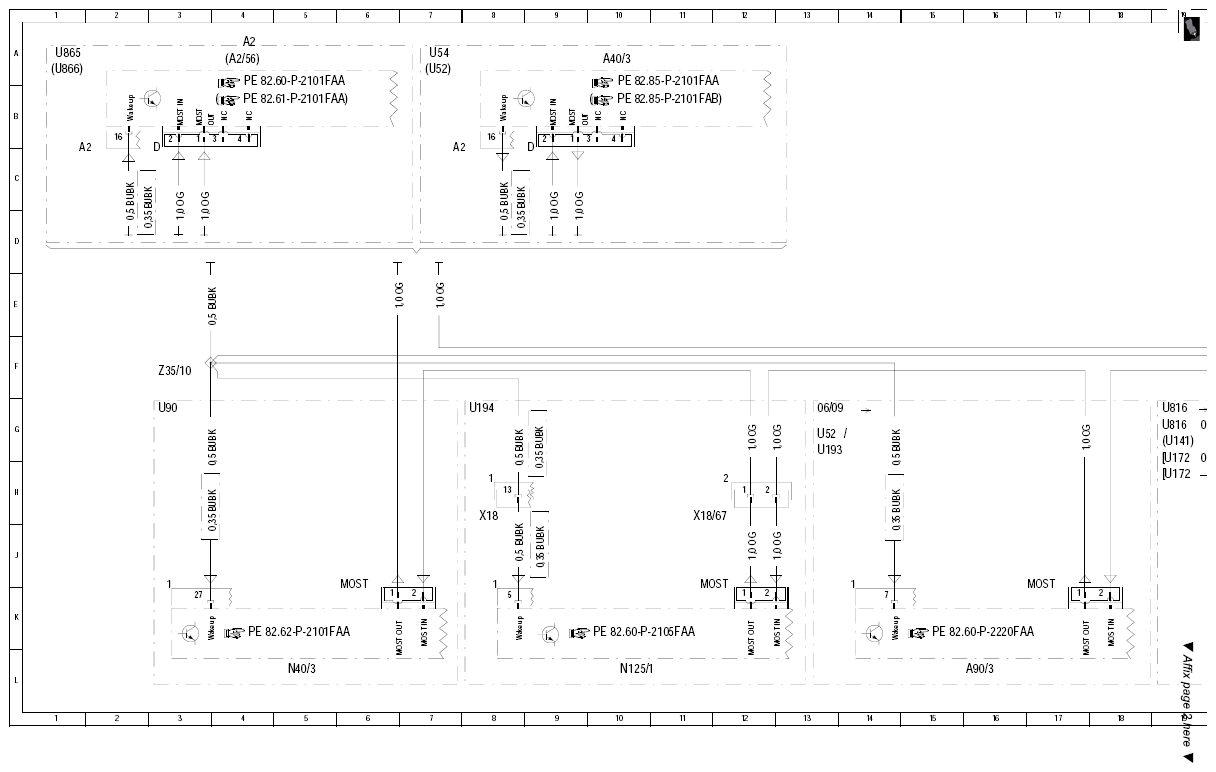

Wiring diagram for MOST bus - PE82.00-P-2710-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A2 | Radio | 4 A |
| A2/56 | Radio with auto pilot system | 4 A |
| A40/3 | COMAND control unit | 10 A |
| N10/2 | Rear SAM control module with fuse and relay module | 9 L |
| N10/2f81 | Fuse 81 | 8 L |
| N125/1 | Media interface control unit | 14 L |
| N40/3 | Sound system amplifier control unit | 5 L |
| N87/3 | Digital Audio Broadcasting control unit | 19 L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 19 L |
| U141 | Valid for Digital Audio Broadcasting | 16 G |
| U194 | Valid for AUX jack | 8 G |
| U52 | Valid for Japan | 7 A |
| U54 | Valid for all except Japan | 7 A |
| U816 | Valid for satellite digital audio radio (SDAR) | 16 G |
| U865 | Valid for Audio 20 radio | 1 A |
| U866 | Valid for Audio 50 | 1 A |
| U90 | Valid for sound system | 3 G |
| W15/7 | Right front footwell ground point | 11 L |
| X18/67 | Media interface electrical connector | 12 J |
| X18/67 | Media interface electrical connector | 14 J |
| Z35/10 | MOST wake-up signal connector sleeve | 3 F |
