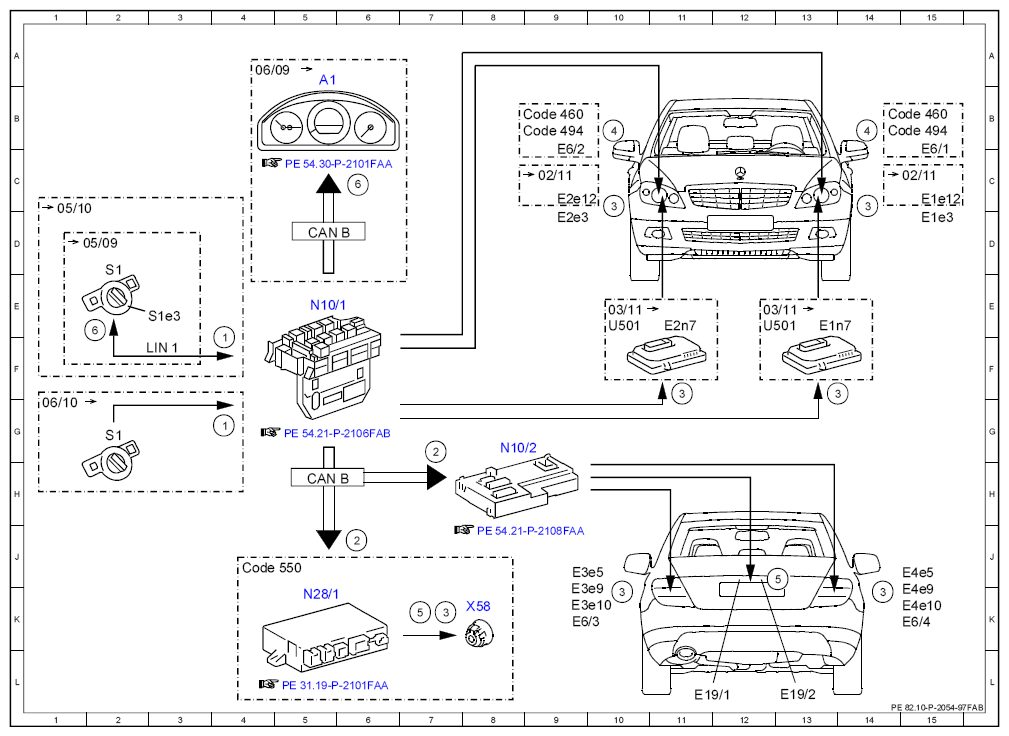

Electrical function schematic, standing light/parking lights actuation - PE82.10-P-2054-97FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 4F |
| 1 | Exterior lights switch, status | 4G |
| 2 | Standing and parking lights, request | 7G |
| 2 | Standing and parking lights, request | 6J |
| 3 | Standing and parking lights, actuation | 7K |
| 3 | Standing and parking lights, actuation | 10K |
| 3 | Standing and parking lights, actuation | 14K |
| 3 | Standing and parking lights, actuation | 14C |
| 3 | Standing and parking lights, actuation | 13F |
| 3 | Standing and parking lights, actuation | 10C |
| 3 | Standing and parking lights, actuation | 11F |
| 4 | Side-marker lamp, actuation | |
| 4 | Side-marker lamp, actuation | |
| 5 | License plate lamp, actuation | 7K |
| 5 | License plate lamp, actuation | 13J |
| 6 | Standing lights indicator lamp, actuation | 2E |
| 6 | Standing lights indicator lamp, actuation | 6C |
| A1 | Instrument cluster | 5A |
| CAN B | Interior CAN | 5H |
| CAN B | Interior CAN | 5D |
| Code 460 | Additional parts for Canada vehicles | 14B |
| Code 460 | Additional parts for Canada vehicles | 8B |
| Code 494 | USA version | 14B |
| Code 494 | USA version | 8B |
| Code 550 | Trailer hitch | 4J |
| E19/1 | Left license plate lamp | 11L |
| E19/2 | Right license plate lamp | 13L |
| E1e12 | Left front standing light 2 | 15C |
| E1e3 | Left front standing and parking lamp | 15D |
| E1n7 | Left signal lamp actuation module LED | 13E |
| E2e12 | Right front standing light 2 | 9C |
| E2e3 | Right front standing and parking lamp | 9D |
| E2n7 | Right signal lamp actuation module LED | 11E |
| E3e10 | Inner left stop lamp and taillamp | 9K |
| E3e5 | Left rear fog lamp | 9J |
| E3e9 | Left stop lamp and taillamp and parking lamp | 9K |
| E4e10 | Inner right brake light and taillight | 15K |
| E4e5 | Right rear fog lamp | 15J |
| E4e9 | Right stop lamp and taillamp and parking lamp | 15K |
| E6/1 | Left front side-marker lamp | 15C |
| E6/2 | Right front side-marker lamp | 9C |
| E6/3 | Left rear side-marker lamp | 9K |
| E6/4 | Right rear side-marker lamp | 15K |
| LIN 1 | Instrument panel LIN | 3F |
| N10/1 | Front SAM control unit with fuse and relay module | 5E |
| N10/2 | Rear SAM control unit with fuse and relay module | 8G |
| N28/1 | Trailer recognition control unit | 5K |
| S1 | Exterior lights switch | 2G |
| S1 | Exterior lights switch | 2D |
| S1e3 | Standing lamps indicator lamp | 2E |
| U501 | Valid for xenon headlamps | 10E |
| U501 | Valid for xenon headlamps | 12E |
| X58 | Trailer socket | 8K |
