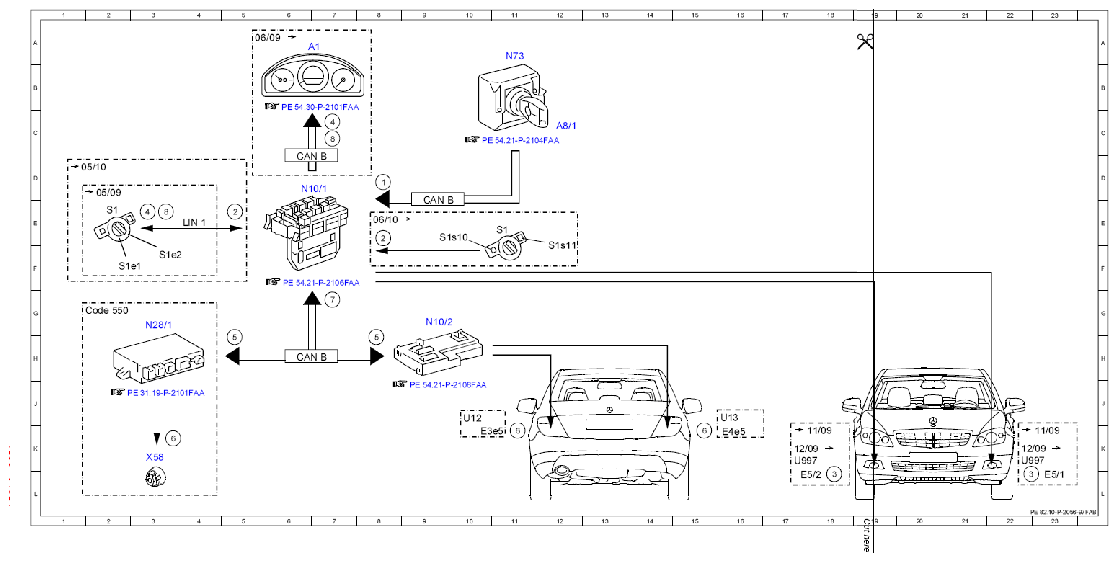

Electrical function schematic for front fog light actuation - PE82.10-P-2056-97FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8D |
| 2 | Exterior lights switch, status | 5E |
| 2 | Exterior lights switch, status | 8E |
| 3 | Front fog lamps, actuation | 18L |
| 3 | Front fog lamps, actuation | 22L |
| 4 | Front fog lamps indicator lamp, actuation | 3E |
| 4 | Front fog lamps indicator lamp, actuation | 7C |
| 5 | Rear fog light, request | 5H |
| 5 | Rear fog light, request | 8H |
| 6 | Rear fog light, actuation | 3K |
| 6 | Rear fog light, actuation | 11K |
| 6 | Rear fog light, actuation | 15K |
| 7 | Trailer operation detected, signal | 7G |
| 8 | Rear fog light indicator light, actuation | 3E |
| 8 | Rear fog light indicator light, actuation | 7C |
| A1 | Instrument cluster | 6A |
| A8/1 | Transmitter key | 12C |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 6D |
| Code 550 | Trailer hitch | 1G |
| E3e5 | Left rear fog lamp | 10K |
| E4e5 | Right rear fog lamp | 16K |
| E5/1 | Left fog lamp | 23L |
| E5/2 | Right fog lamp | 17L |
| LIN 1 | Instrument panel LIN | 4E |
| N10/1 | Front SAM control unit with fuse and relay module | 6D |
| N10/2 | Rear SAM control unit with fuse and relay module | 9G |
| N28/1 | Trailer recognition control unit | 3G |
| N73 | Electronic ignition switch control unit | 11A |
| S1 | Exterior lights switch | 2E |
| S1 | Exterior lights switch | 11E |
| S1e1 | Front fog lamps indicator lamp | 2F |
| S1e2 | Rear fog lamp indicator lamp | 3F |
| S1s10 | Rear fog light button | 9E |
| S1s11 | Front fog lamp button | 12F |
| U12 | Valid for left-hand drive vehicles | 10J |
| U13 | Valid for right-hand drive vehicles | 16J |
| U997 | Not valid for Intelligent Light System | 17K |
| U997 | Not valid for Intelligent Light System | 22K |
| X58 | Trailer socket | 3K |
