Remove/install the tensioning device for the oil pump chain - AR18.10-P-2000SX
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273/

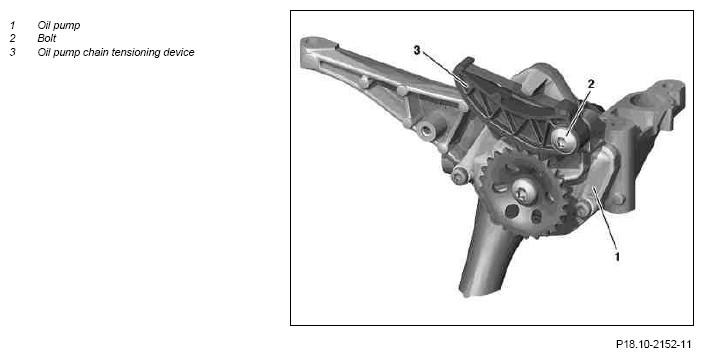

Shown on oil pump for engine 273.961
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove oil pump (1) | ||
| 2 | Unscrew the bolt (2) and take off the tensioning device (3) of the oil pump chain from the oil pump (1) | *BA18.10-P-1007-01B | |
| 3 | Install in the reverse order |
OIL PUMP
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA18.10-P-1007-01B | Bolt for oil pump chain tensioning device on oil pump | Nm | 10 | 10 |
