Prepare B-pillar for installation - AR63.20-P-1350-07CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

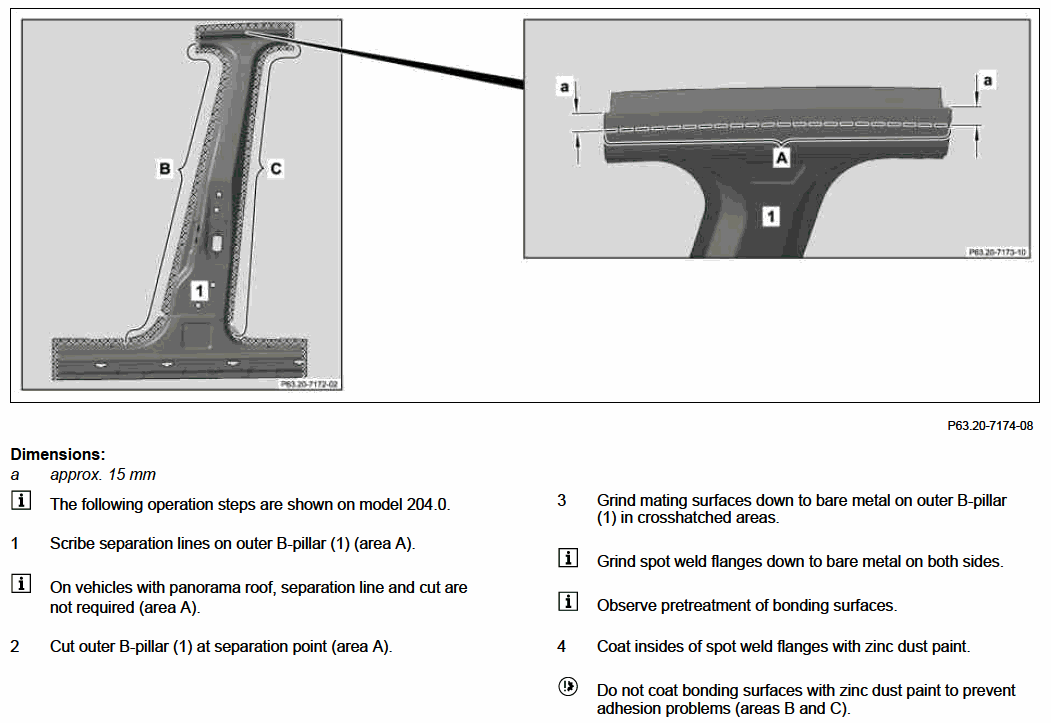

Fig 1: Preparing B-Pillar For Installation - Steps 1 Through 4
G00551604Courtesy of MERCEDES-BENZ USA

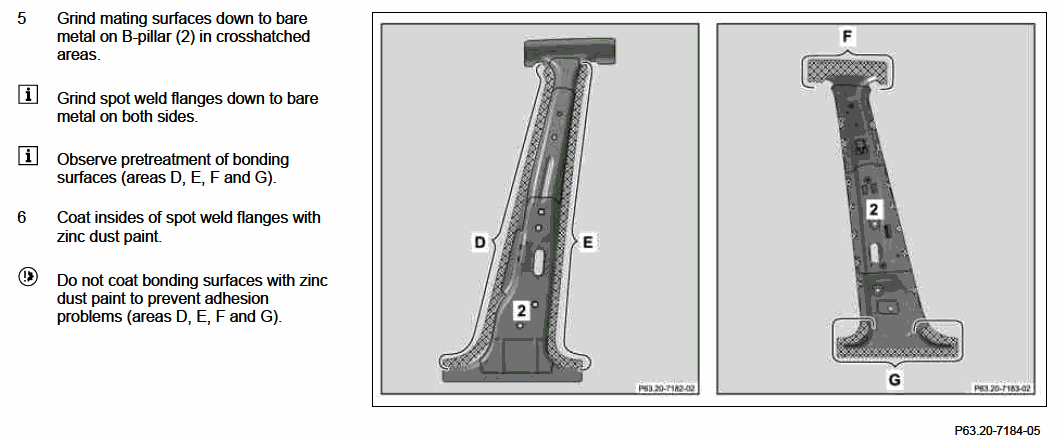

Fig 2: Preparing B-Pillar For Installation - Steps 5 And 6
G00551605Courtesy of MERCEDES-BENZ USA

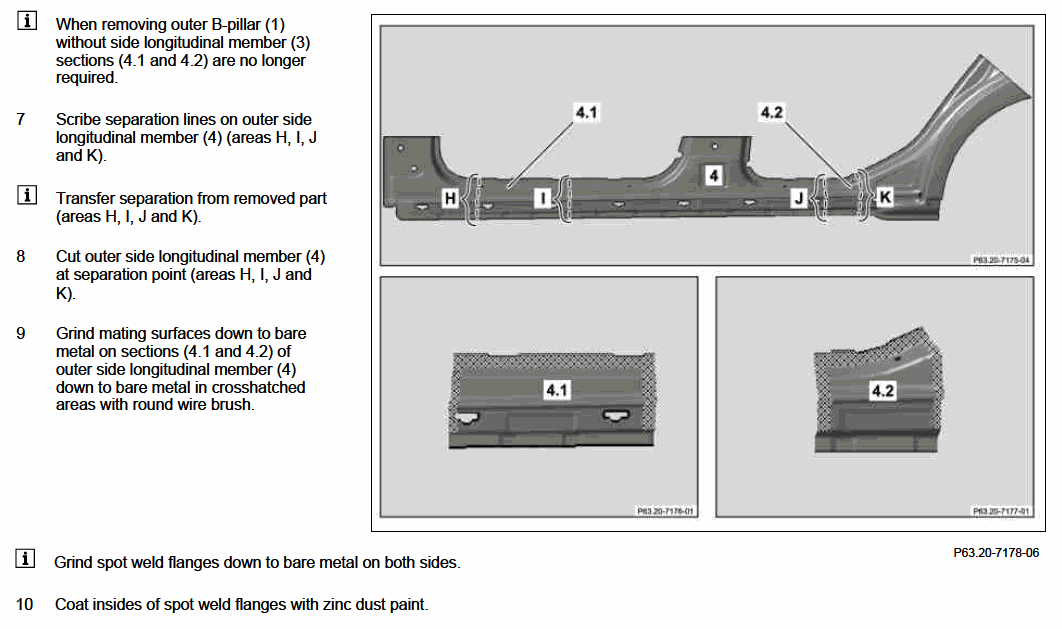

Fig 3: Preparing B-Pillar For Installation - Steps 7 Through 9
G00551606Courtesy of MERCEDES-BENZ USA

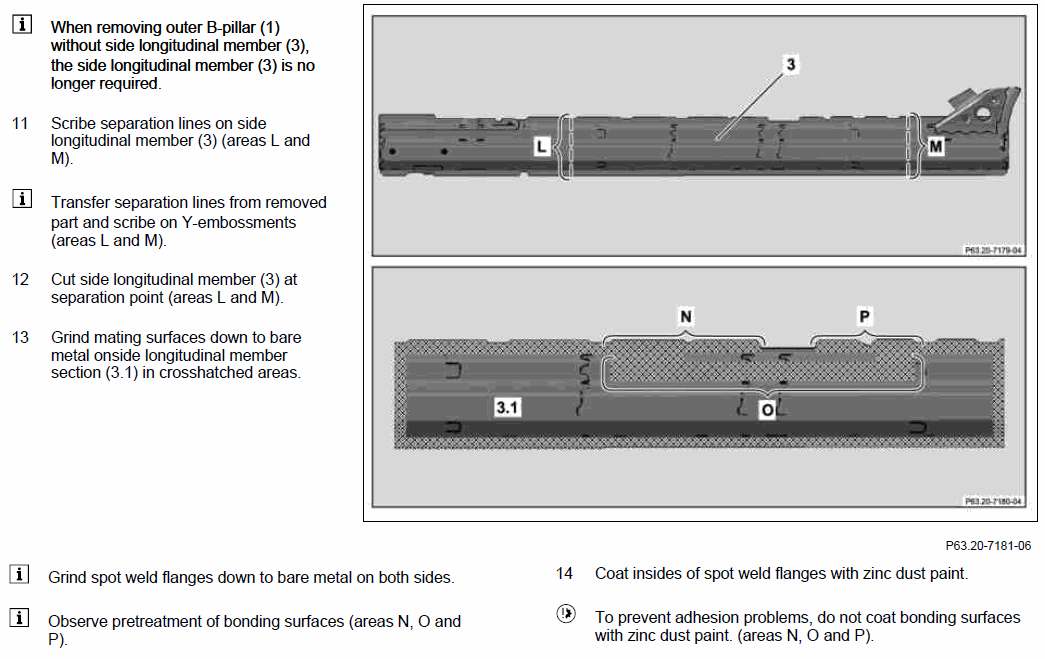

Fig 4: Preparing B-Pillar For Installation - Steps 11 Through 14
G00551607Courtesy of MERCEDES-BENZ USA
