Cut out A-pillar - AR63.20-P-1100-01CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

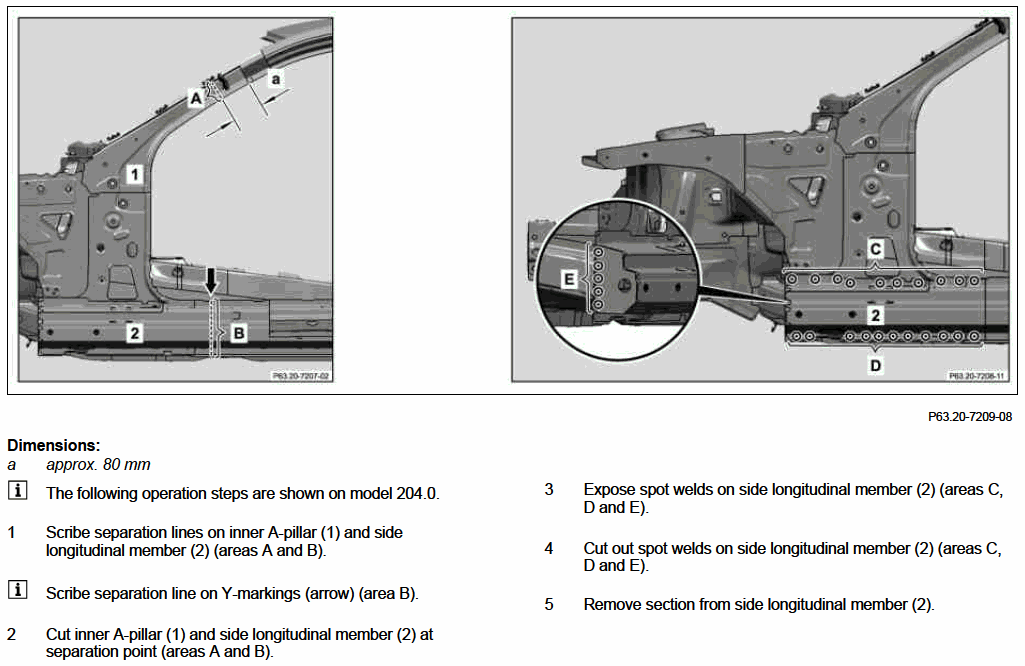

Fig 1: Cutting Out A-Pillar - Steps 1 Through 5
G00551599Courtesy of MERCEDES-BENZ USA

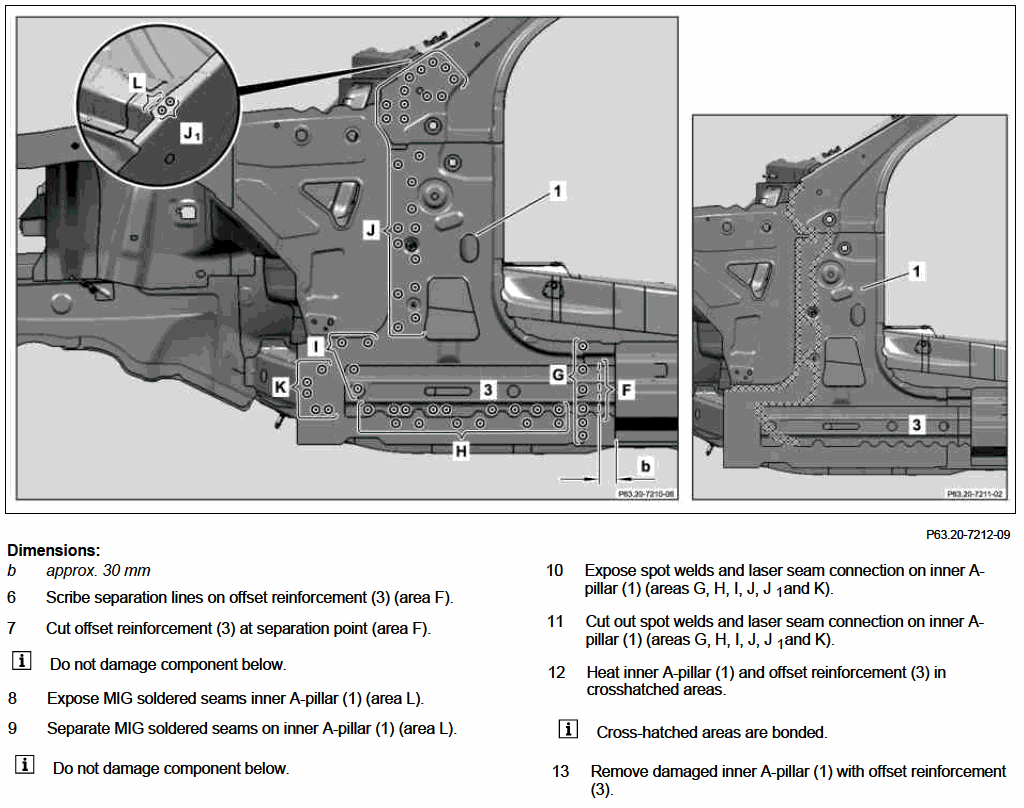

Fig 2: Cutting Out A-Pillar - Steps 6 Through 13
G00551600Courtesy of MERCEDES-BENZ USA

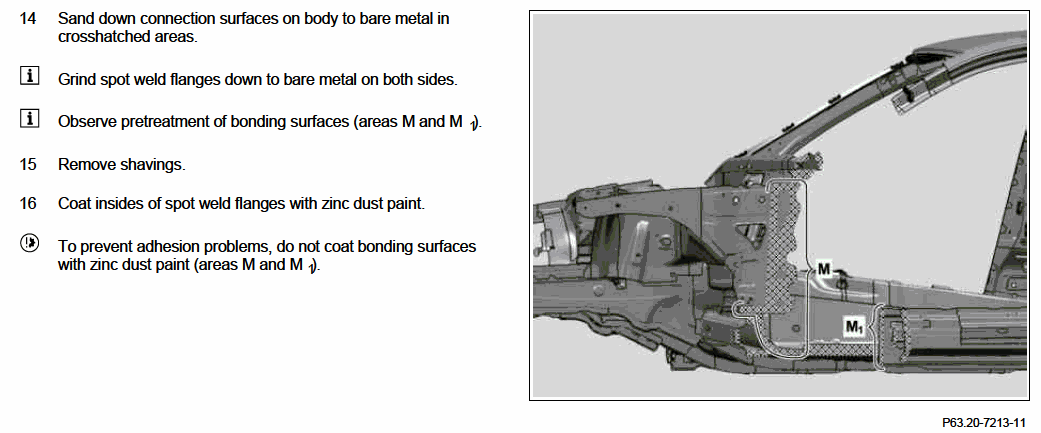

Fig 3: Cutting Out A-Pillar - Steps 14 Through 16
G00551601Courtesy of MERCEDES-BENZ USA
