Prepare rear wheel well section for installation - AR63.10-P-0662-02CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Shown on new part for model 204.0

Scribe separation point on outer rear wheel well (1) (area A).
Scribe separation point along bead offset toward inside (area A).
Cut outer rear wheel well (1) at separation point (area A).
Remove outer rear wheel well section (2).
Dimensions:

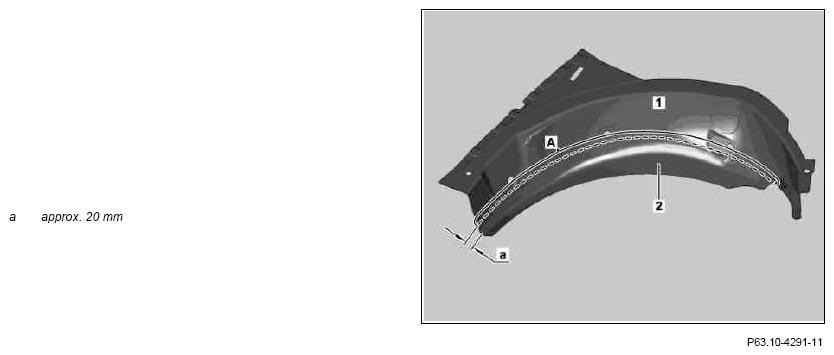

Fig 1: Identifying Bead Offset Dimensions
Courtesy of MERCEDES-BENZ USA
