Prepare outer rear wheel well for installation - AR63.10-P-0670-05CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Repair materials:  Zinc dust paint suitable for spot welding, order number A 000 986 34 42

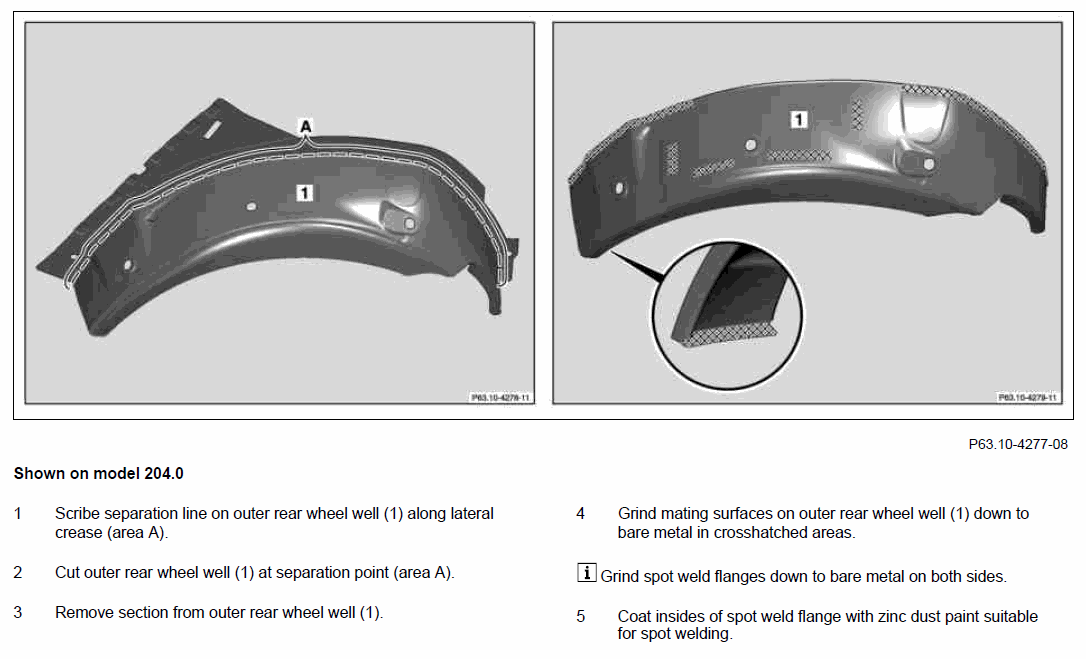

Fig 1: Preparing Outer Rear Wheel Well For Installation
G00544551Courtesy of MERCEDES-BENZ USA
