Separate outer side longitudinal member - AR63.30-P-1050-01CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Spot Weld Milling Cutter
G07753479Courtesy of MERCEDES-BENZ USA

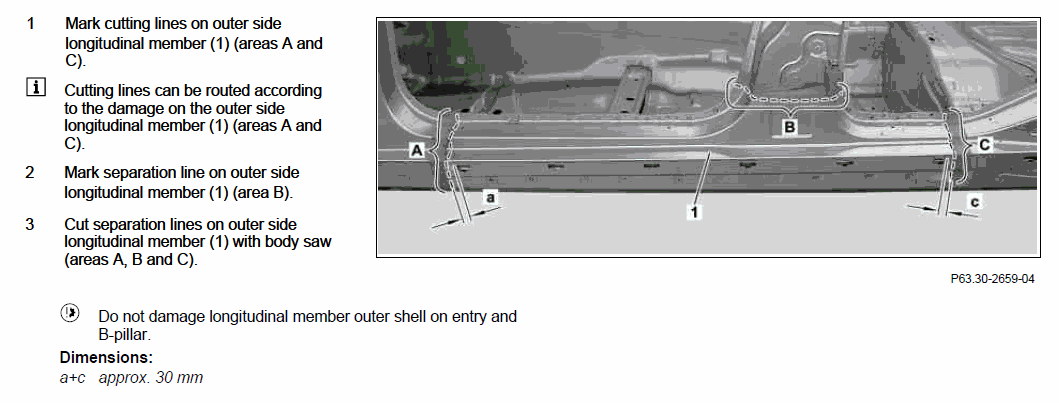

Fig 2: Separating outer side longitudinal member - Steps 1, 2, 3
G00544557Courtesy of MERCEDES-BENZ USA

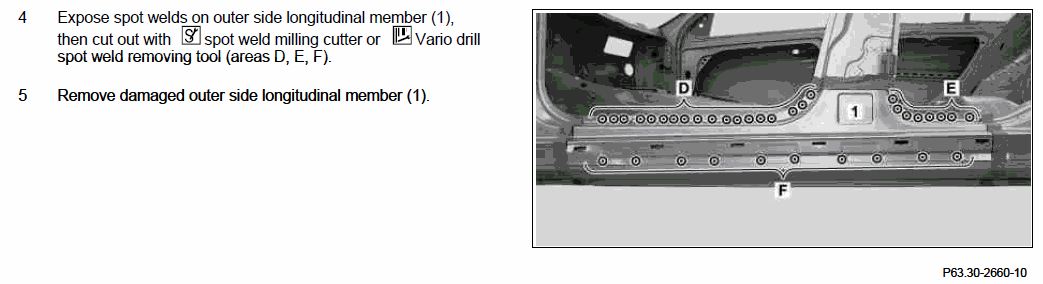

Fig 3: Separating outer side longitudinal member - Steps 4, 5
G00544558Courtesy of MERCEDES-BENZ USA

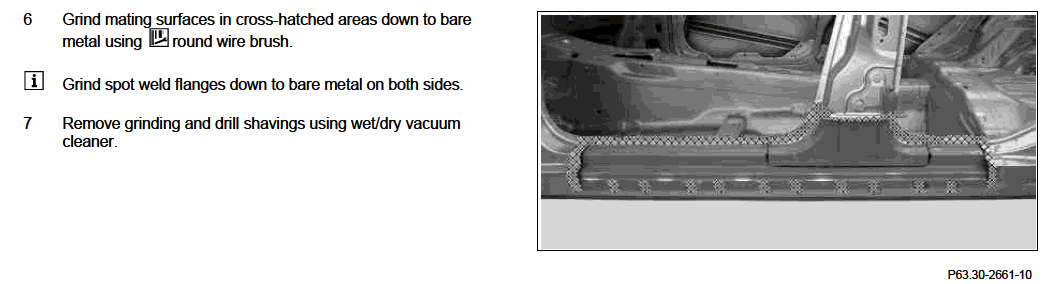

Fig 4: Separating outer side longitudinal member - Steps 6, 7
G00544559Courtesy of MERCEDES-BENZ USA
