Install rear wheel well inner section and weld in - AR63.10-P-0610-03CW

The following steps are shown on model 204.0.

1. Install wheel well inner section (2), loading floor crossmember (3), front spare wheel well locking lug (4), upper rear axle crossmember (5), rear axle crossmember (6), front rear axle crossmember (7), partial rear longitudinal member (10), fit with straightening tool and fix in place.

   On model 204.9 front rear axle spacers and rear axle spacers are required additionally for fitting and installing

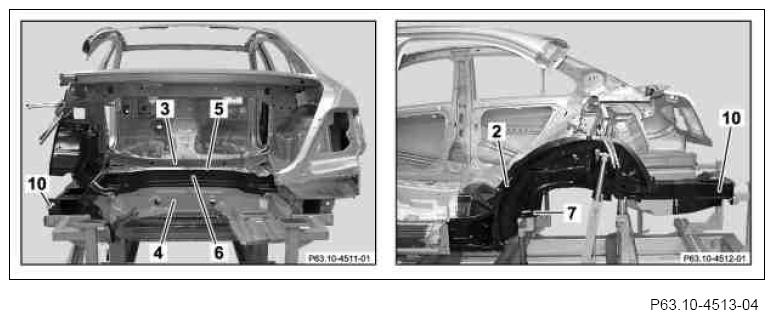

   Fig 1: Identifying Wheel Well Inner Section, Loading Floor Crossmember And Rear Axle Crossmember

   Courtesy of MERCEDES-BENZ USA

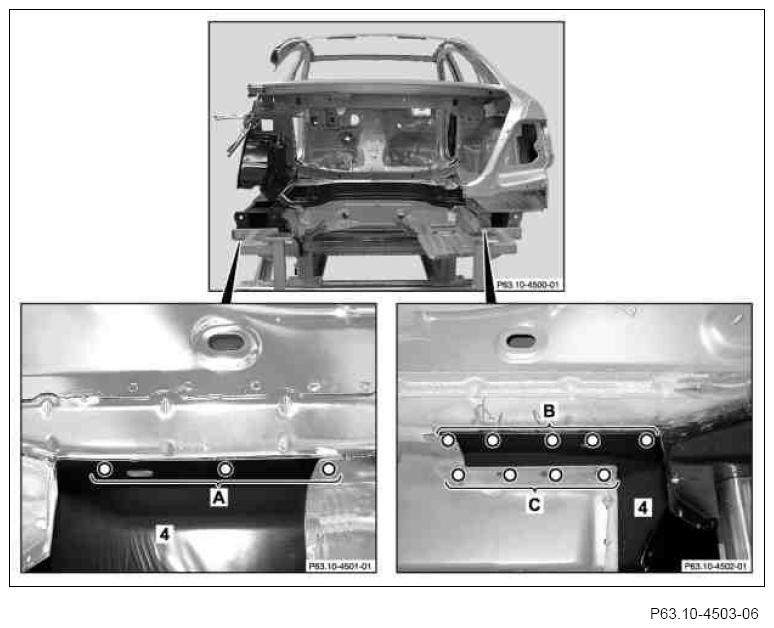

2. Drill Ø 6.7 mm rivet holes in front spare wheel well locking lug (4) (areas A, B and C).

   On model 212.0, 218.3 do not drill rivet holes in front spare wheel well locking lug (4) in areas A, B and C due to construction design.

   Fig 2: Identifying Front Spare Wheel Well Locking Lug Rivet Holes (Areas A, B And C)

   Courtesy of MERCEDES-BENZ USA
   Fig 3: Locating Loading Floor Cross Member Rivet Holes

   Courtesy of MERCEDES-BENZ USA

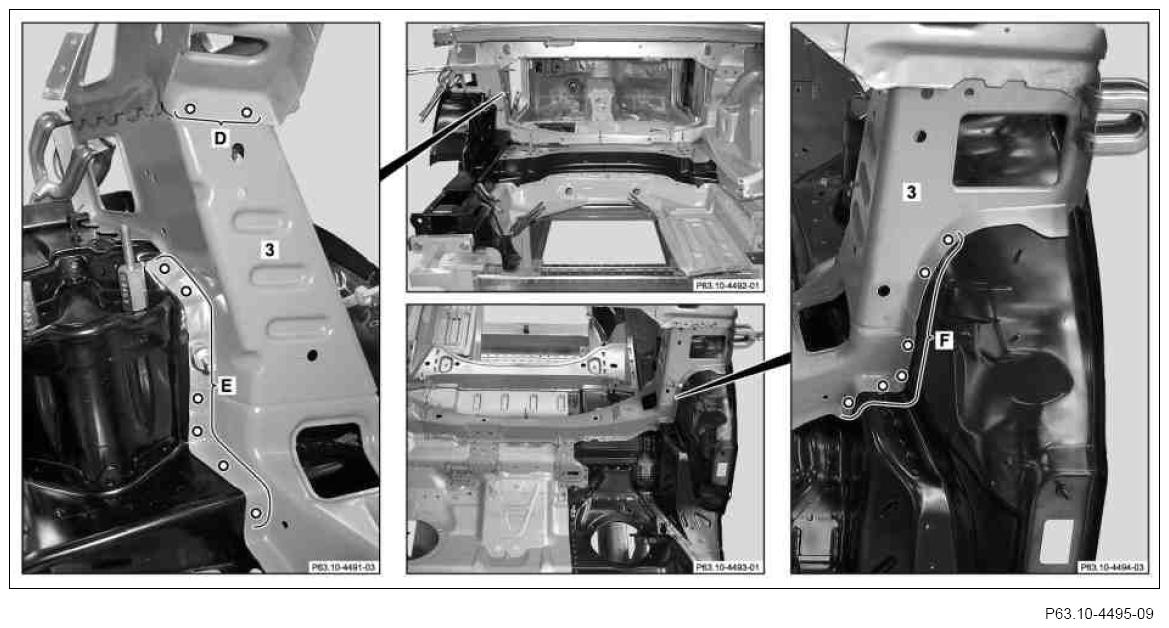

3. Drill Ø 6.7 mm rivet holes in loading floor crossmember (3) (areas D, E and F).

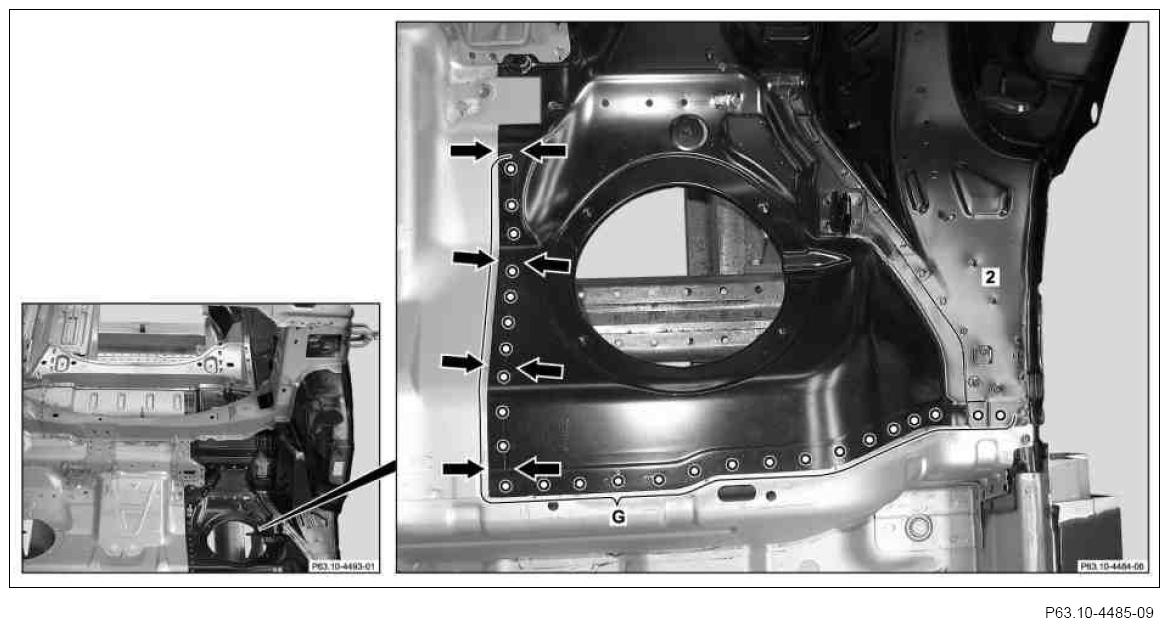

   Fig 4: Identifying Wheel Well Inner Section Rivet Holes & Connecting Flange

   Courtesy of MERCEDES-BENZ USA
4. Drill Ø 6.7 mm rivet holes in wheel well inner section (2) (area G).
5. Scribe connecting flange for wheel well inner section (2) on rear-end floor (arrows).
   Fig 5: Identifying Front Rear Axle Crossmember Rivet Holes (Area H And I)

   Courtesy of MERCEDES-BENZ USA

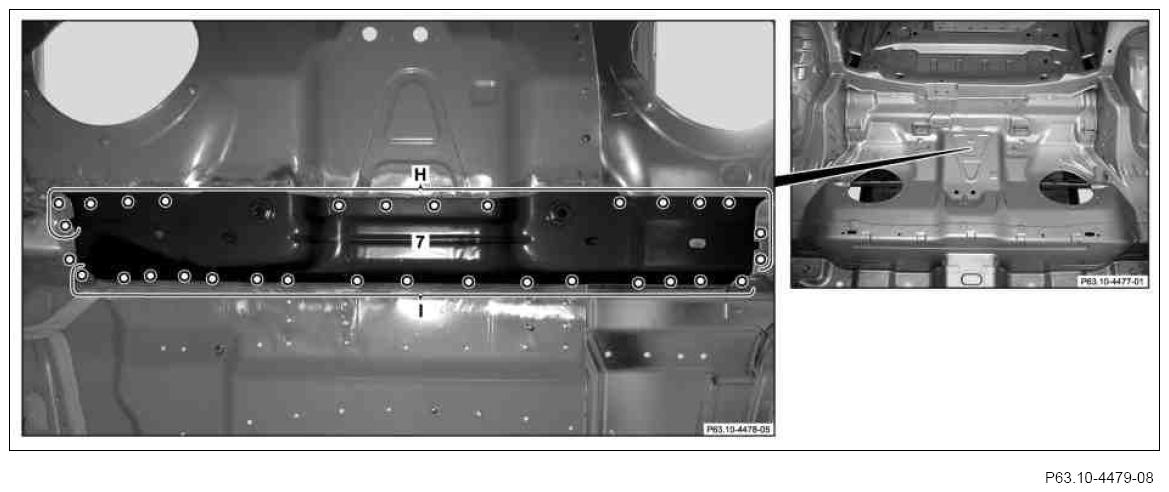

6. Drill Ø 6.7 mm rivet holes in front rear axle crossmember (7) (areas H and I).

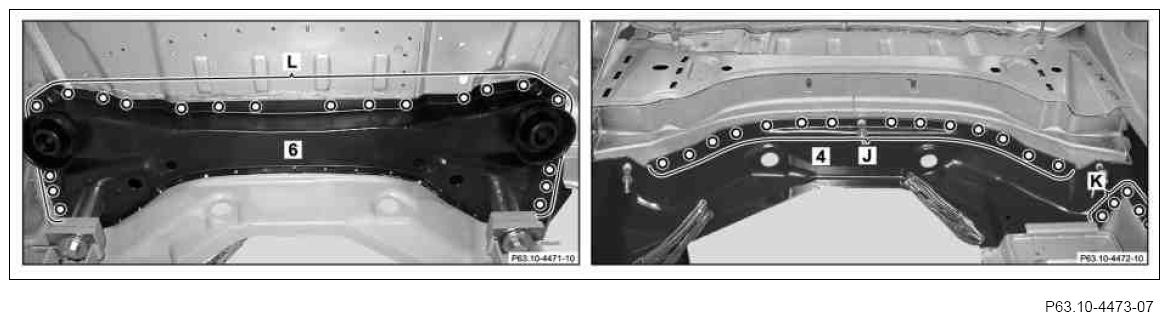

   Fig 6: Identifying Front Spare Wheel Well Locking Lug And Rear Axle Crossmember Rivet Holes (Area J, K And L)

   Courtesy of MERCEDES-BENZ USA
7. Drill Ø 6.7 mm rivet holes in front spare wheel well locking lug (4) and rear axle crossmember (6) (areas J, K and L).

   Due to construction design on model 212 rivet holes are not drilled on spare wheel well locking lug (4) in area K.

8. Drill Ø 6.7 mm rivet holes in loading floor crossmember (3) (areas M, M₁ , N, O₁ and O₂ ).

   On model 212.0, 218.3 the loading floor crossmember (3) is located below the connecting flange (area M₁ ).

9. Remove inner wheel well, loading floor crossmember (3), front spare wheel well locking lug, upper rear axle crossmember, rear axle crossmember, front rear axle crossmember and partial rear longitudinal member.
10. Deburr rivet holes on both sides
    Fig 7: Identifying Loading Floor Crossmember Rivet Holes

    Courtesy of MERCEDES-BENZ USA

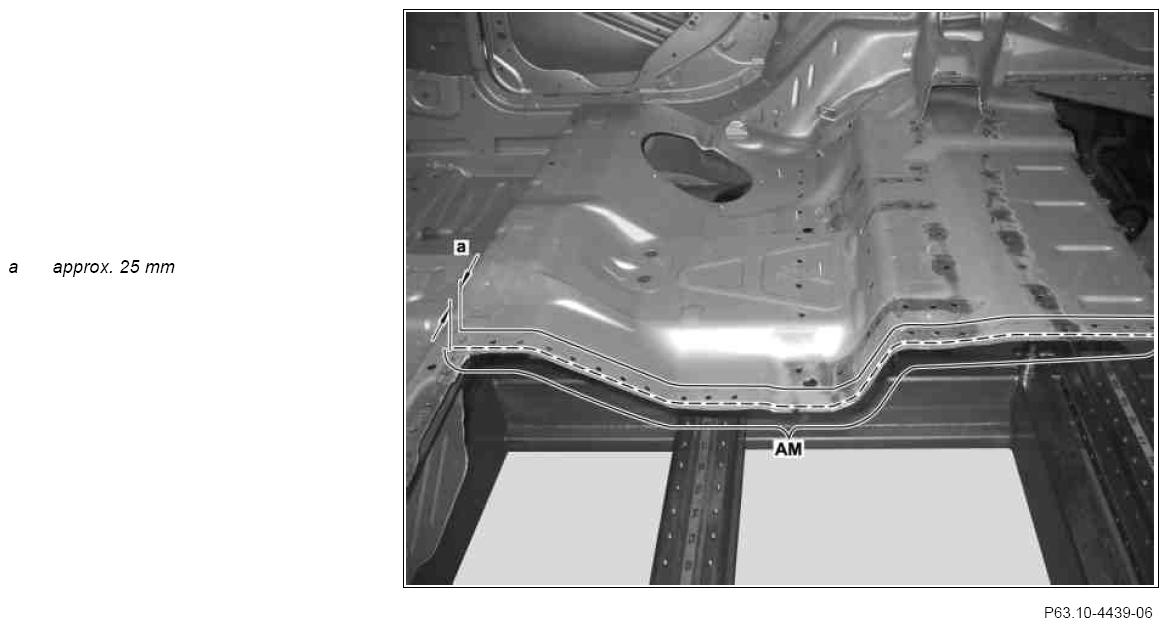

11. Scribe separation points on rear-end floor (area AM).

    Measure connecting flange scribed previously on rear floor.

12. Cut rear-end floor at separation point (area AM).

    Dimensions:

    Fig 8: Identifying Rear-End Floor Separation Point Dimensions

    Courtesy of MERCEDES-BENZ USA
13. Apply 2-component adhesive to rear axle crossmember (6) in crosshatched areas.

    Observe pretreatment of bonding surfaces. Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

14. Install inner wheel well, loading floor crossmember, front spare wheel well locking lug, rear axle crossmember (6), front axle crossmember and partial rear longitudinal member and fix in place.

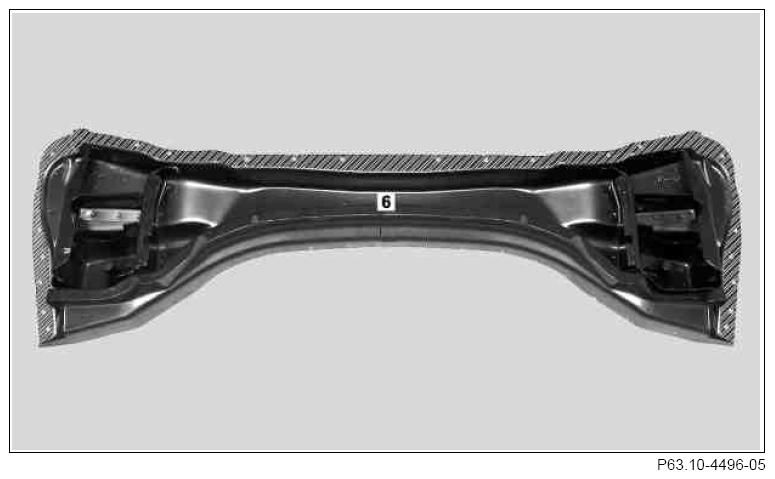

    Fig 9: Identifying Rear Axle Crossmember Adhesive Area

    Courtesy of MERCEDES-BENZ USA

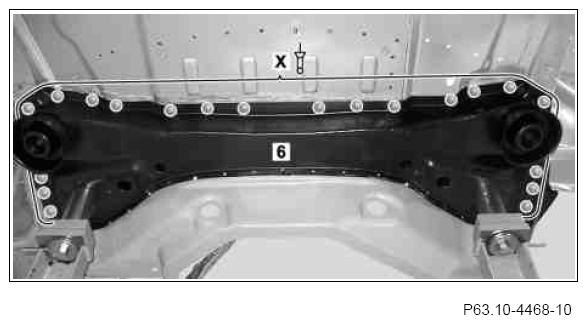

15. Rivet rear axle crossmember (6) with 6.5 X12.5 steel blind rivet (area X).
    Fig 10: Identifying Rear Axle Crossmember Rivet Area (Area X)

    Courtesy of MERCEDES-BENZ USA

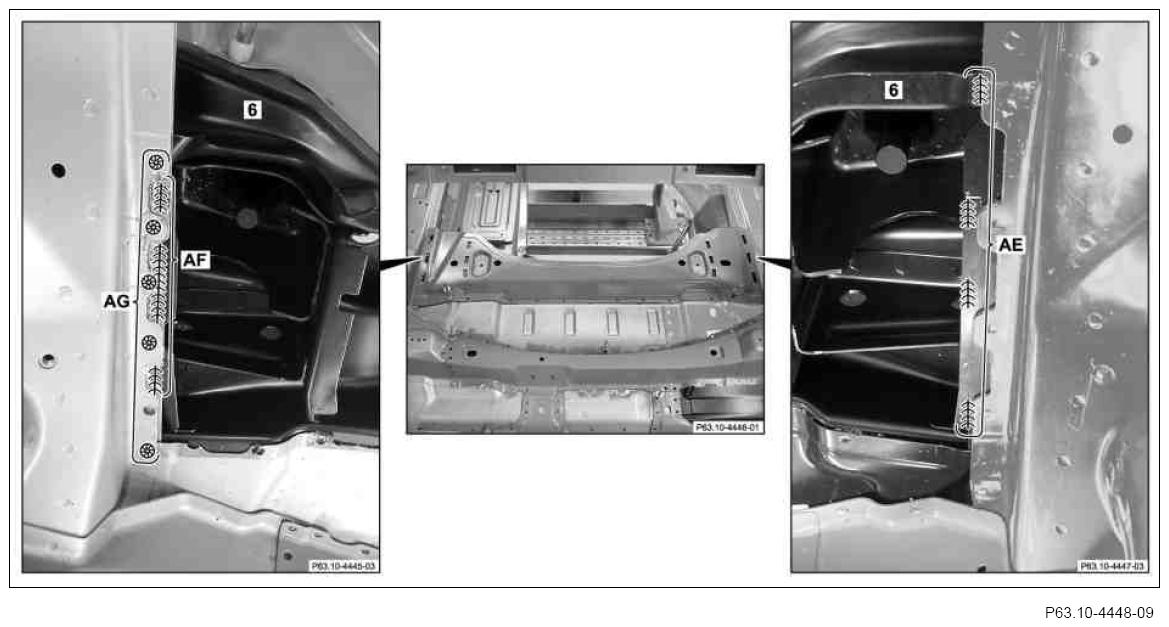

    Fig 11: Identifying Rear Axle Crossmember Welding Areas (Area AE, AF & AG)

    Courtesy of MERCEDES-BENZ USA
16. Rear axle crossmember (6) (areas AE and AF).
17. Rear axle crossmember (6) (area AG).
18. Grind MIG plug welds down flat (area AG).
19. Rivet upper rear axle crossmember (5) with 6.5X12.5 steel blind rivet (area AT).
20. Upper rear axle crossmember (5) (area AS).
21. Upper rear axle crossmember (5) (areas AV and VA).
22. Rear axle crossmember (6) (areas AW and AX).

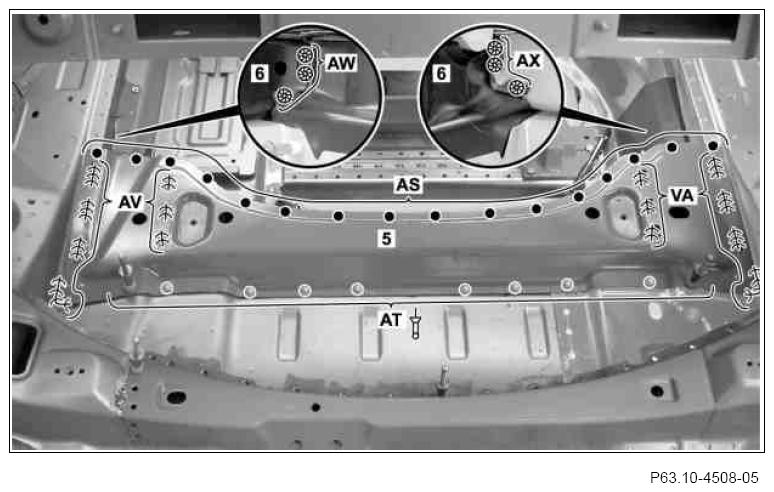

    Fig 12: Identifying Upper Rear & Rear Axle Crossmember Welding & Riveting Areas

    Courtesy of MERCEDES-BENZ USA
    Fig 13: Identifying Front Rear Axle Crossmember Rivet Areas

    Courtesy of MERCEDES-BENZ USA

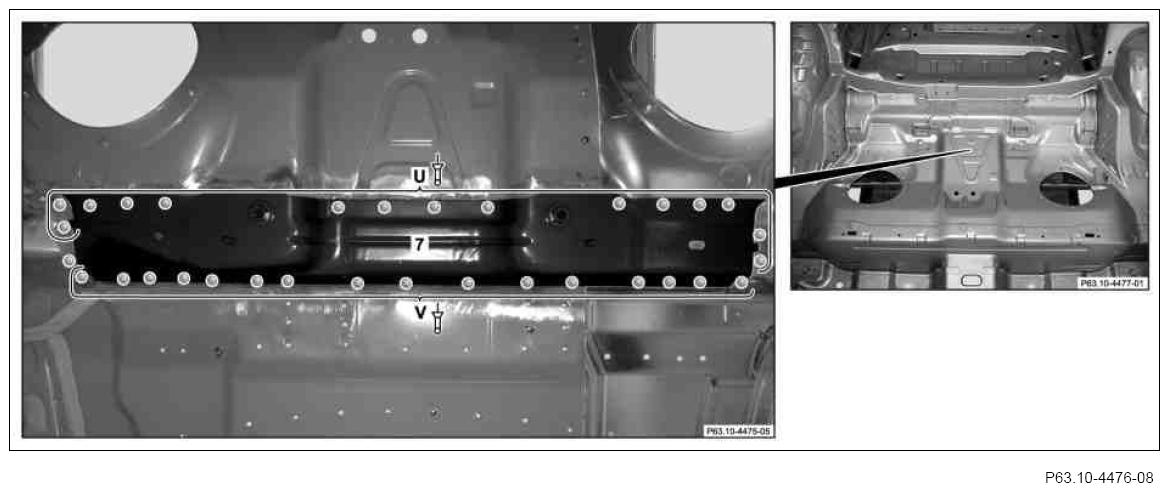

23. Rivet front rear axle crossmember (7) with 6.5 X12.5 steel blind rivet (areas U and V).

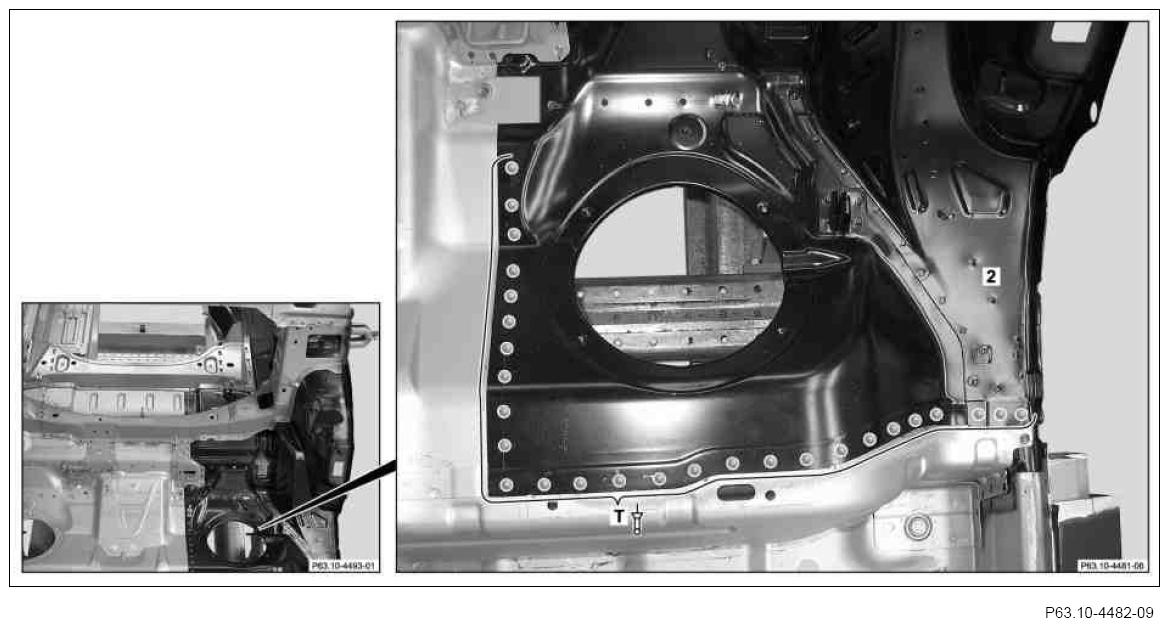

    Fig 14: Identifying Wheel Well Inner Section Rivet Area

    Courtesy of MERCEDES-BENZ USA
24. Rivet wheel well inner section (2) with 6.5 X12.5 steel blind rivet (area T).

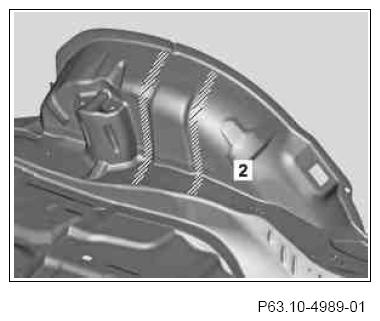

25. Apply 2-component adhesive to wheel well inner section (2) in crosshatched areas.

    On model 218.3.

    Observe pretreatment of bonding surfaces. Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

    Fig 15: Identifying Wheel Well Inner Section Adhesive Area

    Courtesy of MERCEDES-BENZ USA
26. Rivet loading floor crossmember (3) with 6.5X12.5 steel blind rivet (areas Y, Y₁ , Z, Z₁ and Z₂ ).

    On model 212.0 the loading floor crossmember (3) is located below the connecting flange (area Y₁ ).

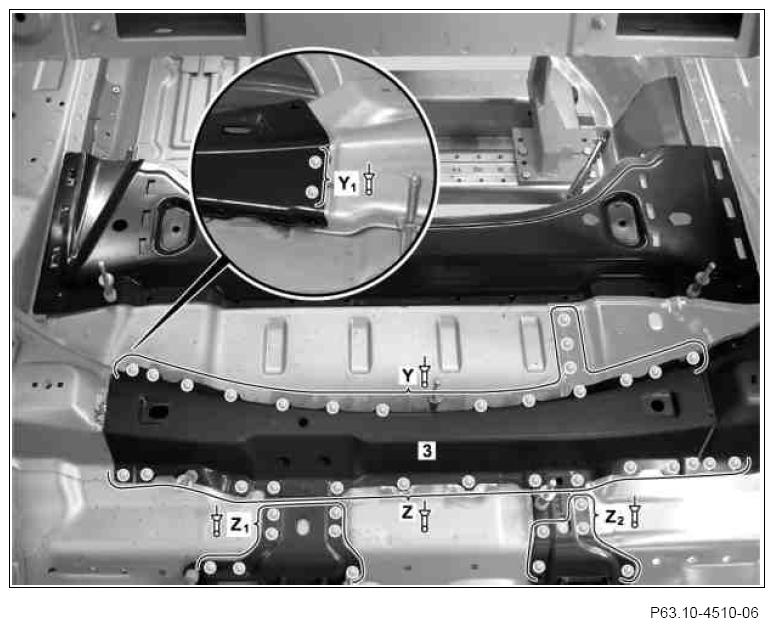

    Fig 16: Identifying Loading Floor Crossmember Riveting Area

    Courtesy of MERCEDES-BENZ USA

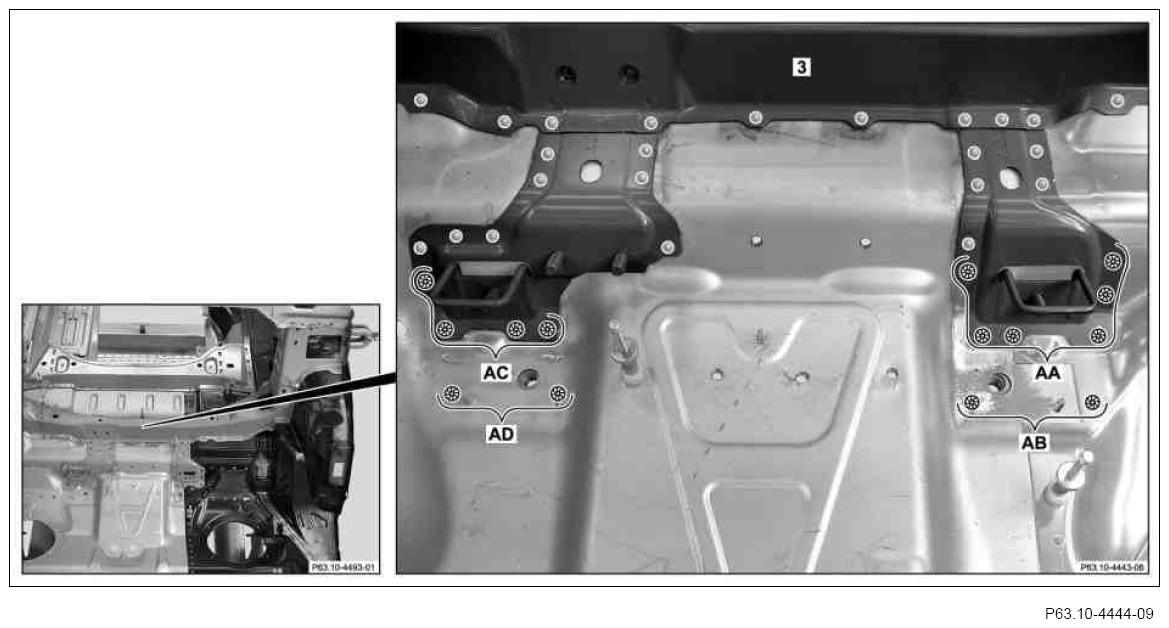

    Fig 17: Identifying Loading Floor Crossmember Weld Areas

    Courtesy of MERCEDES-BENZ USA
27. Drill MIG plug welds on loading floor crossmember (3) and vehicle floor (areas AA, AB, AC and AD).
28. Loading floor crossmember (3) (areas AA, AB, AC and AD).
29. Grind MIG plug welds down flat (areas AB and AD).

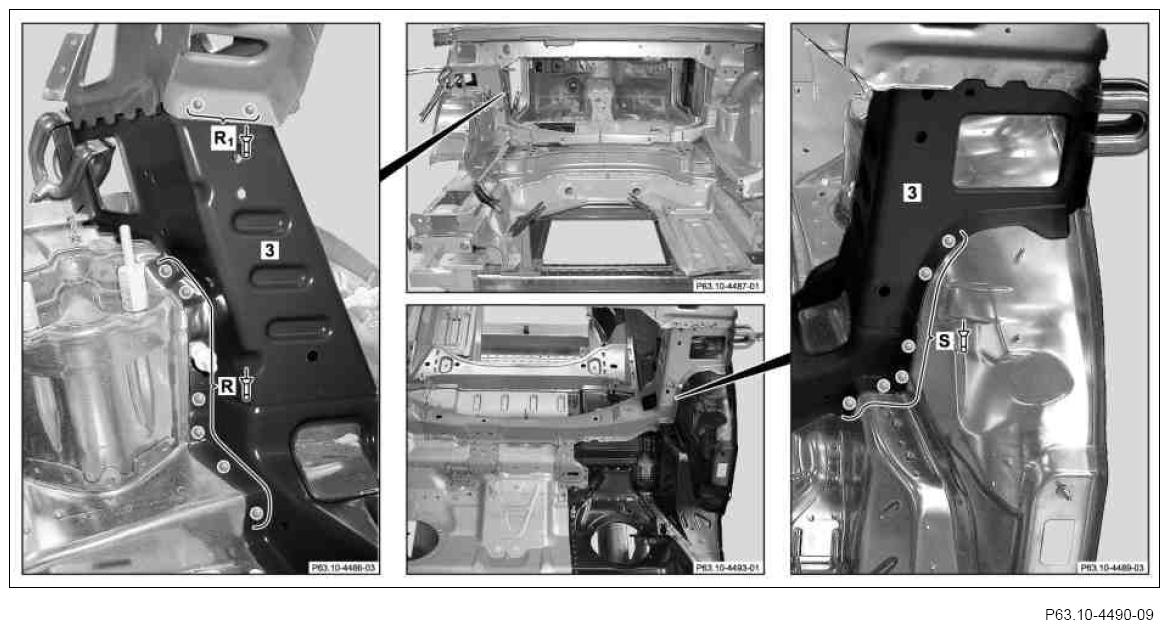

    Fig 18: Identifying Loading Floor Crossmember Steel Blind Rivet Areas

    Courtesy of MERCEDES-BENZ USA
30. Rivet loading floor crossmember (3) with 6.5 X12.5 steel blind rivet (areas R, R₁ and S).

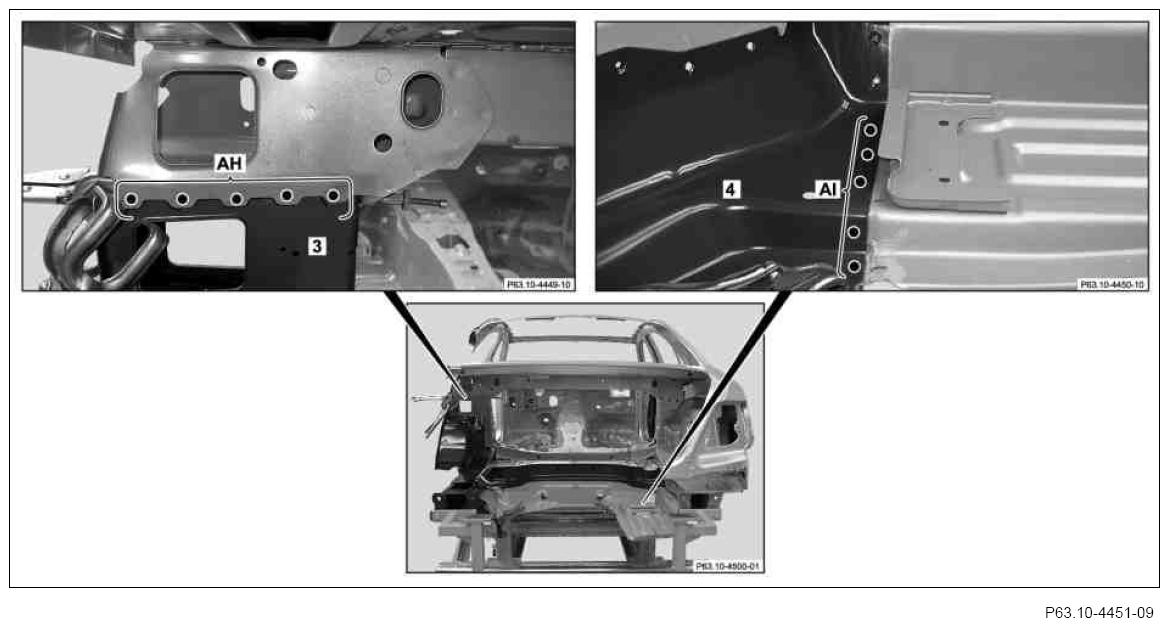

    Fig 19: Identifying Loading Floor Crossmember And Front Spare Wheel Well Locking Lug Weld Areas

    Courtesy of MERCEDES-BENZ USA
31. Loading floor crossmember (3) and front spare wheel well locking lug (4) (areas AH and AI).
32. Loading floor crossmember (3) (area AJ).
33. Wheel well inner section (2) (area AK).

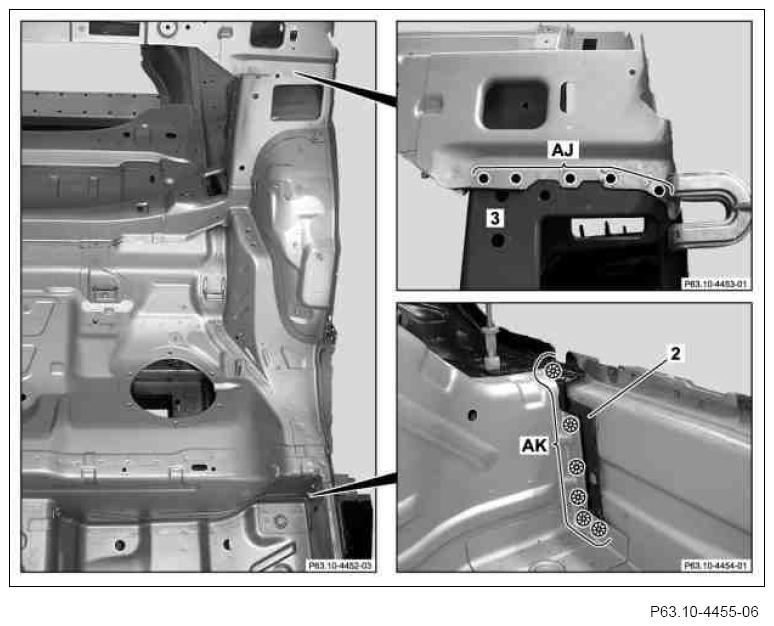

    Fig 20: Identifying Loading Floor Crossmember & Wheel Well Inner Section Weld Areas

    Courtesy of MERCEDES-BENZ USA
34. Rivet front spare wheel well locking lug (4) with 6.5X12.5 steel blind rivet (areas W and X₁ ).

    On model 212.0, 218.3 rivets are not required on front spare wheel well locking lug (4) in area X₁ due to construction design.

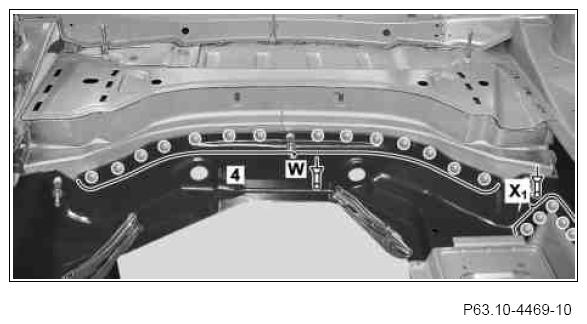

    Fig 21: Identifying Front Spare Wheel Well Locking Lug Rivet Areas

    Courtesy of MERCEDES-BENZ USA
35. Rivet front spare wheel well locking lug (4) with 6.5X12.5 steel blind rivet (areas P and Q).

    On model 212.0, 218.3 rivets are not required on front spare wheel well locking lug (4) in areas P and Q due to construction design.

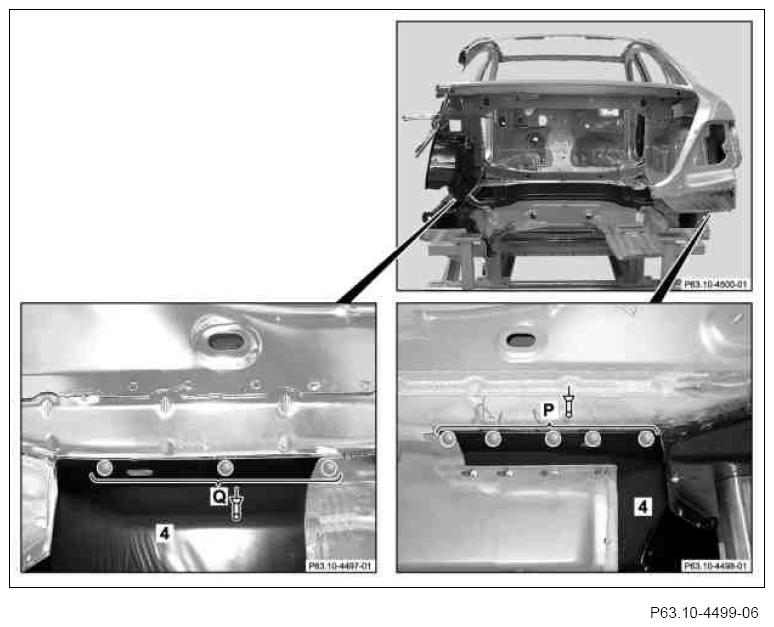

    Fig 22: Identifying Front Spare Wheel Well Locking Lug Rivet Areas

    Courtesy of MERCEDES-BENZ USA
    Fig 23: Identifying Brake Line Brackets Weld Areas

    Courtesy of MERCEDES-BENZ USA

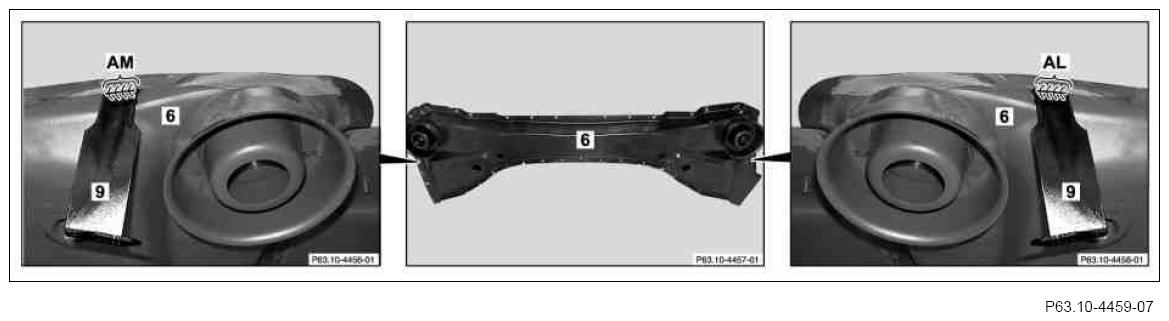

36. Brake line brackets (9) on rear axle crossmember (6) (areas AL and AM).

    Only on model 204.0/2.

    It is only necessary to install the rear axle mount reinforcement first on model 204.9.

    On model 212, 218.3 the brake line brackets (9) are already present on the new part. Position new brake line bracket (9) in same position as old brake line bracket.

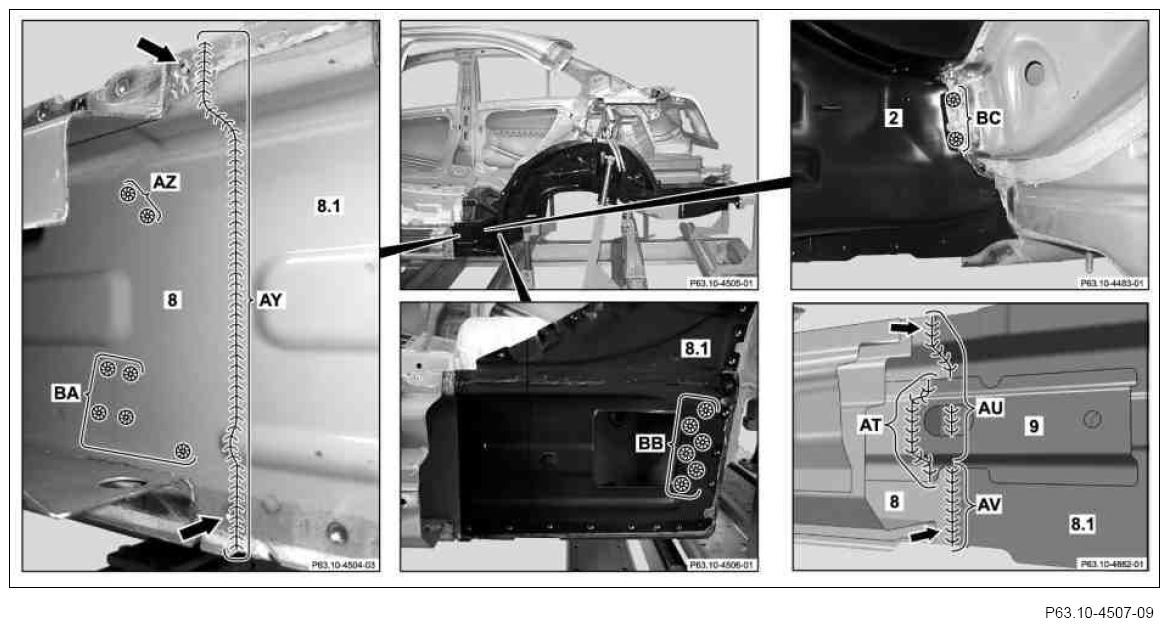

    Fig 24: Identifying Longitudinal Members & Wheel Well Inner Section Welding Areas

    Courtesy of MERCEDES-BENZ USA

    Perform operation steps 37 and 38 only on model 204.

37. Inner longitudinal member (8) and longitudinal member section (8.1) (area AY).

    Inert gas weld in intervals, allow to cool down in between to minimize heat distortion (area AY).

38. Inner longitudinal member (8) and longitudinal member section (8.1) (areas AZ, BA and BB).

    Perform operation step 39 only on model 212.0, 218.3.

39. Inner longitudinal member (8), longitudinal member section (8.1) and offset reinforcement (9) (areas AT, AU and AV).

    Inert gas weld inner longitudinal member (8) and longitudinal member section (8.1) in area AU at inside.

40. Wheel well inner section (2) (area BC).
41. Grind inert gas weld on mating surfaces down flat (arrow).

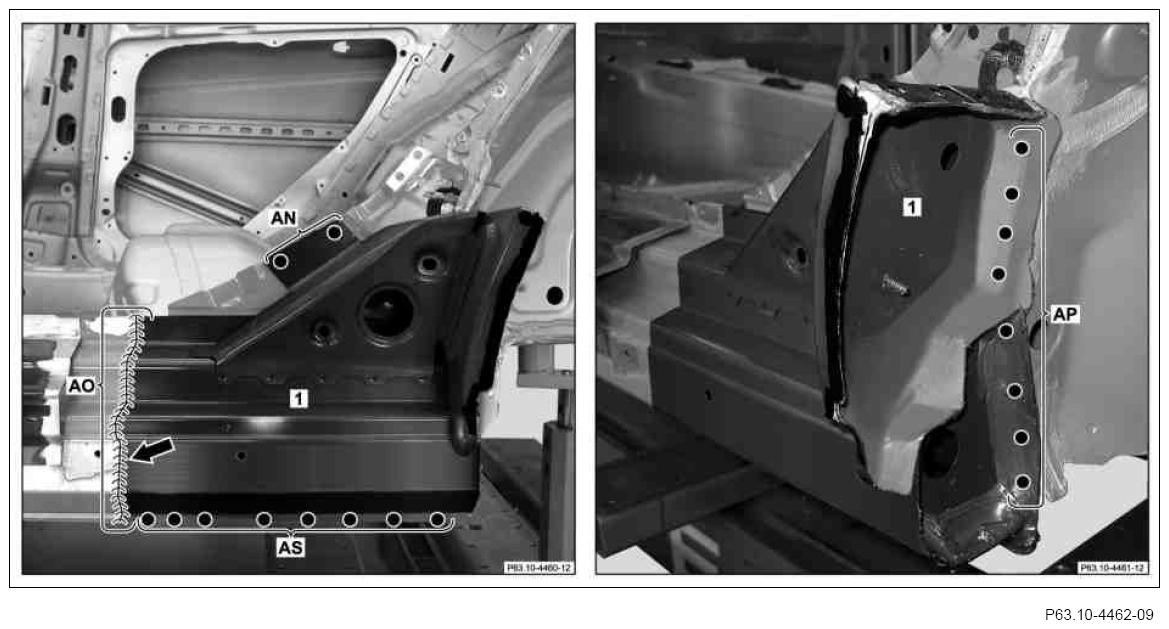

    Fig 25: Identifying Outer Longitudinal Member Welding Areas (Area AN, AP And AS)

    Courtesy of MERCEDES-BENZ USA
42. Install, fit and fix in place outer longitudinal member (1).
43. Outer longitudinal member (1) (area AO).

    Inert gas weld in intervals, allow to cool down in between to minimize heat distortion (area AO).

44. Outer longitudinal member (1) (areas AN, AP and AS).
45. Grind inert gas weld on mating surfaces down flat (arrows).
    Fig 26: Identifying Loading Floor Crossmember Welding & Grinding Areas

    Courtesy of MERCEDES-BENZ USA

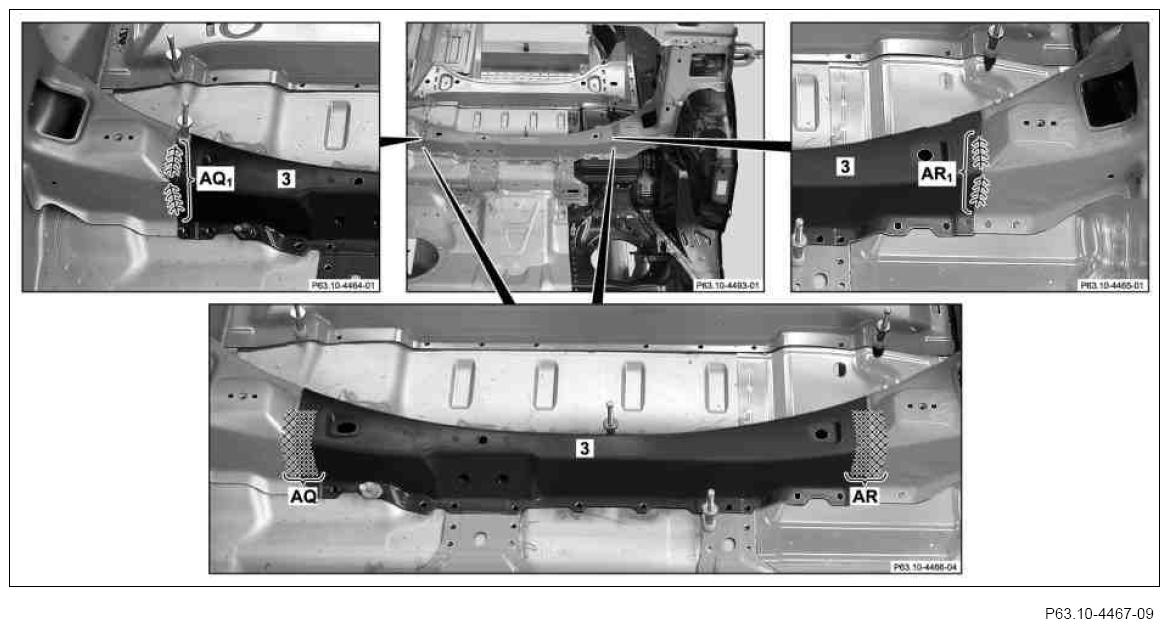

46. Grind loading floor crossmember (3) down to bare metal in crosshatched areas (areas AQ and AR).
47. Loading floor crossmember (3) (areas AQ₁ and AR₁ ).
48. Clean all weld joints.
49. Remove shavings and drill chips.
