Install outer rear wheel well - AR63.10-P-0670-06CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/3

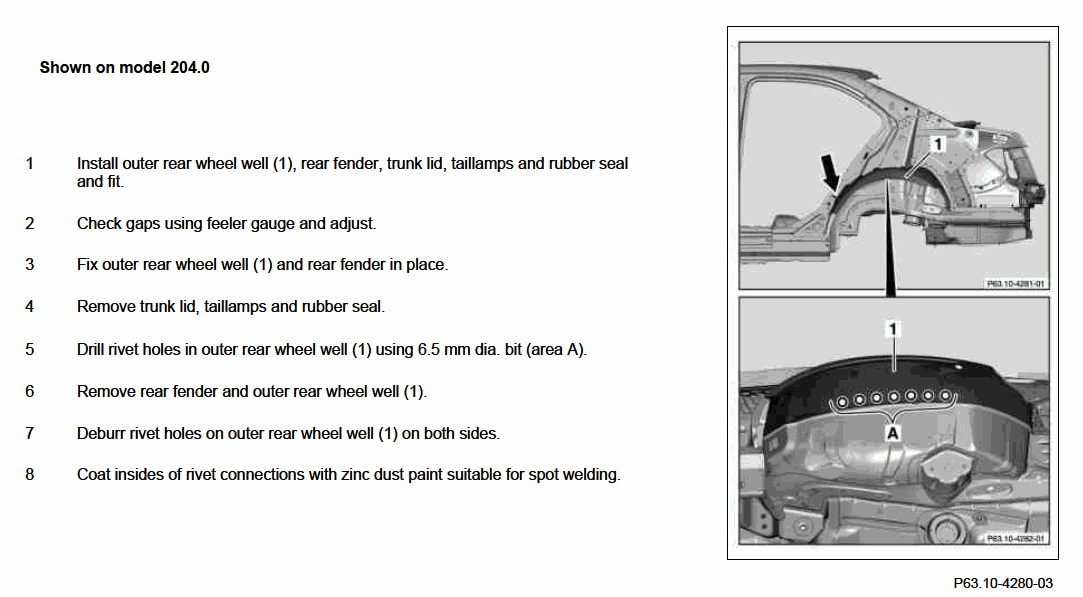

Fig 1: Installing Outer Rear Wheel Well - Steps 1, 2, 3, 4, 5, 6, 7, 8

Courtesy of MERCEDES-BENZ USA

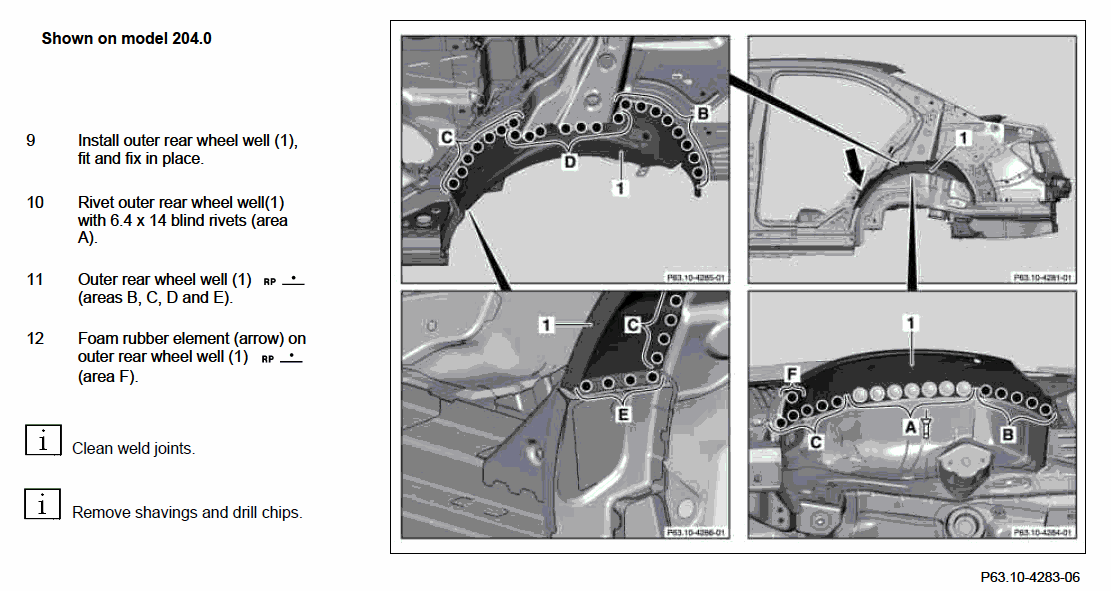

Fig 2: Installing Outer Rear Wheel Well - Steps 9, 10, 11, 12

Courtesy of MERCEDES-BENZ USA

Steps 13 through 20 for Black Series only:

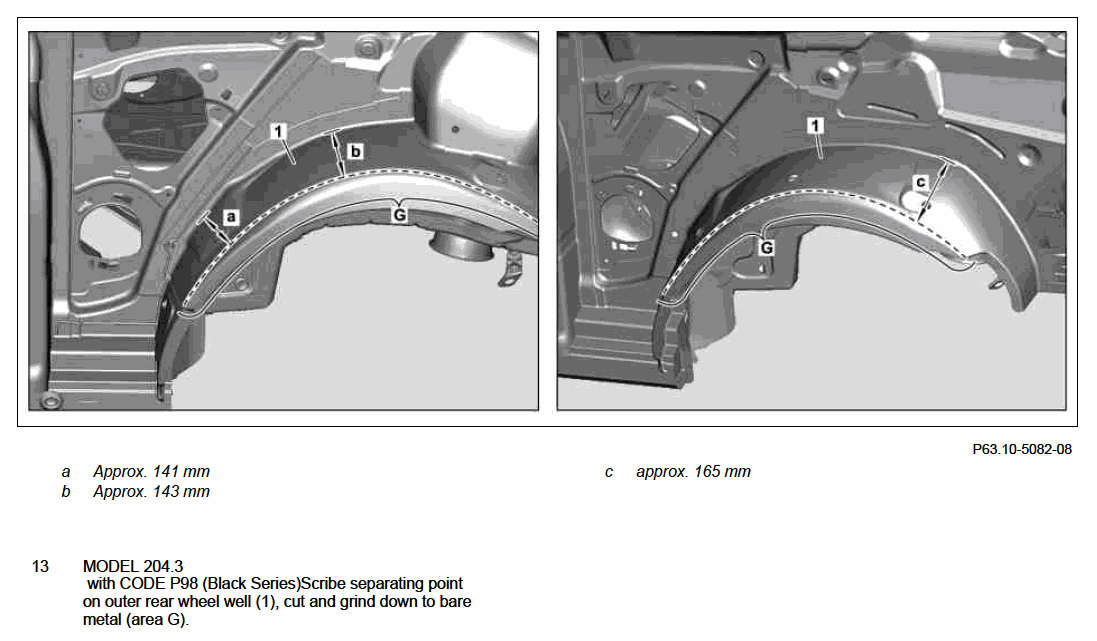

Fig 3: Installing Outer Rear Wheel Well - Step 13 (Black Series Only)

Courtesy of MERCEDES-BENZ USA

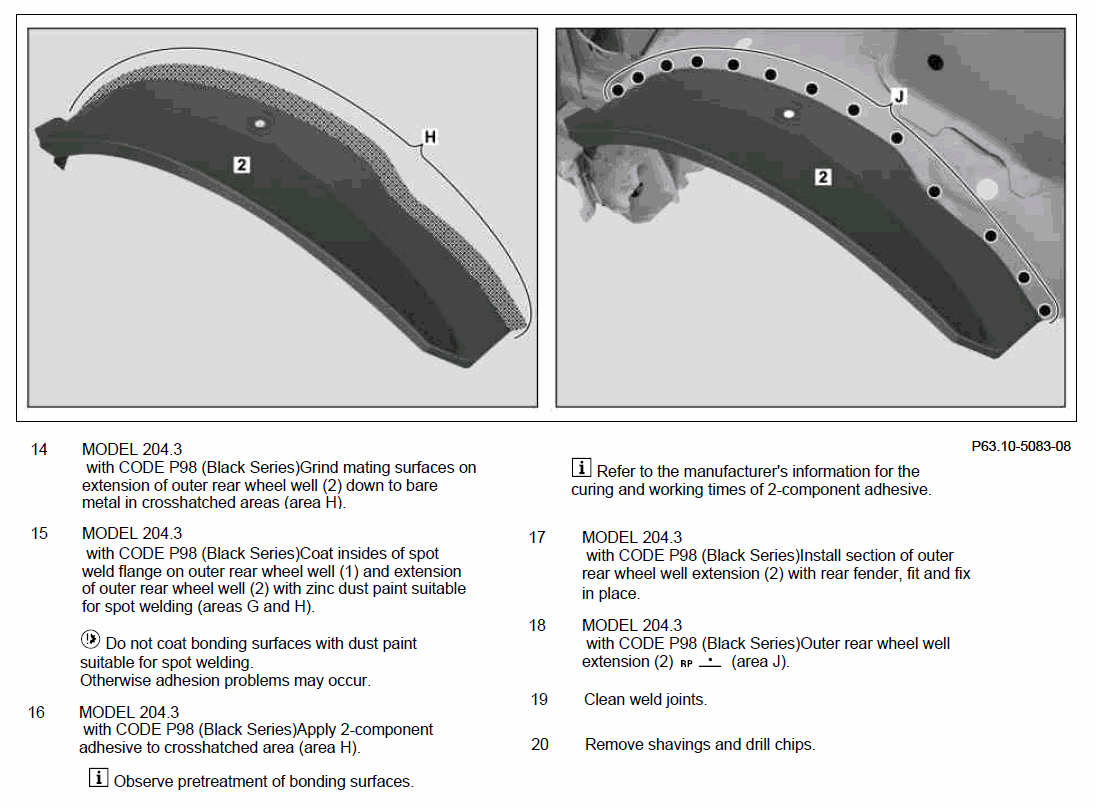

Fig 4: Installing Outer Rear Wheel Well - Steps 14, 15, 16, 17, 18, 19, 20 (Black Series Only)

Courtesy of MERCEDES-BENZ USA
